Outil de diagnostic du système moteur automobile OBD2, contrôle OBD, multilingue

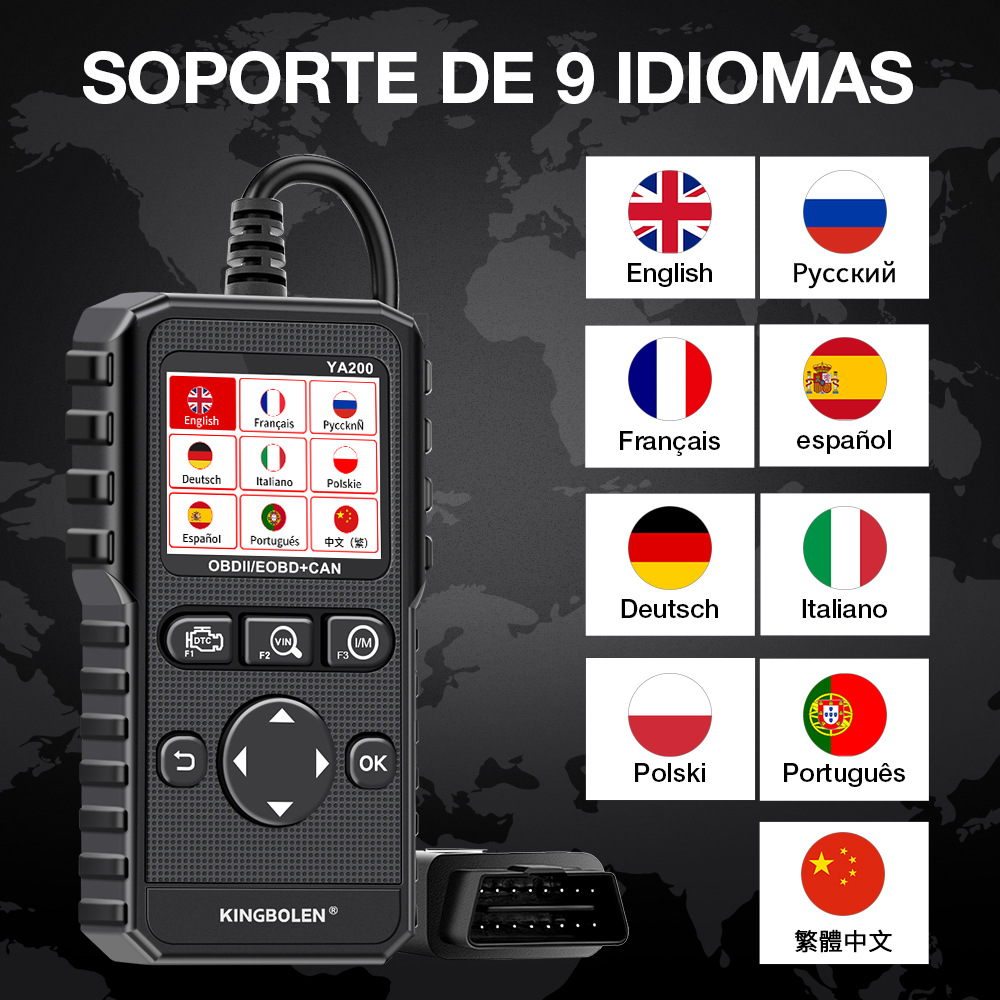

9 kinds of Languages supported

English, French, Russian, German, Italian, Spanish, Portuguese, Polish, Traditional Chinese

KINGBOLEN YA200 support Complete OBD2 Function

1. Reading Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erasing Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors.

3. Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6. View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7. O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8. On-Board Monitor Test

Retrieves and displays test results for emission-related powertrain components and systems.

9. Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10. Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability
Accurate Real-time Data Flow, supports Graphical Recording and Playback

I/M Readiness

Check that the vehicle's emissions system is functioning properly

KINGBOLEN YA200 support Real-time Voltage Test

It can display the voltage of OBD diagnostic socket and the status after evaluation. It mainly feeds back the current voltage condition of the diagnostic socket or the battery condition.

* If the voltage of the battery is lower than 12V, it is recommended to go to the professional tester to diagnose the current battery condition.

One-click design makes diagnosis easier and faster

1. One-click I/M Readiness:

Just click a button to query I/M Readiness

2. One-click DTC

Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC (Not every DTC with possible causes reason)

3. One-click VIN

Displays the vehicle's identification number.

KINGBOLEN YA200 support Screenshot Function

you can take screenshots during the use of the YA200 code scanner to record the diagnosis results at any time.

Just press the up and down keys for 3s-5s to take a screenshot, which can store up to 10 pictures.

KINGBOLEN YA200 support Lifetime Free Update

KINGBOLEN YA200 OBD2 comes with Lifetime Free Update, which can be upgraded simply by connecting to a PC with a USB cable.

KINGBOLEN YA200 Code Reader meets the following protocols

1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

KINGBOLEN YA200 support 10,000 + car models

American (USA) car:

Compatible with Standard OBD2 Cars from 1996 to Now:

For Chrysler, for Ford, for GM, for Jeep...

European car:

Compatible with Standard OBD2 Cars from 2003 to Now:

For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for VW, for Ford, for Jaguar...

France Car after 2006:

for Citroen, for Fiat, for Renault, for Peugeot

Not Support for Renault Clio 2/Megane/Dacia Logan..

Asian car

Compatible with Standard OBD2 Cars from 2007 to Now:

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota....

Chinese car:

Compatible with Standard OBD2 Cars from 2009 to Now:

for BYD, for Chery, for Geely, for Great Wall, for Karry...

Please note: KINGBOLEN YA200 is only for 12V 16PIN OBD2/EOBD Car engine diagnosis.

* Does not support Trucks, semi-trailers, dump trucks, tractors, hybrids, electric vehicles and other commercial vehicles.

Technical parameters of KINGBOLEN YA200

1. Display: 320 x 240 pixel display with TFT color screen.
2. Operating Temperature: -10°C to 40°C (14°F to 104°F).
3. Storage Temperature: -20°C to 70°C (-4°F to 158°F).
4. External Power: 9.0V to 16.0V power provided via vehicle battery.
5. Product Size: 137 × 79 × 22 mm (5.4"×3.1"×0.9").

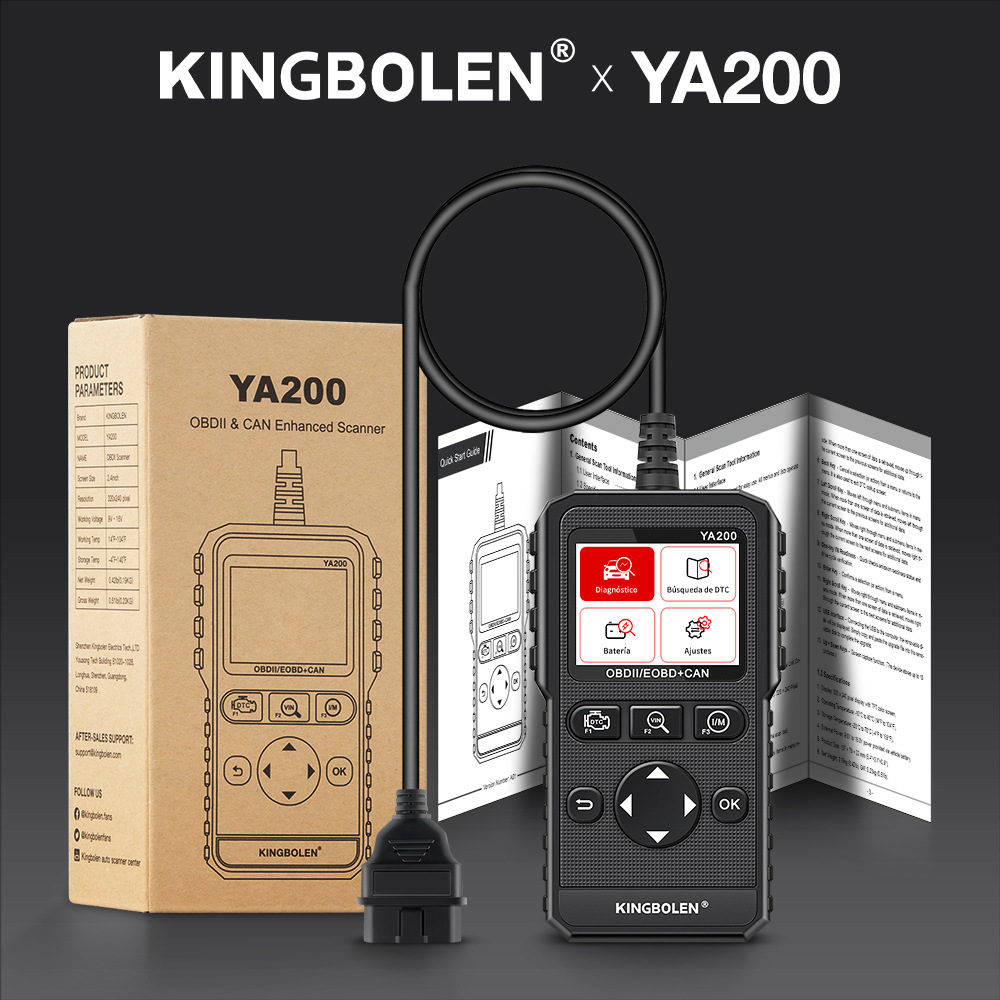

Packing List of KINGBOLEN YA200

1PC * KINGBOLEN YA200 Code Reader
1PC * USB Cable
1PC * User Manual
1PC * Carton box
