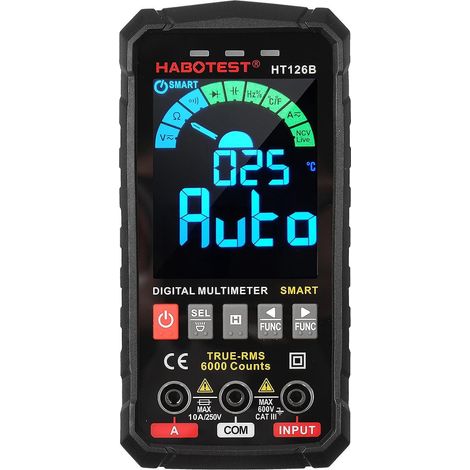

HABOTEST HT126B Smart Digital Multimeter 6000 Counts True RMS Auto-ranging VA Color Screen Electrica

This multifunctional tool features the function of multimeter, temperature meter, electrical test pen and flashlight. With digital screen for easy reading and compact size for easy carry, it can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems.

[Multifunction Multimeter] Digital multimeter, temperature meter and electrical test pen 3 in 1, can be widely used in electrical testing, temperature measuring, automotive repairing and more household/ industrial electrical problems.

[Auto/ Manual Ranging] High accuracy, wide range, True RMS, 6000 counts, auto recognition or manual selection. It can test AC/ DC voltage, AC/ DC current, resistance, capacitance, diode, frequency, continuity and temperature.

[Temperature Measurement] Comes with a thermocouple, this digital multimeter features -40~1000℃ (-40~1832℉) wide measuring range for industrial temperature measuring, which has quick response and brings accurate data.

[NCV Induction] Bring the NCV part close to the measured object, when a nearby AC voltage is detected, the red LED light will flash and the buzzer will sound quickly to indicate. Non-contact design makes it very safe and convenient.

[Digital Screen & Flashlight] LCD screen with backlight (HT126A) or VA color screen (HT126B) greatly enhances reading experience. Flashlight to illuminate the measured object without fear of dark environments.

[Battery Powered & Small Size] Powered by 4 AAA batteries (not included), auto shutdown after about 15min idle time to save power. Ergonomic design, compact size, comes with a storage bag for easy carry.

[Silicone Sheath Protection] Covered by silicone sheath, effectively preventing the multimeter from falling and scratches, better protecting the multimeter.

Note:

1. Please read the user manual carefully before use.

2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

Specifications:

Model: HT126A/ HT126B (Optional)

Material: ABS

Screen: LCD Backlight Display (HT126A)/ VA Color Screen (HT126B)

True RMS: Yes

Counts: 6000

Max. Voltage: 600V DC or AC

Max. Current: 10A DC or AC

Max. Capacitance: 60mF

Max. Resistance: 60MΩ

Max. Frequency: 10MHz

Temperature Measuring Range: -40~1000℃/ -40~1832℉

Diode: Yes

Continuity: Yes

NCV Induction: Yes

Auto Shutdown: about 15min

Power Supply: 4 * 1.5V AAA Battery (NOT included)

Operating Environment: Temperature 0~40℃, Humidity

Storage Environment: Temperature -10~60℃, Humidity

Altitude:

Item Size: 145 * 70 * 25mm / 5.71 * 2.76 * 0.98in

Item Weight (without batteries): 184g / 6.48oz

Package Size: 17.5 * 10 * 5.5cm / 6.89 * 3.94 * 2.17in

Package Weight: 367g / 12.94oz

Package List:

1 * Smart Digital Multimeter

1 * Thermocouple

2 * Measuring Pen

1 * User Manual (English)

1 * Storage Bag
