➡️ Product Overview

Parts: 8x50 with 5x80 Conversional PZ2, 100 pcs, KRX-085080 KLIMAS.

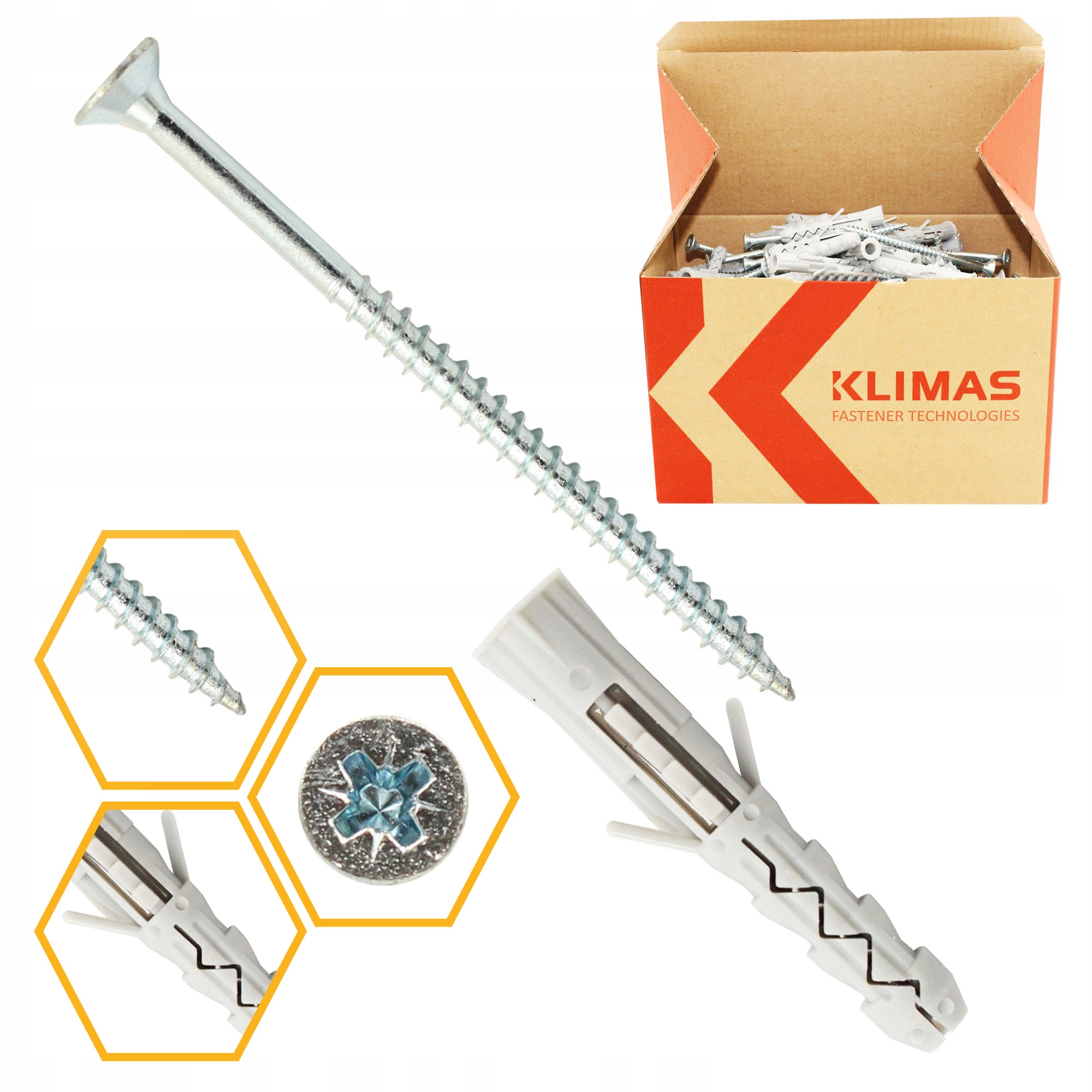

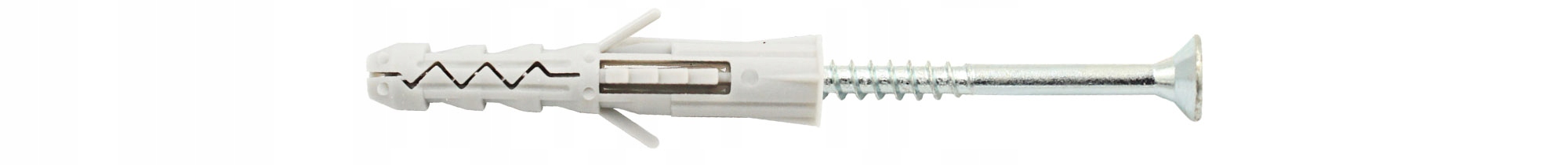

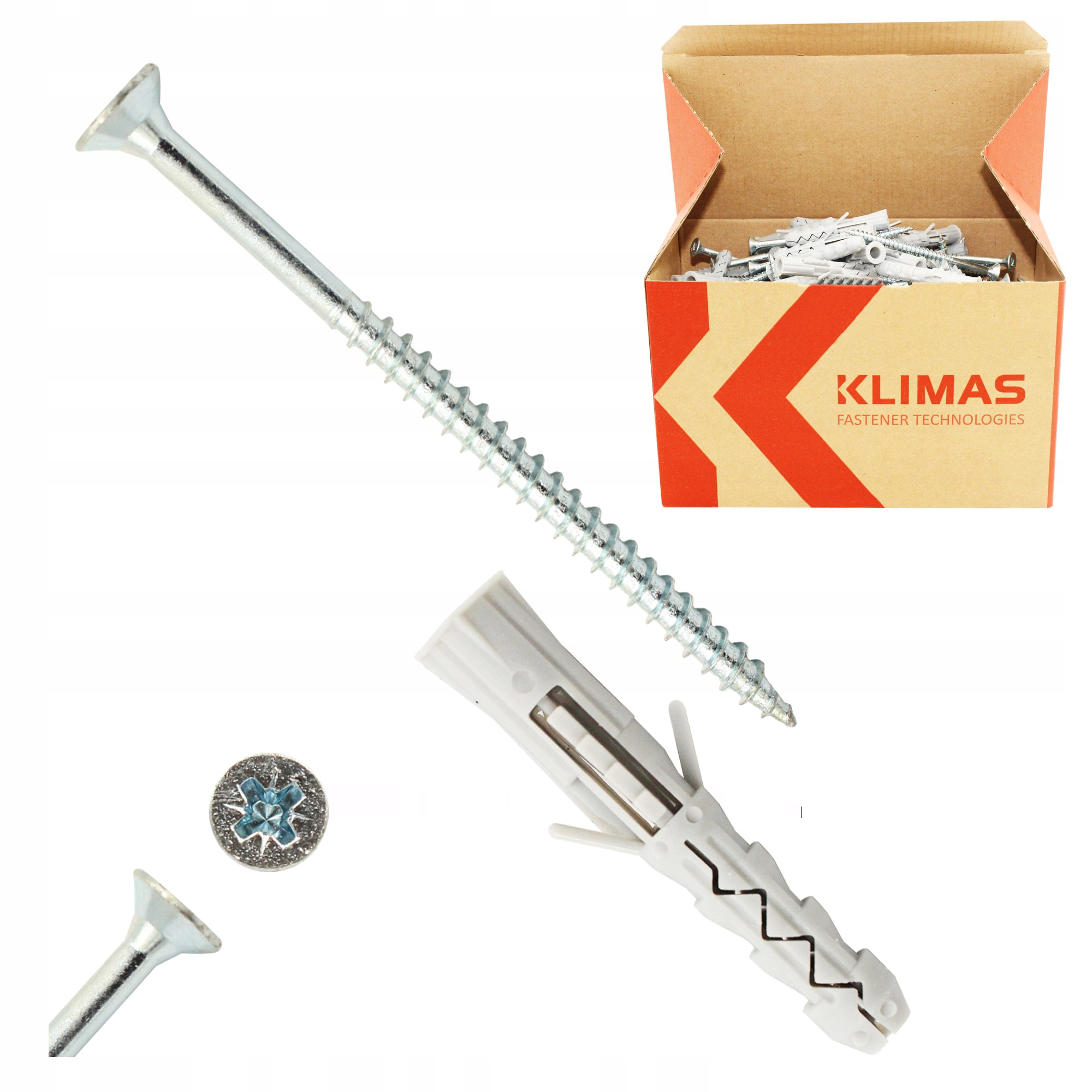

Expansion pins with countersunk head screws.

Dimensions of the pin: 8.0 x 50 mm.

Dimensions of the screw: 5.0 x 80 mm.

Packaging: 100 pieces.

Original product from the famous company Screw-Met. ®

➡️ Technical Specifications

Diameter of the dowel [Dk]: Ø 8.0 mm.

Length of the dowel [Lk]: 50 mm.

Diameter of the screw [Dw]: Ø 5.0 mm.

Length of the screw [Lw]: 80 mm.

Drilling hole diameter: Ø 8.0 mm.

Maximum usable length [Tfix]: 30 mm.

Socket: PZ-2.

Number of pieces per pack: 100.

Material of the dowel: Polypropylene.

Material of the screw: Galvanized steel.

Substrate: concrete, solid silicate brick, perforated ceramic brick.

➡️ Description and Intended Use

The KRX expansion bolt consists of a polypropylene sleeve and a countersunk head screw made of steel coated with a protective layer of zinc. It is designed for the installation of light interior finishes, metal elements, and light installation elements or mounting brackets in solid construction substrates. The special design of the spacer bands ensures that the dowel is firmly locked in the hole and prevents the sleeve from turning during screwing. The inner part of the T has guiding bands along its entire length, which ensures a secure guiding of the screw during installation.

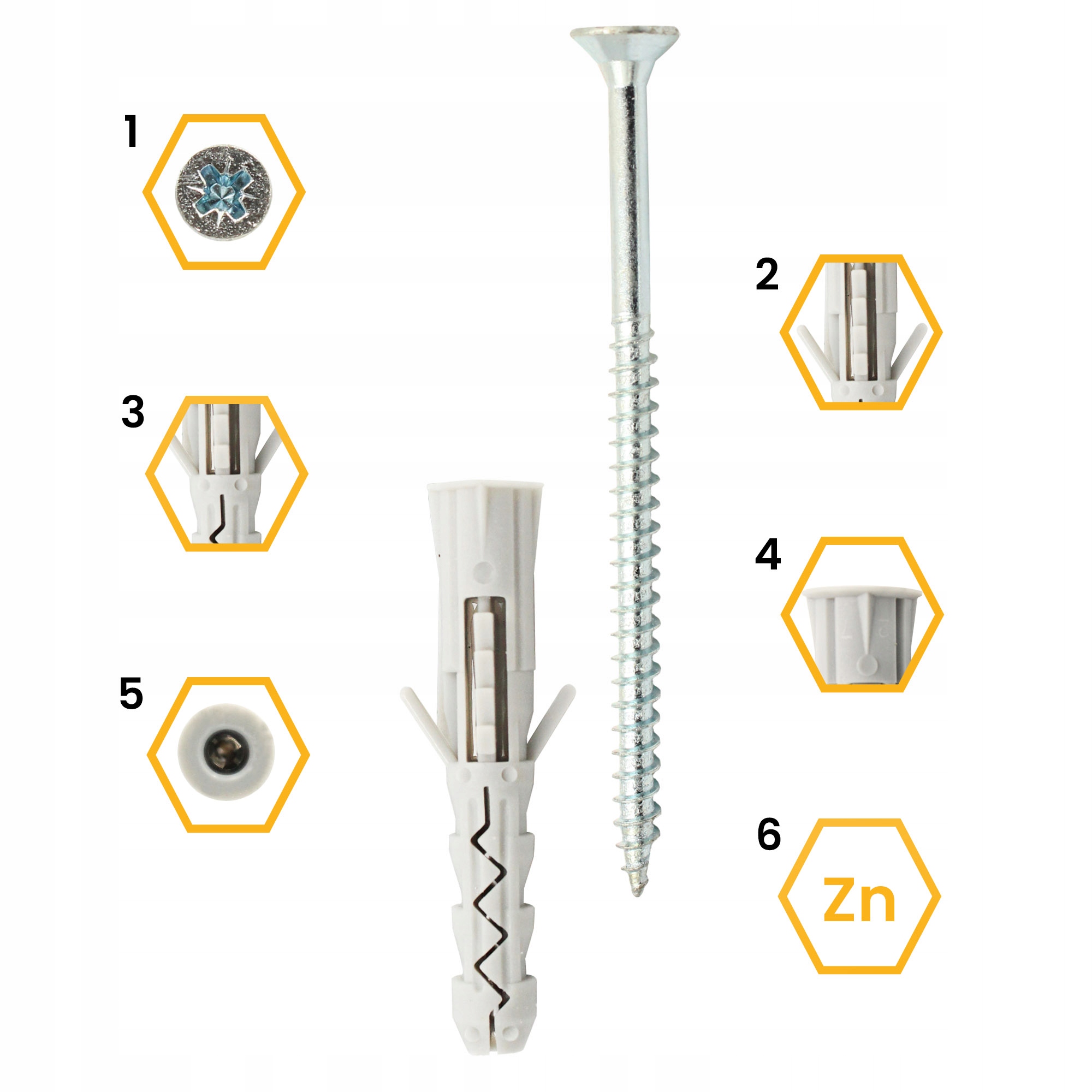

➡️ Features and Benefits

The PZ recess allows the screw to be inserted using a variety of available tools.

Special plastic tabs lock the sleeve in the hole, preventing it from turning during installation.

The special design of the spacer bands firmly locks the dowel and prevents it from turning once the screw is partially inserted.

The widened flange prevents the sleeve from being driven too deeply into the hole.

The guiding bands inside the sleeve ensure central guidance of the screw.

Galvanized, optimal protection against corrosion for indoor applications.

➡️ Application

Fixation of wooden interior fittings.

Fixation of skirting boards.

Fixation of household equipment.

Fixation of cable trays.

Fixation of cable bundles.

➡️ Installation Procedure

Before installation, it is necessary to identify the substrate.

Before installation, it is necessary to identify the substrate in which the dowel is to be installed and to compare the load that the dowel will support with the load capacity indicated in the safety data sheet or in the national technical assessment.

The drill hole diameter must correspond to the diameter of the dowel.

Holes in solid material substrates must have a depth of at least 10 mm greater than the anchorage depth of the dowels used.

Holes in solid materials must be cleaned of burrs using a low-speed drill.

The dowel is inserted into the drilled hole and the screw is driven through the fixture component until it is fully driven into the sleeve (pre-assembly).

➡️ Certification

KRX wall plugs benefit from a national technical assessment: ITB-KOT-2018/0528 edition 2.

The dowels we offer are of the highest quality and can be used with confidence in the construction sector.

We strive to ensure that the products provided to our customers are safe and suitable for specific tasks.
