Chevilles A Expansion Klimas KRX-084060 8 x 40 Avec Vis 4 x 60, PZ2, Lot De 100

Chevilles A Expansion Klimas KRX-084060 8 x 40 Avec Vis 4 x 60, PZ2, Lot De 100

➡️ Product Overview

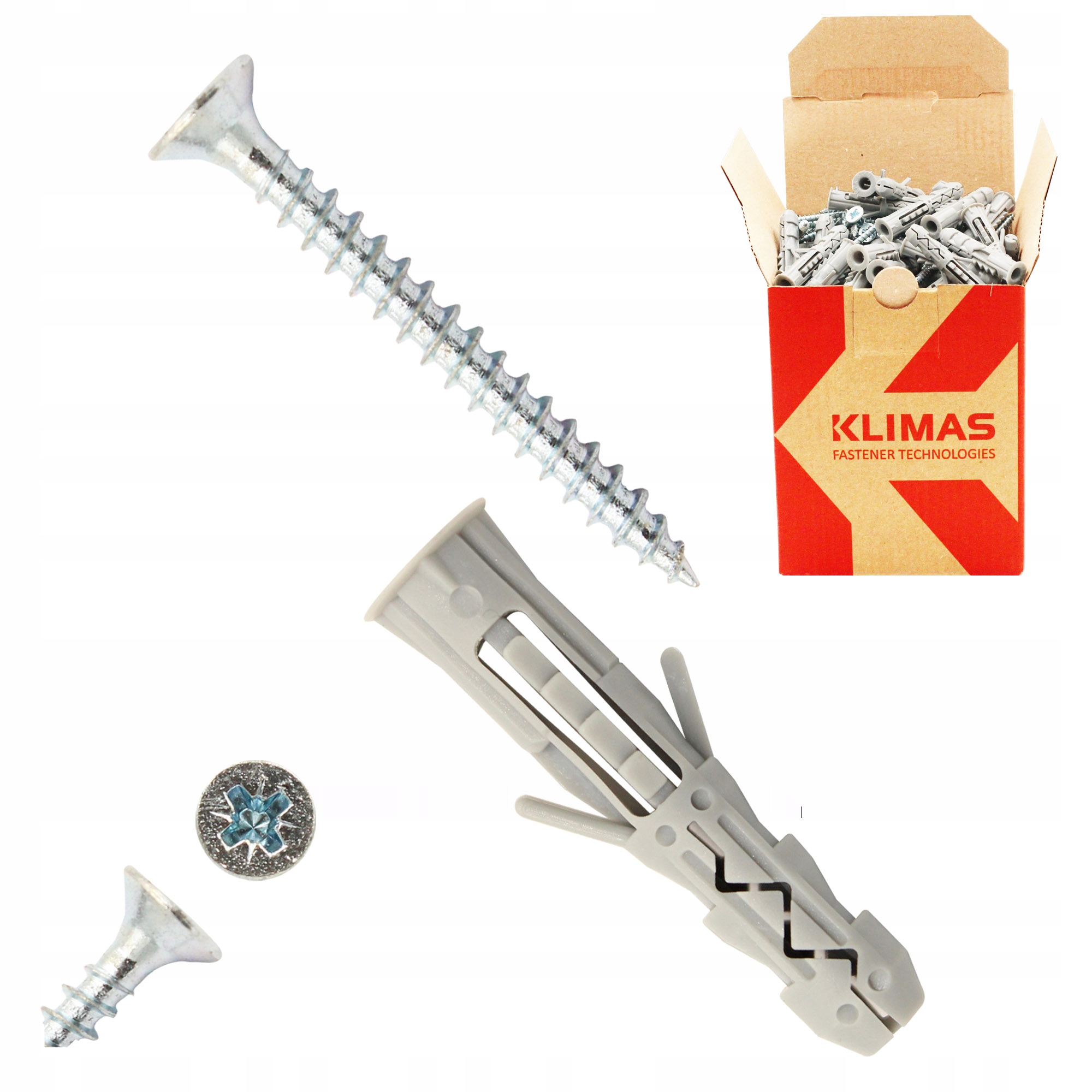

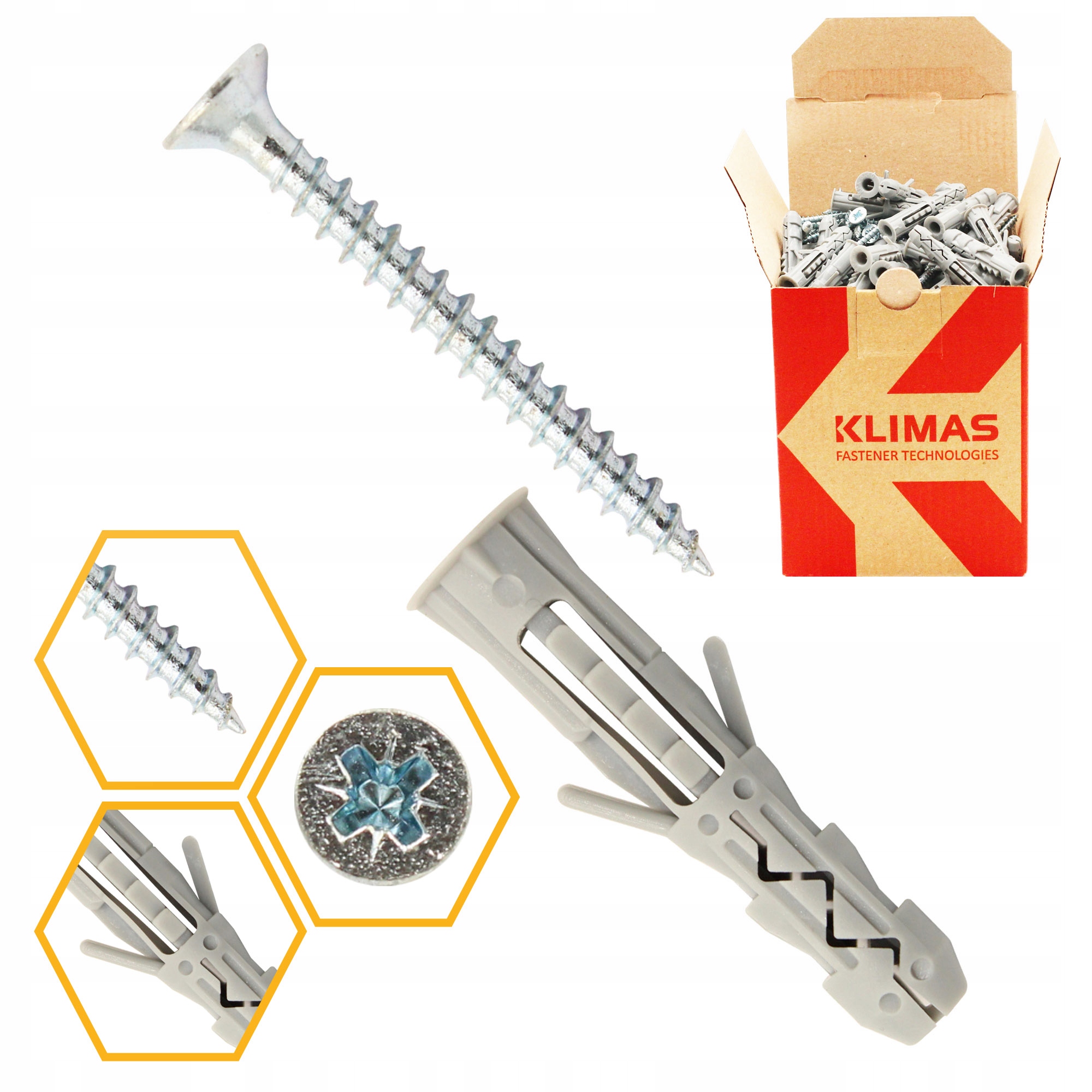

Parts: 8x40 with custom punch, 4x60 conventional PZ2, 100 pcs KRX-084060 KLIMAS. Spanner pins with countersunk screw.

Dimension of pin: 8.0 x 40 mm. Size of screw: 4 x 60 mm.

Packaging: 100 pieces. Original product from the famous company Screw-Met. ®

➡️ Technical Specifications

Diameter of the dowel [Dk]: Ø 8.0 mm.

Length of the dowel [Lk]: 40 mm.

Diameter of the screw [Dw]: Ø 4.0 mm.

Length of the screw [Lw]: 60 mm.

Drilling diameter: Ø 8.0 mm.

Maximum usable length [Tfix]: 20 mm.

Sleeve: PZ-2.

Number of pieces per package: 100.

Material of the dowel: Polypropylene.

Material of the screw: Galvanized steel.

Substrate: concrete, solid silicate brick, perforated ceramic brick.

➡️ Description and Intended Use

The KRX expansion bolt consists of a polypropylene sleeve and a countersunk head screw made of steel, covered with a protective layer of zinc. It is designed for the installation of lightweight interior finishes, metal elements, and lightweight installation components or mounting brackets in solid construction substrates. The special design of the spacing bands ensures that the dowel is firmly wedged in the hole and prevents the sleeve from rotating during screwing. The interior part of the T is equipped with guiding bands along its entire length to ensure safe guidance of the screw during installation.

➡️ Features and Benefits

The PZ recess allows the screw to be inserted with a wide range of available tools.

Special plastic tabs secure the sleeve in the hole and prevent it from rotating during installation.

The special design of the spacing bands firmly wedges the dowel and prevents it from rotating once the screw is partially inserted.

The flared head prevents the sleeve from sinking too deeply into the hole.

Guiding bands inside the sleeve ensure central guidance of the screw.

Galvanized: optimal corrosion protection for indoor applications.

➡️ Application

Fixing wooden interior fittings.

Fixing baseboards.

Fixing household equipment.

Fixing cable trays.

Fixing cable bundles.

➡️ Mounting Procedure

Before mounting, it is necessary to identify the substrate.

Before mounting, it is necessary to identify the substrate in which the dowel is to be installed and to compare the load that the dowel will support with the load capacity indicated in the safety data sheet or in the national technical assessment.

The drilling diameter must be suitable for the wall material (the thickness of the fixed element corresponds to the maximum usable length of the dowel - Tfix).

Use the correct drilling method according to the substrate type (holes in cellular concrete masonry must be drilled with a drill without a hammer drill).

The diameter of the drilled holes must be suitable for the diameter of the dowels used.

Holes in solid materials must be cleaned of burrs with a low-speed drill.

The dowel is inserted into the drilled hole, and the screw is driven through the fixed element until it is completely inserted into the sleeve (pre-mounting).

➡️ Certification

KRX wall dowels have a national technical assessment: ITB-KOT-2018/0528 edition 2.

The dowels we offer are of the highest quality and can be used with confidence in the construction sector.

We make every effort to ensure that the products supplied to our clients are safe and suitable for specific tasks.

Other sizes and types of dowels and all types of screws are available in other auctions.
