➡️ Product Overview

Parts: 8x40 with custom punch 4x45, conversion PZ2, 100 pcs, KRX-084045. KLIMAS spanner pins with countersunk screw.

Dimension of pin: 8.0 x 40 mm.

Size of screw: 4 x 45 mm.

Packaging: 100 pieces.

Original product from the famous company Screw-Met.

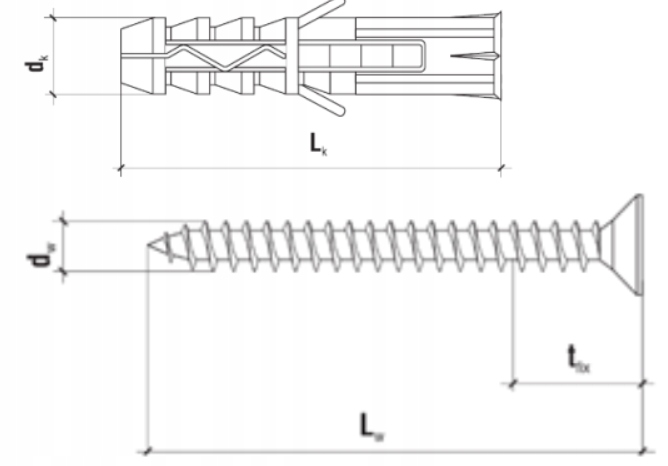

➡️ Technical Specifications

Diameter of the pin [Dk]: Ø 8.0 mm.

Length of the pin [Lk]: 40 mm.

Diameter of the screw [Dw]: Ø 4.0 mm.

Length of the screw [Lw]: 45 mm.

Diameter of the bore/drilling: 8 mm.

Maximum usable length [Tfix]: 5 mm.

Socket: PZ-2.

Number of pieces per package: 100.

Material of the pin: Polypropylene.

Material of the screw: Galvanized steel.

Substrate: Concrete, solid silicate brick, perforated ceramic brick.

➡️ Description and Intended Use

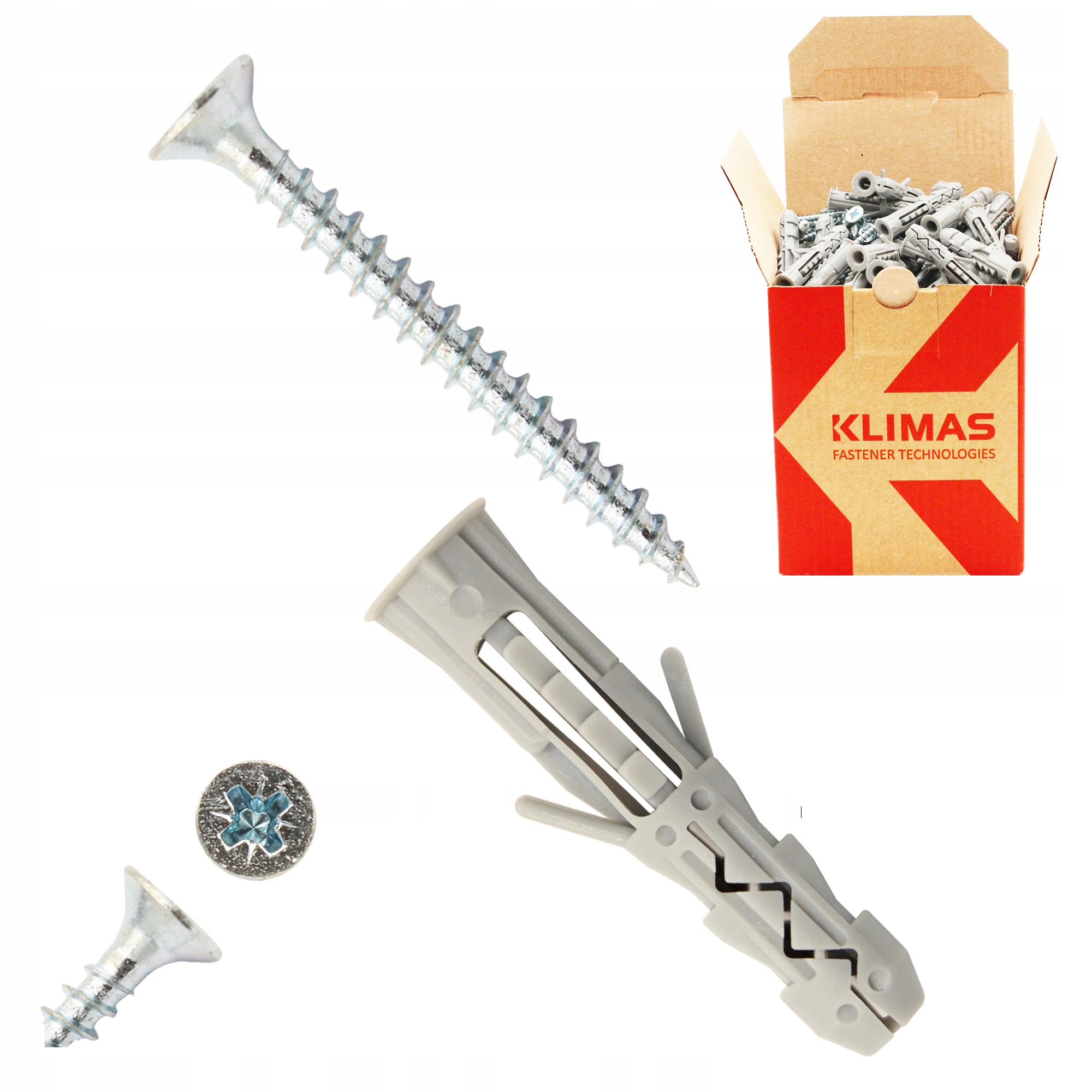

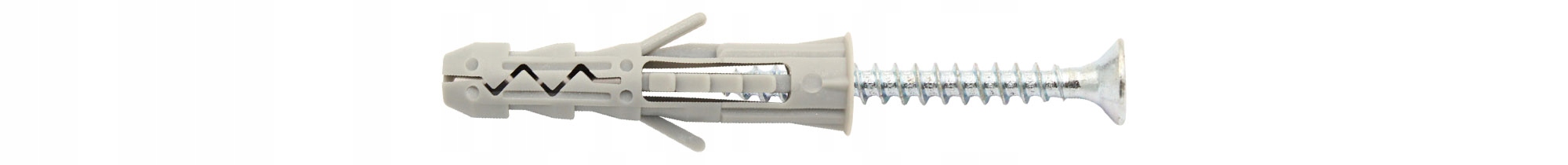

The KRX expansion bolt consists of a polypropylene sheath and a countersunk head screw made of steel, covered with a protective layer of zinc. It is designed for the installation of lightweight interior finishes, metal elements, and light installation elements or mounting brackets in solid construction substrates. The special design of the spacer bands ensures that the pin is securely anchored in the hole and prevents the sheath from turning during screwing. The inner part of the T is equipped with guiding bands along its entire length, which ensures safe guidance of the screw during installation.

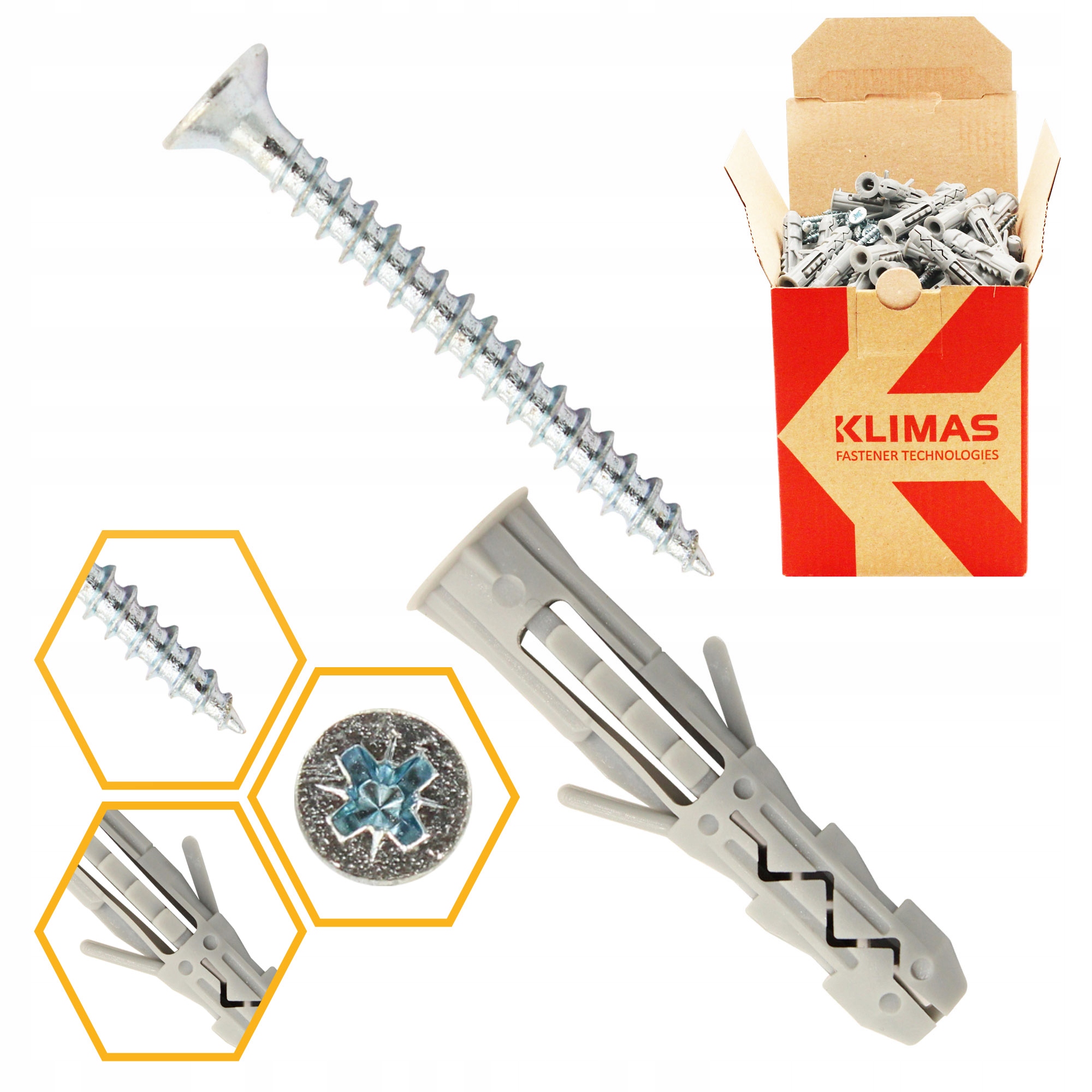

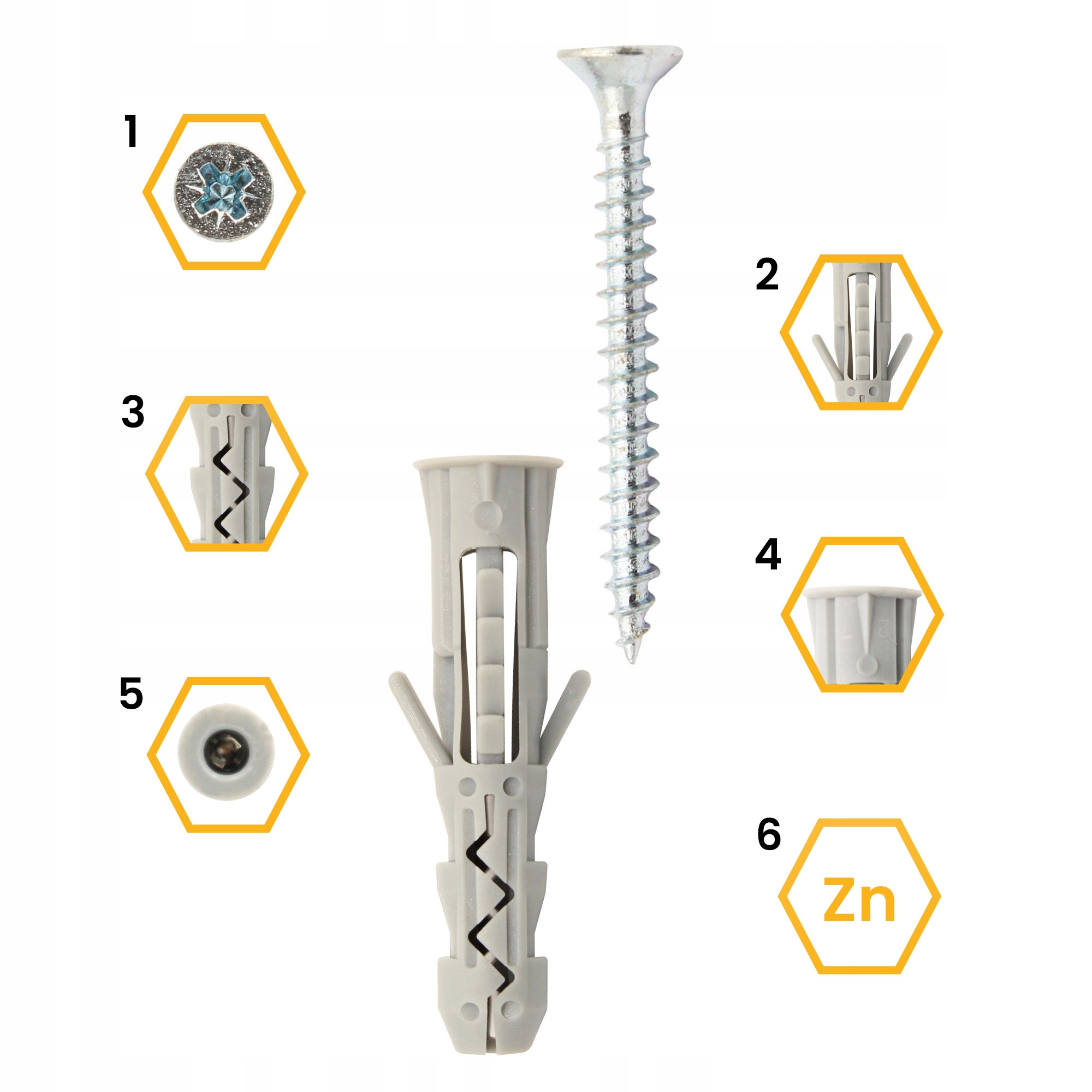

➡️ Features and Benefits

The PZ recess allows inserting the screw using a variety of available tools.

Special plastic tabs secure the sheath in the hole, preventing it from turning during installation.

The special design of the spacer bands firmly anchors the pin and prevents it from turning once the screw is partially inserted.

The enlarged flange prevents the sheath from being driven too deeply into the hole.

The guiding bands inside the sheath ensure central guidance of the screw.

Galvanized for optimal corrosion protection for indoor applications.

➡️ Applications

Fixing wooden interior installations.

Fixing skirting boards.

Fixing household equipment.

Fixing cable trays.

Fixing cable bundles.

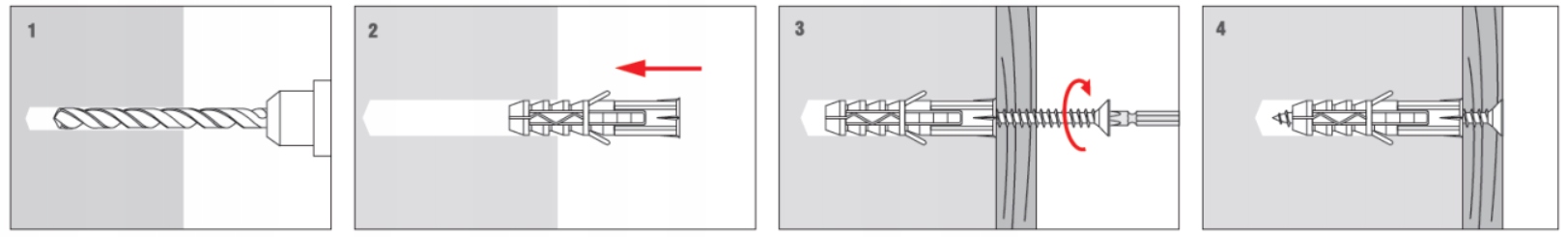

➡️ Installation Procedure

Before installation, it is necessary to identify the substrate. Before installation, it is necessary to identify the substrate in which the pin is to be installed and compare the load that the pin will support with the load capacity indicated in the safety data sheet or the national technical assessment. The drilling diameter must match the diameter of the pin. The holes in solid material substrates should have a depth of at least 10 mm greater than the anchoring depth of the pins used. The holes in solid materials should be cleaned of burrs with a low-speed drill. The pin is inserted into the drilled hole and the screw is driven through the fixed element until it is completely inserted into the sheath (pre-assembly).

➡️ Certification

KRX wall plugs benefit from a national technical assessment: ITB-KOT-2018/0528 edition 2.

The plugs we offer are of the highest quality and can be used without problems in the construction sector. We strive to ensure that the products supplied to our customers are safe and suitable for specific tasks.

Other sizes and types of plugs and all types of screws are available in other auctions.
