Chevilles A Expansion Klimas KRX-084040 8 x 40 Avec Vis 4 x 40, PZ2, Lot De 100

Chevilles A Expansion Klimas KRX-084040 8 x 40 Avec Vis 4 x 40, PZ2, Lot De 100

➡️ Product Overview

Parts: 8x40 with custom punch 4x40

Conversion: PZ2

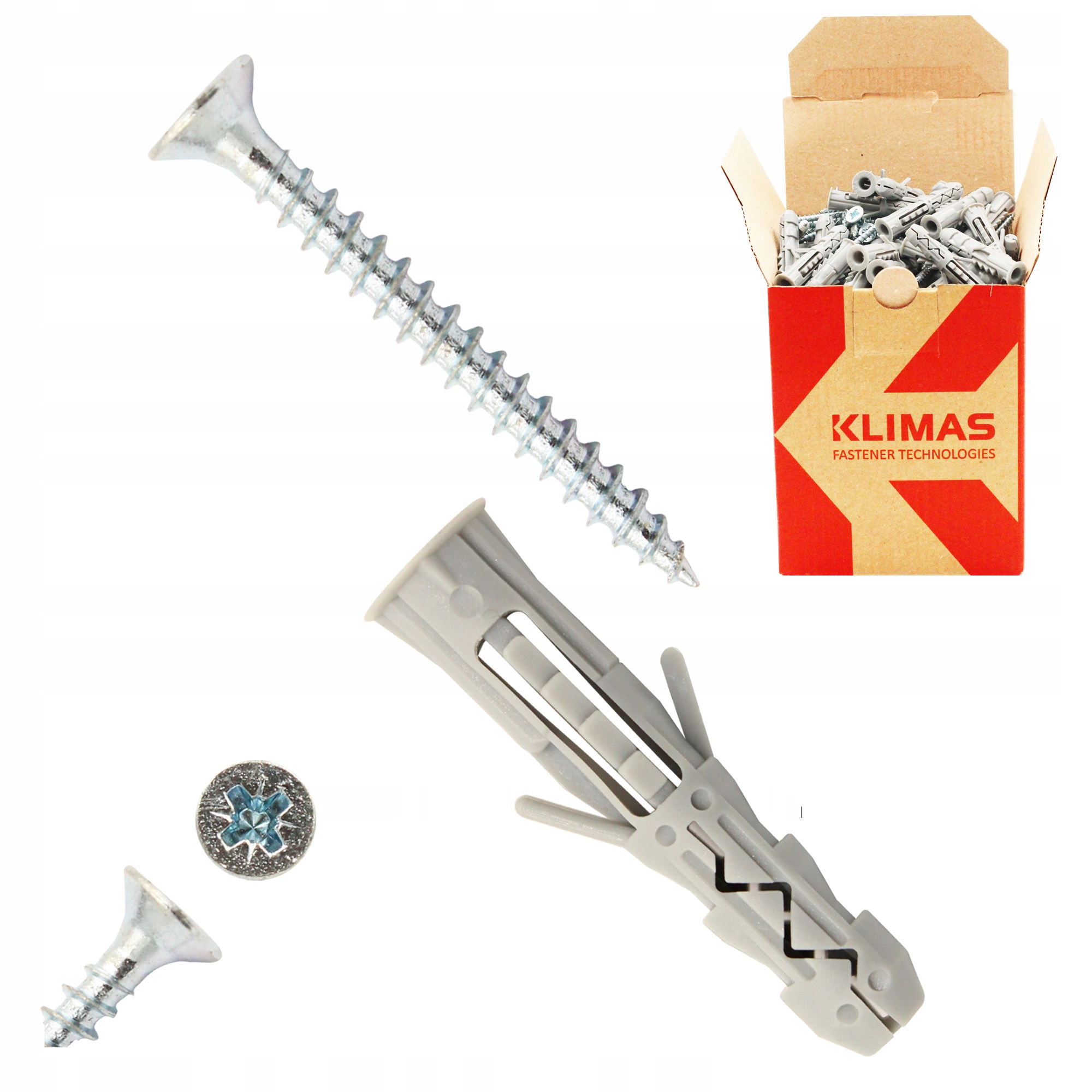

100 pcs KRX-084040 KLIMAS

Spanner pins with countersunk screw.

Dimension of pin: 8.0 x 40 mm

Size of screw: 4 x 40 mm

Packaging: 100 pieces

Original product from the renowned company Screw-Met. ®

➡️ Technical Characteristics

Diameter of the plug [Dk]: Ø 8.0 mm

Length of the plug [Lk]: 40 mm

Diameter of the screw [Dw]: Ø 4.0 mm

Length of the screw [Lw]: 40 mm

Drilling diameter: 8 mm

Maximum usable length [Tfix]: 1 mm

Socket: PZ-2

Number of pieces per pack: 100

Material of the plug: Polypropylene

Material of the screw: Galvanized steel

Substrate: Concrete, solid silicate brick, perforated ceramic brick

➡️ Description and Intended Use

The KRX expansion bolt consists of a polypropylene sleeve and a countersunk head screw made of steel coated with a protective layer of zinc. It is designed for the installation of lightweight interior finishes, metal elements, and lightweight installation elements or mounting brackets in solid construction substrates. The special design of the spacing bands ensures that the plug is firmly braced in the hole and prevents the sleeve from turning during screwing. The inner part of the T is equipped with guiding bands along its entire length, ensuring safe guidance of the screw during installation.

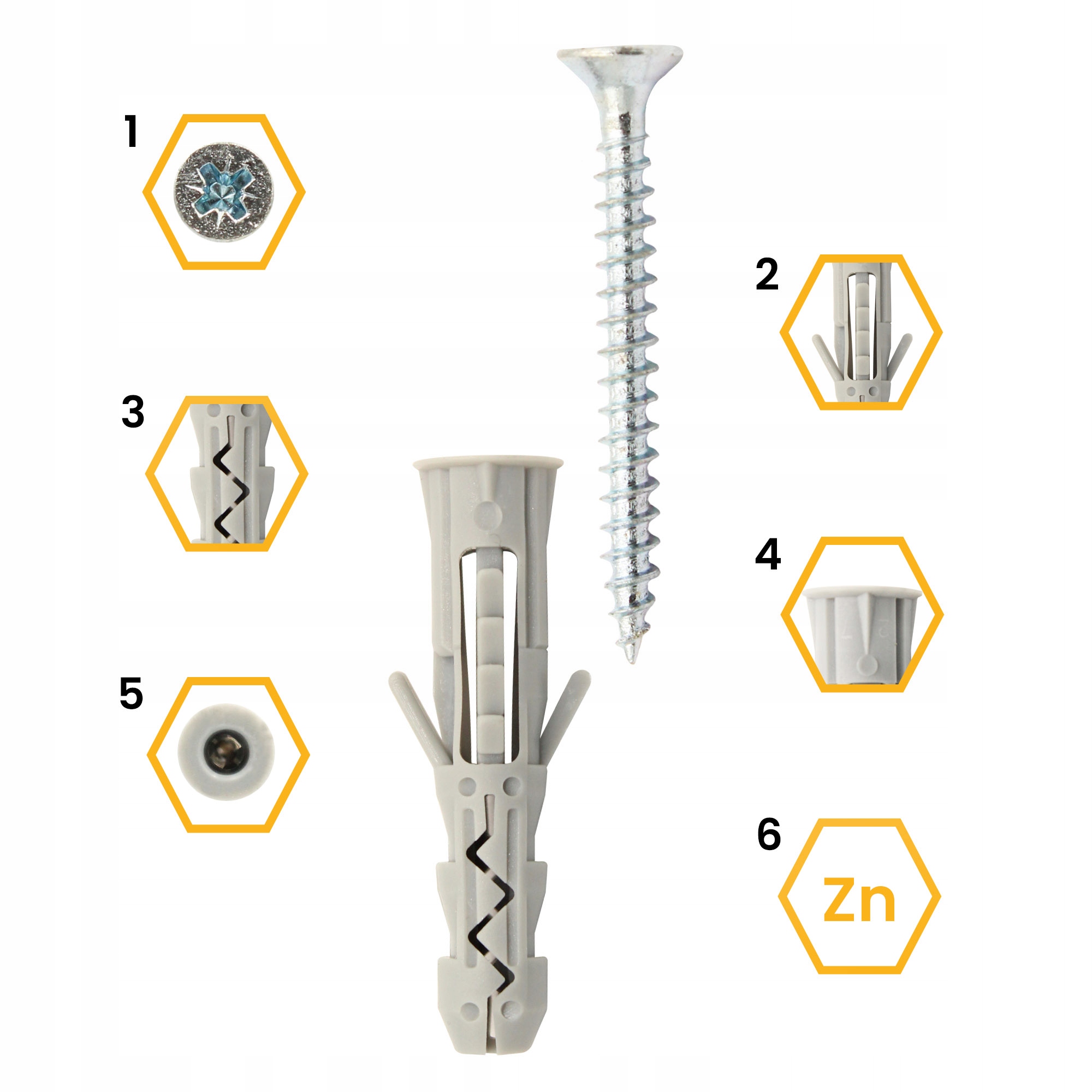

➡️ Features and Benefits

The PZ recess allows the screw to be inserted with a wide range of available tools.

Special plastic tabs stabilize the sleeve in the hole, preventing it from turning during installation.

The special design of the spacing bands firmly braces the plug and prevents it from turning once the screw is partially inserted.

The widened flange prevents the sleeve from sinking too deeply into the hole.

The guiding bands inside the sleeve ensure central guidance of the screw.

Galvanized for optimal corrosion protection for indoor applications.

➡️ Applications

Fixing of wooden interior fittings.

Fixing of skirting boards.

Fixing of household equipment.

Fixing of cable trays.

Fixing of cable bundles.

➡️ Mounting Procedure

Before installation, it is necessary to identify the substrate.

Before installation, it is necessary to identify the substrate in which the plug is to be installed and compare the load that the plug will support with the load capacity indicated in the safety data sheet or the national technical assessment. The drilling diameter must be suitable for the wall material (the thickness of the fixed element corresponds to the maximum usable length of the plug - Tfix).

Use the correct drilling method depending on the type of substrate (holes in cellular concrete masonry should be drilled with a non-hammer drill).

The diameter of the drilled holes must be adapted to the diameter of the plugs used. Holes in solid materials must be cleaned of burrs with a low-speed drill.

The plug is inserted into the drilled hole, and the screw is pushed through the fixed element until it is completely sunk into the sleeve (pre-mounting).

➡️ Certification

KRX wall plugs benefit from a national technical assessment: ITB-KOT-2018/0528 edition 2.

The plugs we offer are of the highest quality and can be used without any issues in the construction sector. We strive to ensure that the products supplied to our customers are safe and suitable for specific tasks.

Other sizes and types of plugs and all types of screws are available at other auctions.
