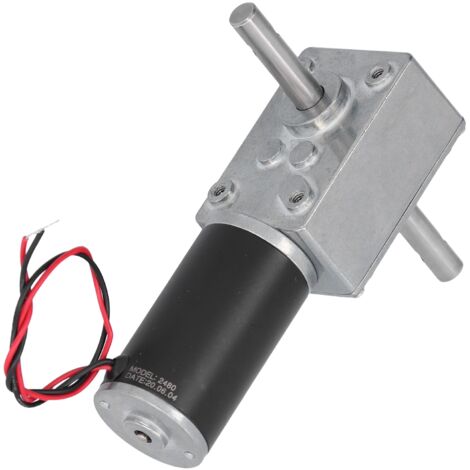

Moteur Électrique DC 24V 27RPM avec Arbre de Sortie en Acier Inoxydable et Faible Consommation
'/%3E%3C/svg%3E)
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
1、With 8mm0.3in dual output shaft, using stainless steel output shaft, which is glossy and quiet operation, longer service life
2、The shell is made of all metal materials, which is more wearable, not easy to rust, not easy to corrode, and has stable thermal conductivity
3、Adopting fully machined steel teeth, brass worm gear and double ball bearings. The 31mm/1.2in copper motor has the characteristics of small size, high torsion, long life, low noise, etc
4、After the gear is ground, heat treatment is used. Imported lubricating oil is filled between the gears of the reduction box, with low friction, low power consumption, slow temperature rise, and quieter
5、Used in household appliances, office equipment, medicine equipment, electric daily necessities, electric tools, automotive automatic facilities, intelligent systems, and other industrial drive devices, etc
Item Type: DC Motor
Material: Stainless Steel, Copper, Brass
Purpose: Industrial Drive Device
Output Shaft Size (diameter x Length): Approx. 8 x 33mm / 0.3 x 1.3in
DC 12V Parameter Table:
| Model | Voltage | No Load | Specified Load | Stall | |||||
| Rotating speed | Current | Rotating speed | Current | Torsion | Power | Current | Torsion | ||
| V | r/min | A | r/min | A | Kg.cm | W | A | Kg.cm | |
| 5840-31ZY-B-1280-17K | 12 | 470 | 0.3 | 405 | 1 | 0.85 | 3.6 | 6.5 | 5.1 |
| 5840-31ZY-B-1280-31K | 12 | 260 | 0.3 | 225 | 1 | 1.55 | 3.7 | 6.5 | 9.3 |
| 5840-31ZY-B-1280-50K | 12 | 160 | 0.3 | 140 | 1 | 2.5 | 3.7 | 6.5 | 15 |
| 5840-31ZY-B-1280-100K | 12 | 80 | 0.3 | 71 | 1 | 5 | 3.7 | 6.5 | 30 |
| 5840-31ZY-B-1280-200K | 12 | 40 | 0.3 | 35 | 1 | 10 | 3.7 | 6.5 | 60 |
| 5840-31ZY-B-1280-290K | 12 | 27 | 0.3 | 23 | 1 | 14.5 | 3.5 | Prohibit | Stall |
| 5840-31ZY-B-1280-500K | 12 | 16 | 0.3 | 14 | 1 | 25 | 3.7 | Prohibit | Stall |
| 5840-31ZY-B-1280-670K | 12 | 12 | 0.3 | 10 | 1 | 33.5 | 3.5 | Prohibit | Stall |
| Model | Voltage | No Load | Specified Load | Stall | |||||
| Rotating speed | Current | Rotating speed | Current | Torsion | Power | Current | Torsion | ||
| V | r/min | A | r/min | A | Kg.cm | W | A | Kg.cm | |
| 5840-31ZY-B-2480-17K | 24 | 470 | 0.2 | 405 | 0.6 | 1 | 4.3 | 4.4 | 5.1 |
| 5840-31ZY-B-2480-31K | 24 | 260 | 0.2 | 225 | 0.6 | 1.9 | 4.4 | 4.4 | 9.3 |
| 5840-31ZY-B-2480-50K | 24 | 160 | 0.2 | 140 | 0.6 | 3 | 4.4 | 4.4 | 15 |
| 5840-31ZY-B-2480-100K | 24 | 80 | 0.2 | 71 | 0.6 | 6 | 4.5 | 4.4 | 30 |
| 5840-31ZY-B-2480-200K | 24 | 40 | 0.2 | 35 | 0.6 | 12 | 4.4 | 4.4 | 60 |
| 5840-31ZY-B-2480-290K | 24 | 27 | 0.2 | 23 | 0.6 | 17.4 | 4.2 | Prohibit | Stall |
| 5840-31ZY-B-2480-500K | 24 | 16 | 0.2 | 14 | 0.6 | 30 | 4.4 | Prohibit | Stall |
| 5840-31ZY-B-2480-670K | 24 | 12 | 0.2 | 10 | 0.6 | 40.2 | 4.2 | Prohibit | Stall |
1 x DC Motor
Caractéristiques
- MarqueFATRD
- Montage du moteurArbre
- Réf. ManoManoME101815132
- MMID951874502334
- Réf. fabricantFA0324-YM0679
- EAN1122346491669
