Chevilles A Expansion Klimas KRX-063530 6 x 30 Avec Vis 3,5 x 30, PZ2, Lot De 200

Chevilles A Expansion Klimas KRX-063530 6 x 30 Avec Vis 3,5 x 30, PZ2, Lot De 200

➡️ Product Overview

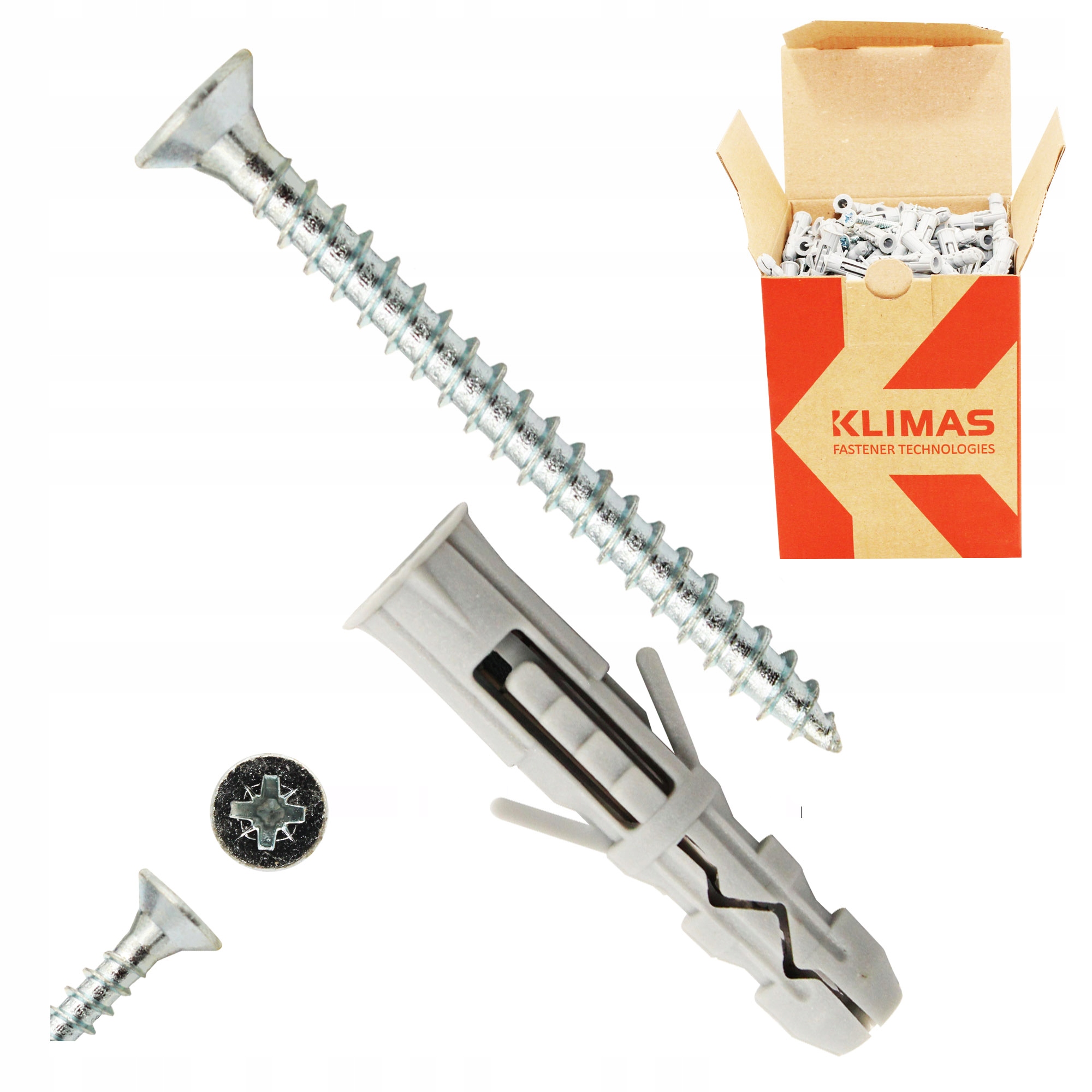

Parts 6x30 with customer 3.5x30 Conversional PZ2, 200 pcs KRX-063530 KLIMAS. Expansion dowels with countersunk head screws.

Dimensions of the dowel: 6.0 x 30 mm. Dimensions of the screw: 3.5 x 30 mm. Packaging: 200 pieces.

Original product from the famous company Screw-Met. ®

➡️ Technical Specifications

Diameter of the dowel [Dk]: Ø 6.0 mm.

Length of the dowel [Lk]: 30 mm.

Diameter of the screw [Dw]: Ø 3.5 mm.

Length of the screw [Lw]: 30 mm.

Diameter of hole/drilling: 6 mm.

Maximum usable length [Tfix]: 1 mm.

Socket: PZ-2.

Number of pieces per package: 200.

Material of the dowel: Polypropylene.

Material of the screw: Galvanized steel.

Substrate: Concrete, full silicate brick, perforated ceramic brick.

➡️ Description and Intended Use

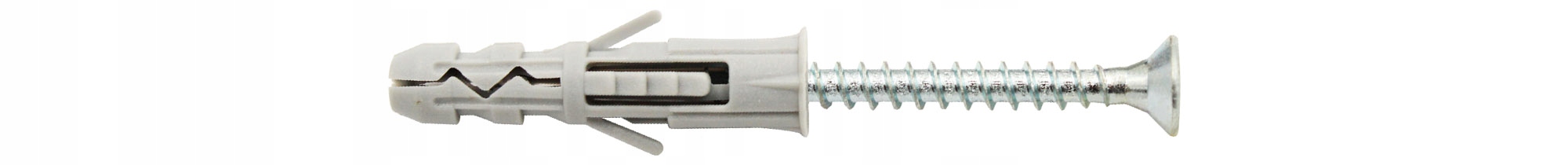

The KRX expansion bolt consists of a polypropylene sleeve and a zinc-coated, countersunk head screw made from steel. It is designed for the installation of lightweight interior finishes, metallic elements, and lightweight installation components or mounting brackets in solid construction substrates.

The special design of the spacing bands ensures that the dowel is firmly anchored in the hole and prevents the sleeve from turning during screwing. The inner part of the sleeve is equipped with guiding bands throughout its length to ensure safe guidance of the screw during installation.

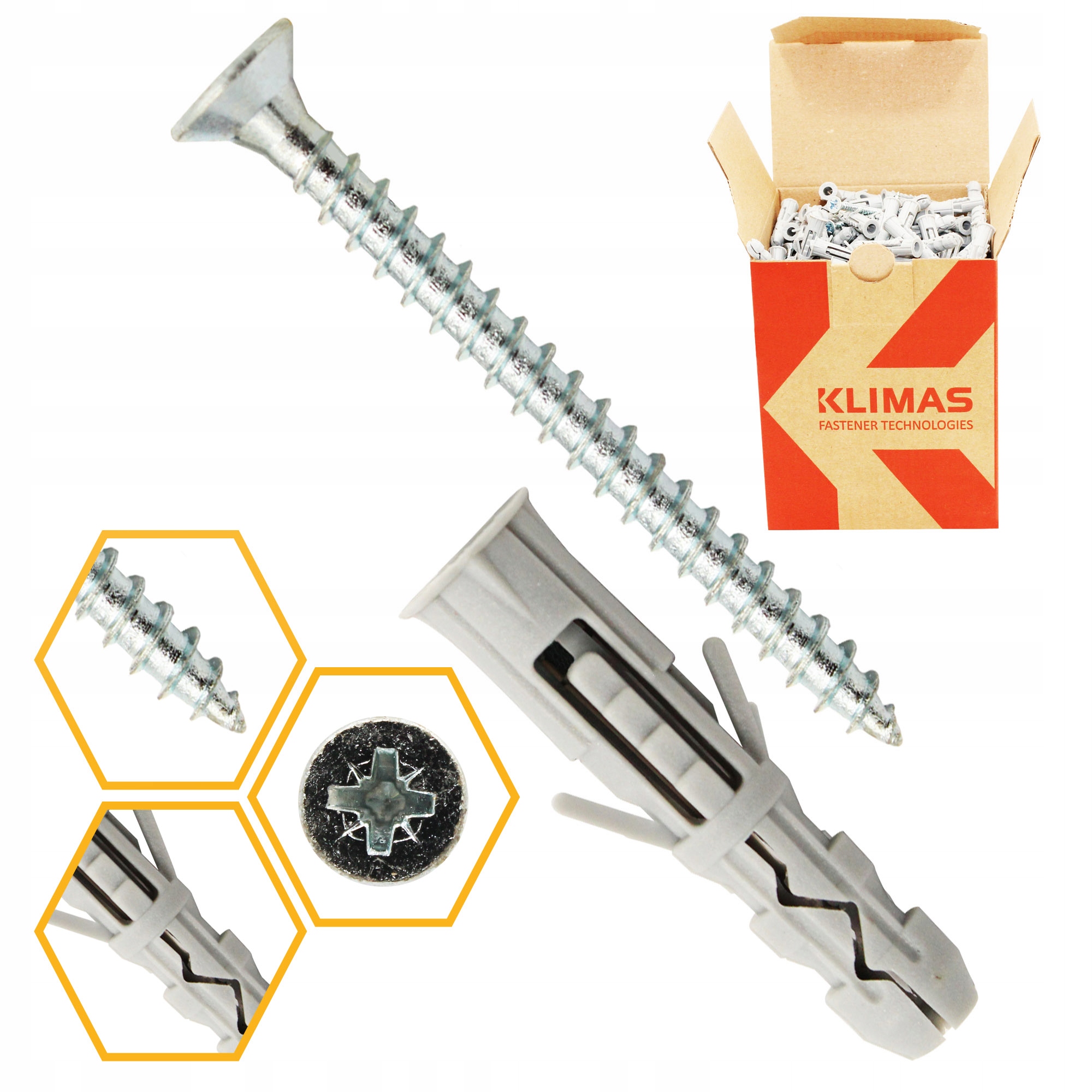

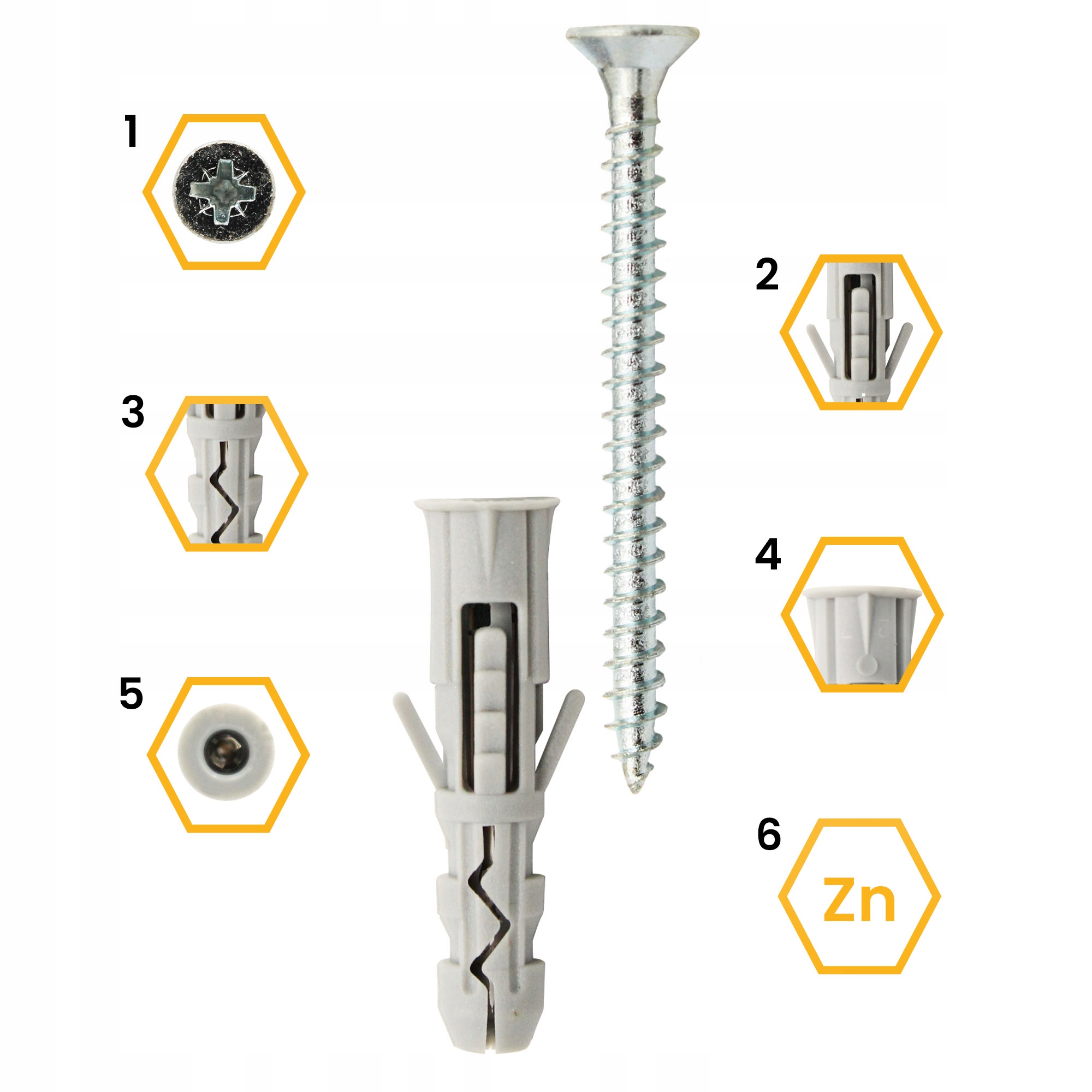

➡️ Features and Benefits

The PZ recess allows the screw to be inserted with a wide range of available tools.

Special plastic tabs stabilize the sleeve in the hole and prevent it from turning during installation.

The special design of the spacing bands firmly anchors the dowel and prevents it from turning once the screw is partially inserted.

The widened flange prevents the sleeve from sinking too deeply into the hole.

Guiding bands inside the sleeve ensure central guidance of the screw.

Galvanized, providing optimal protection against corrosion for indoor applications.

➡️ Applications

Fixing of wooden interior fittings.

Fixing of skirting boards.

Fixing of home equipment.

Fixing of cable trays.

Fixing of cable bundles.

➡️ Installation Procedure

Before installation, it is necessary to identify the substrate. Before installation, it is necessary to identify the substrate in which the dowel is to be installed and to compare the load that the dowel will support with the load capacity indicated in the safety data sheet or national technical assessment.

The drilling diameter must be appropriate for the wall material (the thickness of the fixed element corresponds to the maximum usable length of the dowel - Tfix).

Use the correct drilling method according to the type of substrate (holes in cellular concrete masonry should be drilled with a non-hammer drill).

The diameter of the drilled holes must be adapted to the diameter of the dowels used. Holes in solid materials must be cleaned of burrs using a low-speed drill.

The dowel is inserted into the drilled hole, and the screw is driven through the fixed element until it is fully seated in the sleeve (pre-assembly).

➡️ Certification

KRX wall dowels benefit from a national technical assessment: ITB-KOT-2018/0528 edition 2.

The dowels we offer are of the highest quality and can be used without hesitation in the construction sector. We do everything we can to ensure that the products provided to our customers are safe and suitable for specific tasks.

Other sizes and types of dowels and all types of screws are available in other auctions.
