Chevilles A Expansion Klimas 6 x 30 Avec Vis 3,5 x 60, Tete Fraisee PZ2, Lot De 200

Chevilles A Expansion Klimas 6 x 30 Avec Vis 3,5 x 60, Tete Fraisee PZ2, Lot De 200

➡️ Product Overview

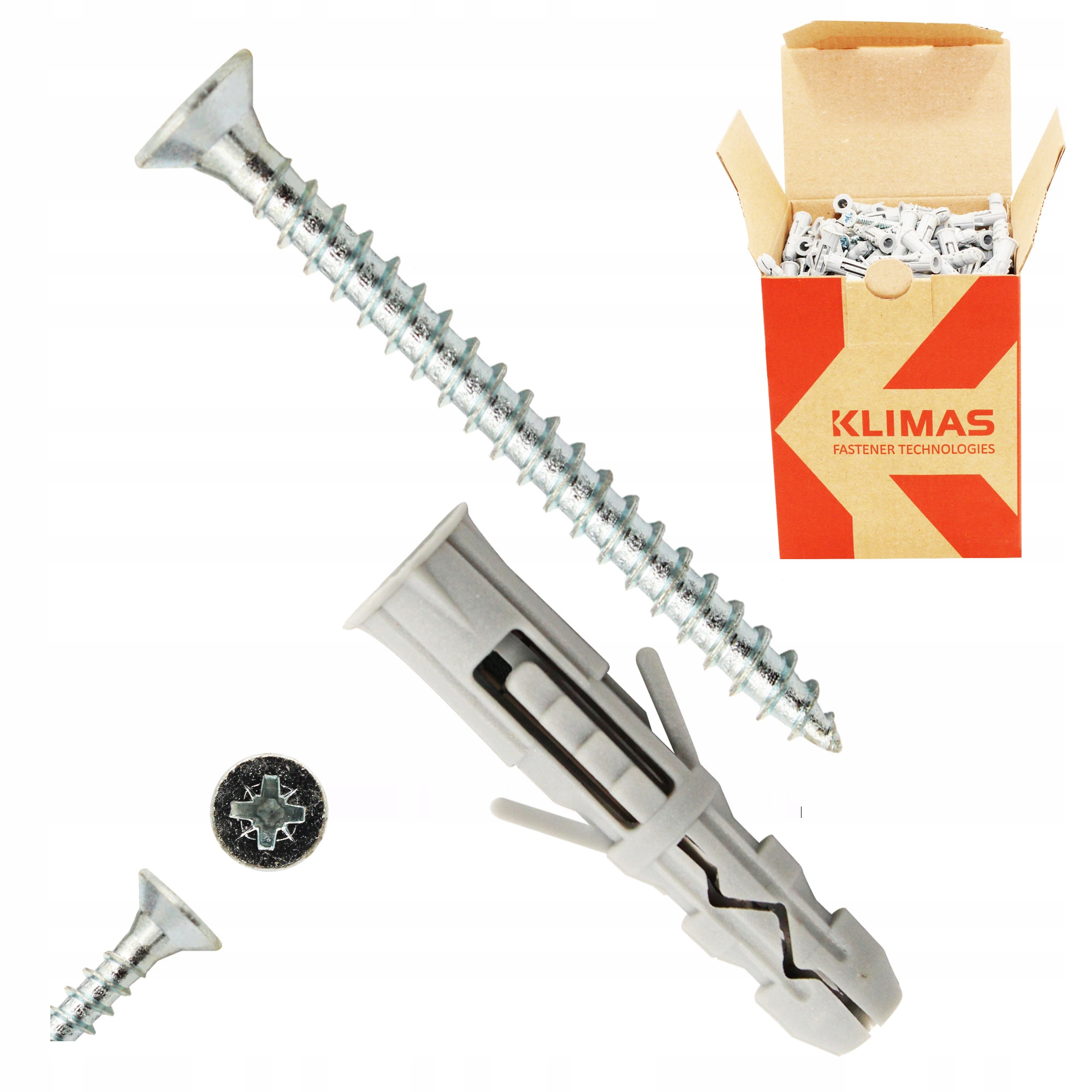

Parts: 6x30 with customer 3.5x60 conversional PZ2 Dyble 200pcs. Klimas expander pins with countersunk screw. Dimension of pin: 6.0 x 30 mm. Size of screw: 3.5 x 60 mm. Packaging: 200pcs. Original product from the famous company Screw-Met. ®

➡️ Technical Parameters

Diameter of the dowel [Dk]: Ø 6.0 mm. Length of the dowel [Lk]: 30 mm. Diameter of the screw [Dw]: Ø 3.5 mm. Length of the screw [Lw]: 60 mm. Diameter of the bore/drilling: 6.0 mm. Maximum usable length [Tfix]: 30 mm. Socket: PZ-2. Number of pieces per package: 200. Material of the dowel: Polypropylene. Material of the screw: Galvanized steel. Substrate: Concrete, solid silicate brick, perforated ceramic brick.

➡️ Description and Intended Use

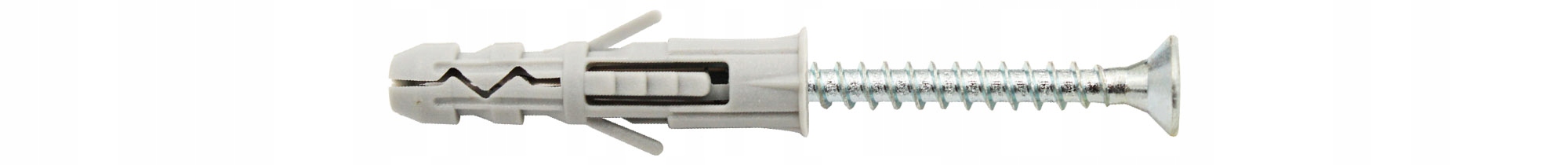

The KRX expansion bolt consists of a polypropylene sleeve and a countersunk head screw made of steel, covered with a protective layer of zinc. It is designed for the installation of lightweight interior finishes, metal elements, and lightweight installation elements or mounting supports in solid construction substrates. The special design of the spacer bands ensures that the dowel is firmly anchored in the hole and prevents the sleeve from turning during screwing. The inner part of the tee has guiding bands along its entire length, which ensures safe guidance of the screw during installation.

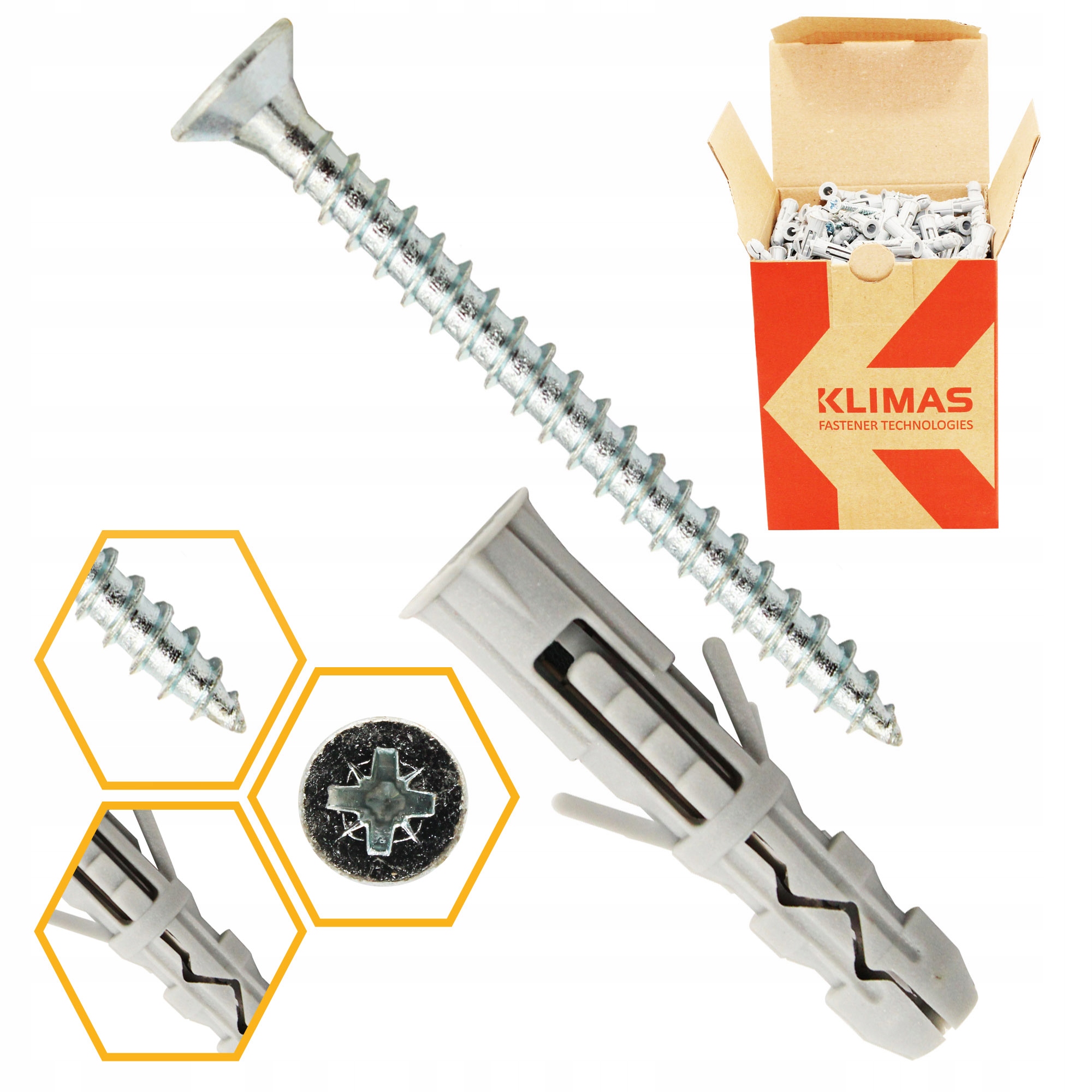

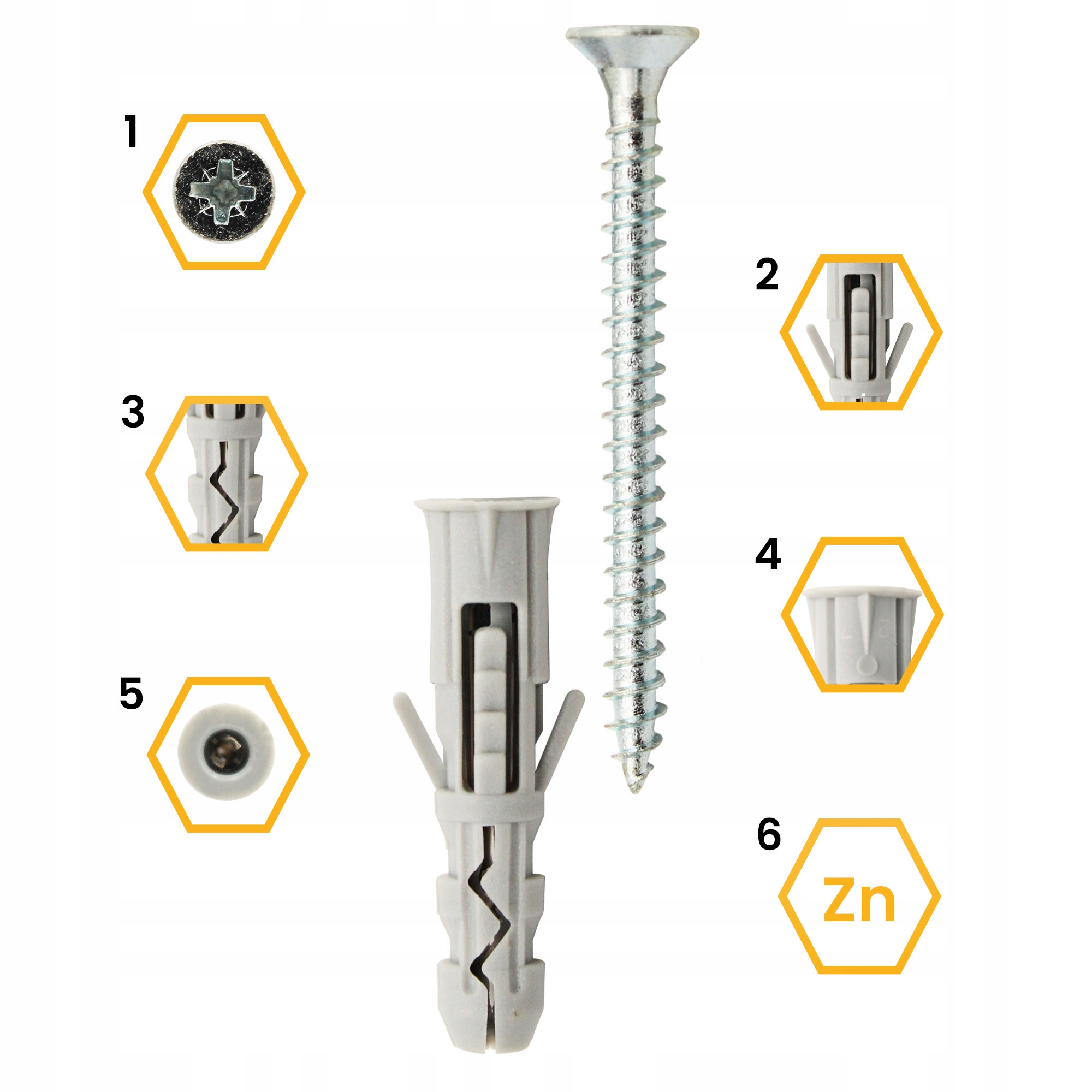

➡️ Features and Benefits

✅ The PZ recess allows for inserting the screw with many available tools.

✅ Special plastic tabs secure the sleeve in the hole, preventing the sleeve from turning during installation.

✅ The special design of the spacer bands ensures that the dowel is firmly anchored and prevents it from twisting when the screw is partially inserted.

✅ The enlarged collar prevents the dowel from being driven too deeply into the hole.

✅ The guiding bands inside the sleeve ensure central guidance of the screw.

✅ Galvanized, providing optimal corrosion protection for indoor applications.

➡️ Application

Fixation of wooden interior fittings, fixation of skirting boards, fixation of household equipment, fixation of cable trays, fixation of cable bundles.

➡️ Installation Procedure

Before installation, the substrate must be identified. It is necessary to identify the substrate in which the dowel is to be installed and compare the load the dowel will support with the load capacity indicated in the safety data sheet or in the national technical assessment. The drilling diameter must be suitable for the wall material (the thickness of the fixed element corresponds to the maximum usable length of the dowel - tfix). Use the correct drilling method depending on the type of substrate (holes in aerated concrete masonry should be drilled with a non-hammer drill). The diameter of the drilled holes must be suitable for the diameter of the dowels used. The holes in solid materials must be cleaned of burrs with a low-speed drill. The dowel is inserted into the drilled hole, and the screw is driven through the fixed element until it is completely sunk into the sleeve (pre-mounting).

➡️ Certification

KRX wall dowels benefit from a national technical assessment: ITB-KOT-2018/0528 edition 2. The dowels we offer are of the highest quality and can be used without any problems in the construction sector. Other sizes and types of dowels, all types of screws, and an assortment of carpentry, roofing, and construction products are available on our other listings.
