Câble Fil Unipolaire de silicium FG4 section 0,75 mmq orange
'/%3E%3C/svg%3E)
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code Producteur: -
Producteur: ErreBi Group
Vendu au mètre
Prix au 5 mètres
correspond à 5 mètres
Exemple: Si vous achetez 3 quantités, vous recevrez une pièce unique de 15 mètres

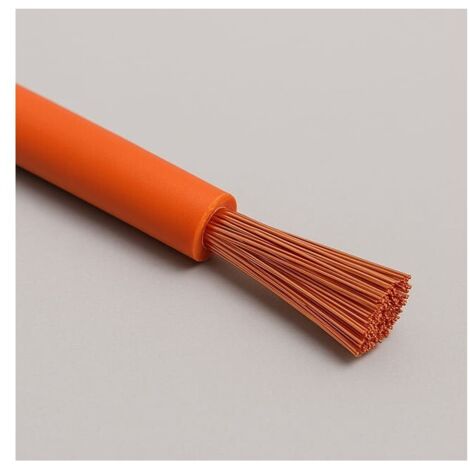

Silicone single-core cables are the ideal choice for those seeking a reliable, safe and versatile technical solution in all applications that require high performance even under extreme conditions.
Made with a tinned copper conductor with fine strands and insulated with a silicone sheath, these electrical cables combine flexibility, strength and long-term durability, standing out for their ability to maintain constant performance even in the most demanding environments.
Their main feature is their high temperature resistance, with a range that goes from very low values up to prolonged heat peaks, without compromising the safety and functionality of the wiring.
The silicone insulation also ensures excellent chemical and environmental resistance: the cables remain stable and reliable even in contact with ozone, oxygen, oils, grease, alcohol, diluted acids or saline solutions, ensuring constant and long-lasting performance.
Another strong point is safety: silicone cables are halogen-free, reduce the formation of toxic and corrosive gases in case of fire, and are designed to be self-extinguishing and flame-retardant, compliant with the strictest international standards.
These characteristics make them particularly suitable for complex industrial environments such as steel mills, foundries, cement plants, glassworks and ceramic processing plants, where contact with intense heat and aggressive substances is continuous.
They are also used in the marine and aeronautical sectors, where lightness, reliability and top-level safety are required.
Available in a wide range of cross-sections, these high-temperature cables can be used for both fixed installations and mobile applications, always ensuring excellent mechanical and electrical performance.
In every application they guarantee operational continuity, protection and long-term quality, making them the ideal solution for safe, durable and flexible wiring even in the most demanding conditions.
Technical features
- Number of conductors: 1
- Conductor material: Red copper
- Cable section: 0.75 mm²
- Outer sheath color: Orange
- Minimum operating temperature: -60 °C
- Maximum operating temperature: +180 °C
- Rated voltage: 300 V / 500 V
- Outer diameter: 2.40 mm
- Voltage test: 2000 V
- Flame resistance: IEC 60332-1-2
- Properties: High flexibility and wear resistance
Typical applications
Machinery, tools, robotics, automation and industrial control.
Scheda Tecnica
Type de produit: Câble en Silicone
Couleur: Orange
Diamètre externe: 2.40 mm
Voltage: 500V
Température de fonctionnement min.: -60°C
Température de fonctionnement max.: +180°C
Matériau d'isolation: Caoutchouc de Silicone
Conducteur (matériel): Cuivre rouge
Section de câble mmq: 0.75 mmq
Blindage: Non
Test de tension: 2000V
Résistance à la flamme: CEI 60332-1-2
Caractéristiques
- MarqueERREBI GROUP
- Tension électrique500 V
- MatièresSilicone
- CouleurOrange
- Résistant aux uvOui
Questions fréquentes
Ce câble en silicone peut fonctionner à des températures allant de -60 °C à +180 °C, ce qui le rend adapté à des environnements extrêmes.
Ce câble est conforme à la norme IEC 60332-1-2 en matière de résistance à la flamme, ce qui garantit sa sécurité en cas d'incendie.
Le diamètre extérieur de ce câble est de 2,40 mm, ce qui permet une installation dans des espaces restreints.
