50 Pcs 1/8 Inch Pressure Copper Misting Nozzles for Garden Cooling and Irrigation AntiDrip Design

50 Pcs 1/8 Inch Pressure Copper Misting Nozzles for Garden Cooling and Irrigation AntiDrip Design

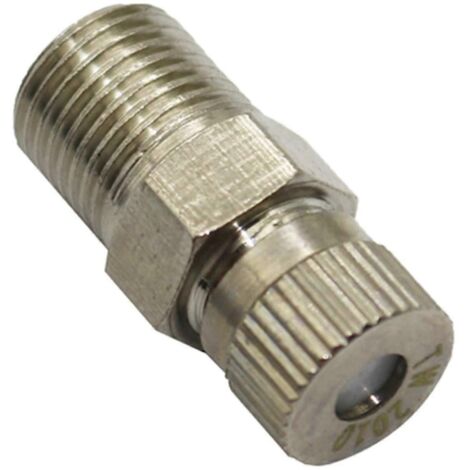

Misting Nozzles Copper Pressure Atomizing Nozzles for Irrigation and Cooling
Product overview
These copper misting nozzles are designed for humidification, dust control, cooling, landscaping, and irrigation applications. Each nozzle features an anti drip valve and a 10 mm external thread (1/8 inch) connection for integration into pressure misting systems.
Key specifications
Name: Misting Nozzles
Material: Copper
Connection size: 10 mm external thread (1/8 inch)
Orifice range: 0.1 to 0.6 mm
Recommended operating pressure: 30 bar and above
Anti drip valve: integrated to reduce dripping when system is off
Typical droplet size: fully atomized mist, approximately 3 to 7 microns
Package: 50 pieces
Main benefits
Precise atomization: produces very fine mist for effective humidification and cooling without heavy droplets or runoff.
Water efficient: designed to deliver a uniform water layer with minimal overspray, helping reduce water use compared to coarsespray systems.
Reliable operation: copper construction and anti drip valve reduce clogging and leakage, supporting consistent performance over time.
Easy to configure: available orifice sizes allow adjustment of flow and spray pattern to match specific needs.
Simple installation: no air assistance required, compatible with standard pressure misting lines using 10 mm external thread fittings.
Features and performance
Copper nozzles resist wear and provide durable performance in demanding environments.
Orifice options from 0.1 to 0.6 mm let you tailor flow rate and mist density for different applications.
Anti drip valve prevents dripping after shutoff, reducing water waste and mess.
Nonairassisted design simplifies system layout and reduces equipment complexity.
Produces fine mist droplets in the 3 to 7 micron range for efficient evaporative cooling and humidification.
Engineered to reduce clogging and provide even spray distribution across the coverage area.
Typical use scenarios
Outdoor restaurant patio cooling: install a line of nozzles around a dining area to create an evaporative cooling mist that lowers ambient temperature without wetting surfaces.
Greenhouse or mushroom farm humidification: use appropriately sized orifices to maintain stable humidity levels while minimizing water accumulation on plants or substrate.
Dust suppression at farms or construction sites: position nozzles to capture airborne dust particles and improve local air quality in targeted zones.
Compatibility and installation notes
Fits systems with 10 mm external thread (1/8 inch) fittings; verify thread compatibility with existing piping or adapter components before installation.
Select nozzle orifice based on required flow and mist density; smaller orifices produce finer mists and lower flow rates.
Operate at 30 bar or higher for atomization performance. Ensure the system is rated for the required pressure and includes appropriate pumps and fittings.
Regularly flush lines and consider inline filtration to minimize debris exposure and prolong nozzle life.
What is included
50 nozzles per package
Applications
Suitable for agricultural irrigation, lawn irrigation, garden spraying and irrigation, roof cooling, outdoor cooling, dust control, industrial spot cooling, and landscaping humidification.
This product is provided as specified: copper misting nozzles, 10 mm external thread (1/8 inch), orifice range 0.1 to 0.6 mm, anti drip valve, recommended pressure 30 bar and above, package of 50 pieces.
