Vis Charpente Bois Klimas, 6 x 80 mm, Empreinte Torx, Tête Disque, Blister 10 Pièces

Vis Charpente Bois Klimas, 6 x 80 mm, Empreinte Torx, Tête Disque, Blister 10 Pièces

➡️ Product Overview

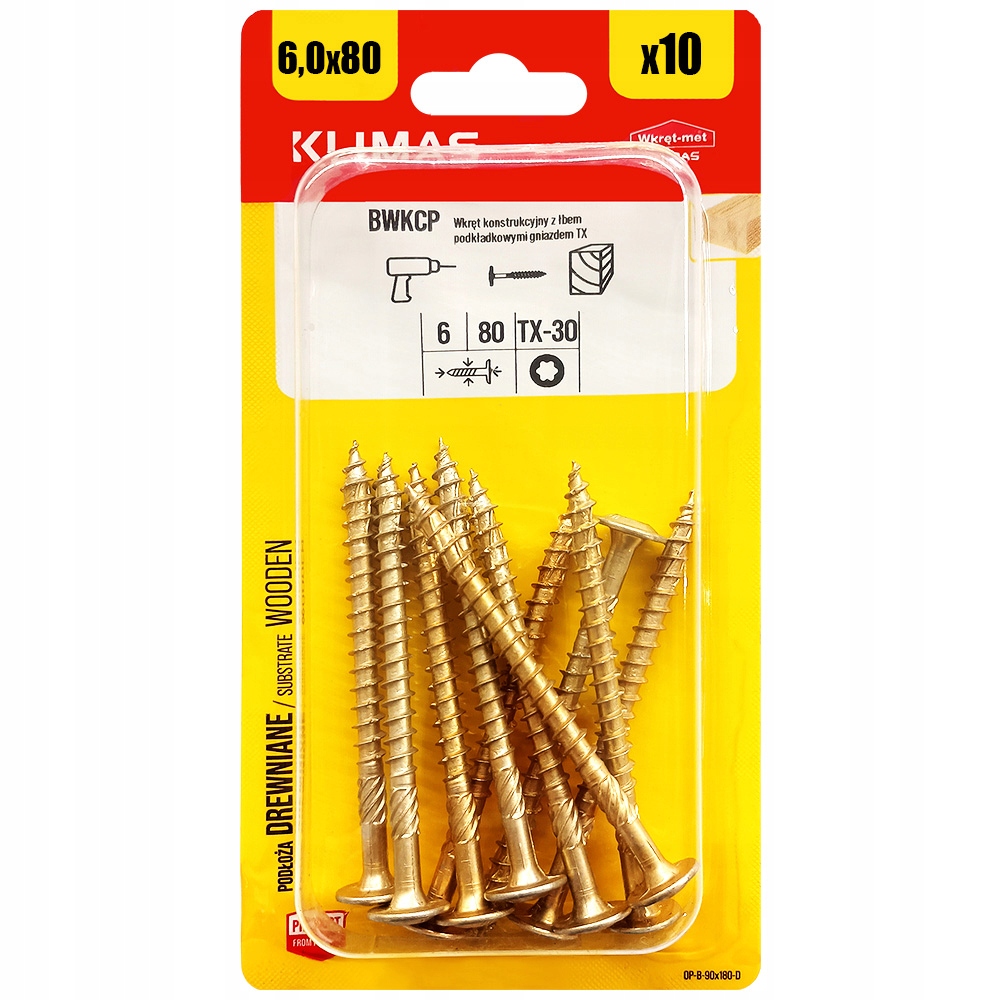

TORX TORX 6x80 Tablet Drives for Wood, 10pcs, BWKCP-06080. Original product from the renowned company Screw-Met. Size: 6 x 80 mm. Packaging: 10pcs. Manufacturer code: BWKCP-06080. Distributor's official screw-met.

➡️ Description

The screws are designed for the assembly of wooden and wood-based elements (particle boards, plywood, MDF panels, OSB panels). They considerably facilitate and speed up the work without the need for pre-drilling. The TORX socket effectively prevents the bit from slipping during screwing.

➡️ Technical Characteristics

Screw dimensions (Lw x dw) - 6 x 80 mm. Screw diameter (dw) - 6 mm. Screw length (Lw) - 80 mm. Usable thread length (Lg) - 50 mm. Usable length (tfix) - 20 mm. Screw head diameter (Dw) - 14 mm. Thickness of protective coating - 8 µm. Material - low carbon steel electro-galvanized. Type of screw socket - TX-30.

➡️ Features and Benefits

Thanks to the special wax coating, the value of the screwing torque has been considerably reduced. Assembly is faster and easier, and the battery life of power tools is extended. We produce screws with a length of up to 400 mm, allowing for fixing components of a thickness up to 260 mm. The washer head offers great pull resistance and secures the connection. The TX socket ensures optimal torque transmission. The countersink reduces the torque required for screwing by widening the hole in the fixed element. Special cut notches on the thread cut the fibers of the wood structure during screwing. The special shape of the milling tip reduces resistance during screwing by up to 20%, extending the battery and tool life. The additional turns on the tip facilitate screwing - they allow catching the wood faster with less pressure. The high torque allows for screwing screws without pre-drilling, even in hardwood.

➡️ DOUBLE TAP - Faster Installation

The additional turns on the tip allow for catching the wood faster during the first stage of screwing. This advantage is particularly important for joints where tightening the screw is difficult. The double thread achieves the same effect with much less pressure.

➡️ UP TO 40% Faster Screwing Time

In tests conducted prior to the product launch, we confirmed that the new shape of the screw tip leads to a reduction in screwing time of up to 40% for the same load. The extent of savings depends on the type of joint and the wood used.

1. Old tip

2. New tip

➡️ 20% LESS SCREWING RESISTANCE

The new milling tip shape reduces screwing resistance by up to 20%. This parameter is particularly important for professionals who use rechargeable tools daily - it increases battery life.

1. Old tip

2. New tip

a. Nm

b. Anchor depth

➡️ Certificates

European certificate:

The screws have been manufactured in accordance with the EN 14592-2008 standard. This European standard specifies the requirements and testing methods related to materials, geometry, strength, rigidity, and durability (i.e., corrosion protection) of fastening elements used in load-bearing wooden structures.

➡️ Old and New Tip

The manufacturer Klimas Wkręt-met implements a new shape of the milling tip for screws (description above). In our offer, you will find other sizes of framing screws with lengths from 30 mm to 400 mm, diameters from 3 mm to 10 mm, and other types of framing screws, spacers, self-tapping screws, as well as dowels, screw bits, with the rest of the assortment from the framing, roofing, and construction industry.
