Vis Charpente Bois Klimas, 6 x 50 mm, Empreinte Torx, Tête Disque, Blister 10 Pièces

Vis Charpente Bois Klimas, 6 x 50 mm, Empreinte Torx, Tête Disque, Blister 10 Pièces

➡️ Product Overview

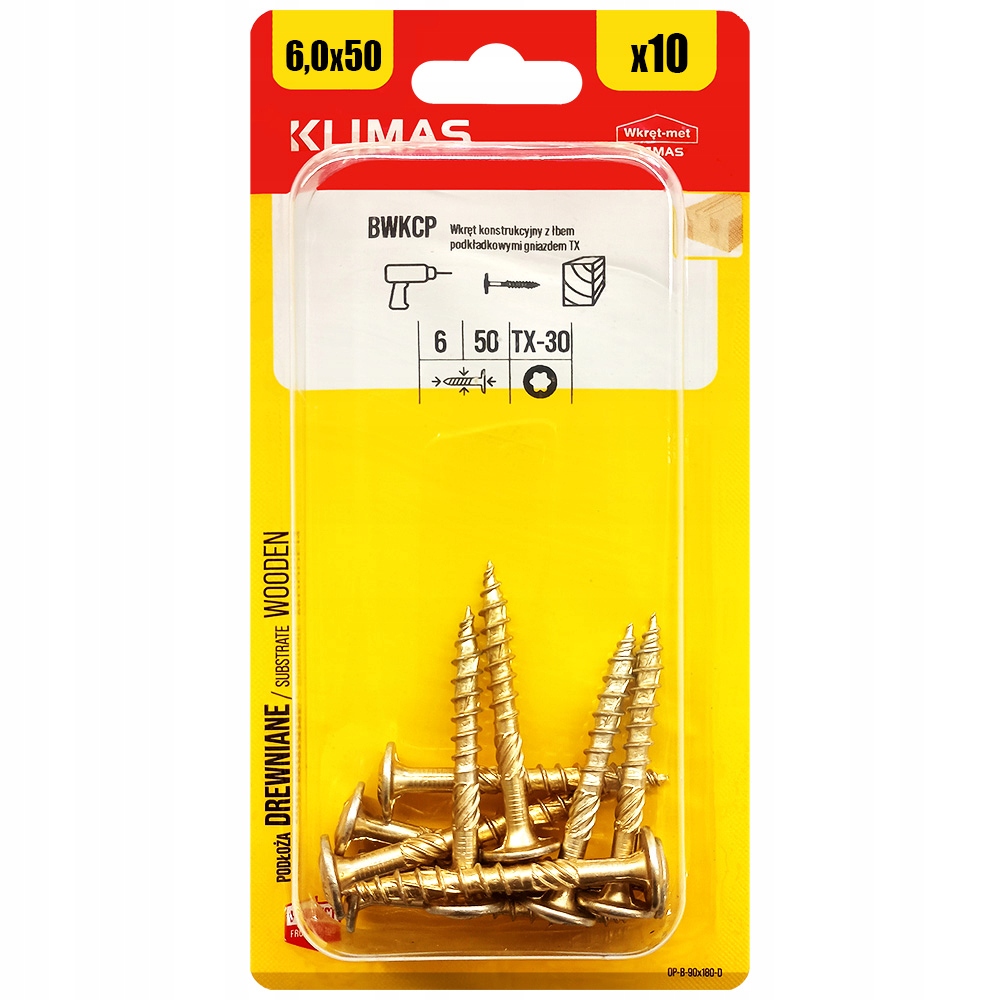

TORX 6x50 TORX Tablet Drives for Wood, 10pcs

BWKCP-06050 Klimas

Original product from the renowned company Screw-Met.

Size: 6 x 50 mm

Packaging: 10pcs

Manufacturer code: BWKCP-06050

Distributor's screw from Screw-met.

➡️ Description

The screws are designed for the assembly of wood and wood-based elements (particle boards, plywood, MDF panels, OSB panels). They significantly facilitate and accelerate the work without requiring pre-drilling. The TORX socket effectively prevents the tip from slipping during screwing.

➡️ Technical Parameters

Dimensions of the screw (Lw x dw) - 6 x 50 mm

Diameter of the screw (dw) - 6 mm

Length of the screw (Lw) - 50 mm

Effective thread length (Lg) - 30 mm

Diameter of the screw head (Dw) - 14 mm

Thickness of the protective coating - 8 µm

Material - low-carbon steel, galvanized

Type of screw socket - TX-30

➡️ Features and Benefits

Thanks to the special wax coating, the value of the screwing torque is significantly reduced. Assembly is faster and easier, and the autonomy of battery tools is extended.

We produce screws with a length of up to 400 mm, allowing for fastening pieces with a thickness of up to 260 mm. The washer head provides high resistance to dragging and secures the connection. The TX socket ensures optimal torque transmission.

The countersink reduces the torque required for screwing by widening the hole in the fixed element.

Special cutting notches on the thread cut the fibers of the wood structure during screwing.

The special shape of the milling tip allows for a reduction of up to 20% in the resistance during screwing, which extends the battery life and the tool itself.

The special shape of the milling tip allows for a 20% reduction in the resistance during screwing, which prolongs the battery life and the tools themselves.

The additional spirals of the tip facilitate screwing - they allow for faster wood grabbing with less pressure.

The high torque allows for screwing screws without pre-drilling, even in hard wood.

➡️ DOUBLE TAP - Faster Installation

The additional spirals of the tip allow for quicker wood grabbing during the initial phase of screwing. This advantage is particularly important for joints where screwing tight is difficult. The double thread achieves the same effect with much less pressure.

➡️ UP TO 40% Faster Screwing Time

In tests conducted prior to the product launch, we confirmed that the new shape of the screw tip leads to a reduction in screwing time of up to 40% for the same load. The extent of the savings depends on the type of joint and the wood used.

1. Old tip

2. New tip

➡️ REDUCTION OF SCREWING RESISTANCE BY UP TO 20%

The new shape of the milling tip reduces the screwing resistance by up to 20%. This parameter is particularly important for professionals who use rechargeable tools daily - it increases battery life.

1. Old tip

2. New tip

a. Nm

b. Embedding depth

➡️ Certificates

European Certificate

The screws are manufactured in accordance with the EN 14592-2008 standard. This European standard specifies the requirements and testing methods related to the materials, geometry, strength, rigidity, and durability (i.e., protection against corrosion) of fastening elements used in wooden load-bearing structures.

➡️ Old and New Tip

The manufacturer Klimas Wkręt-met has introduced a new shape for the milling tip of the screws (description above).

In our offer, you will find other sizes of wood frame screws with lengths from 30mm to 400mm, diameters from 3mm to 10mm, and other types of frame screws, spacers, self-tapping screws, as well as dowels, screwdriver bits, along with the rest of the assortment of the frame, roofing, and construction industry.
