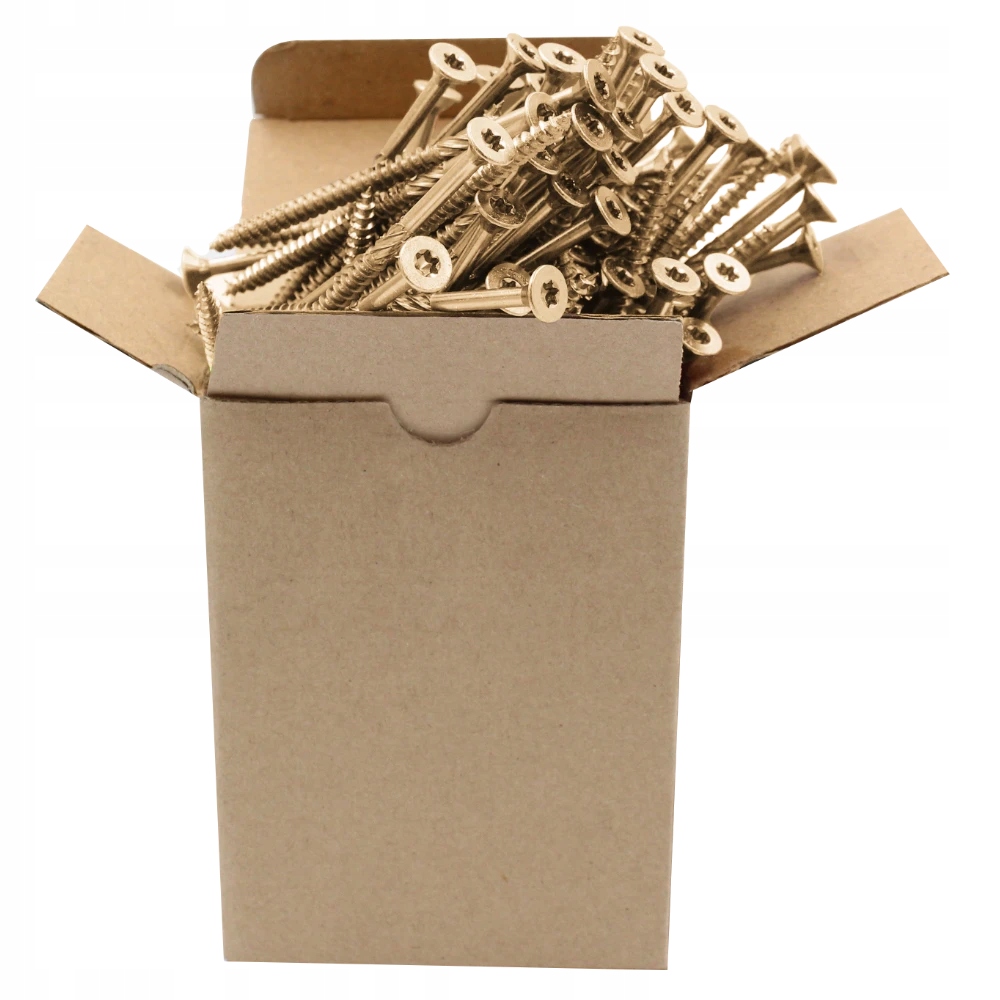

Vis Charpente Bois Azmet WT, 5 x 120 mm, Empreinte Torx, Tête Fraisée, Boîte 100 Pièces

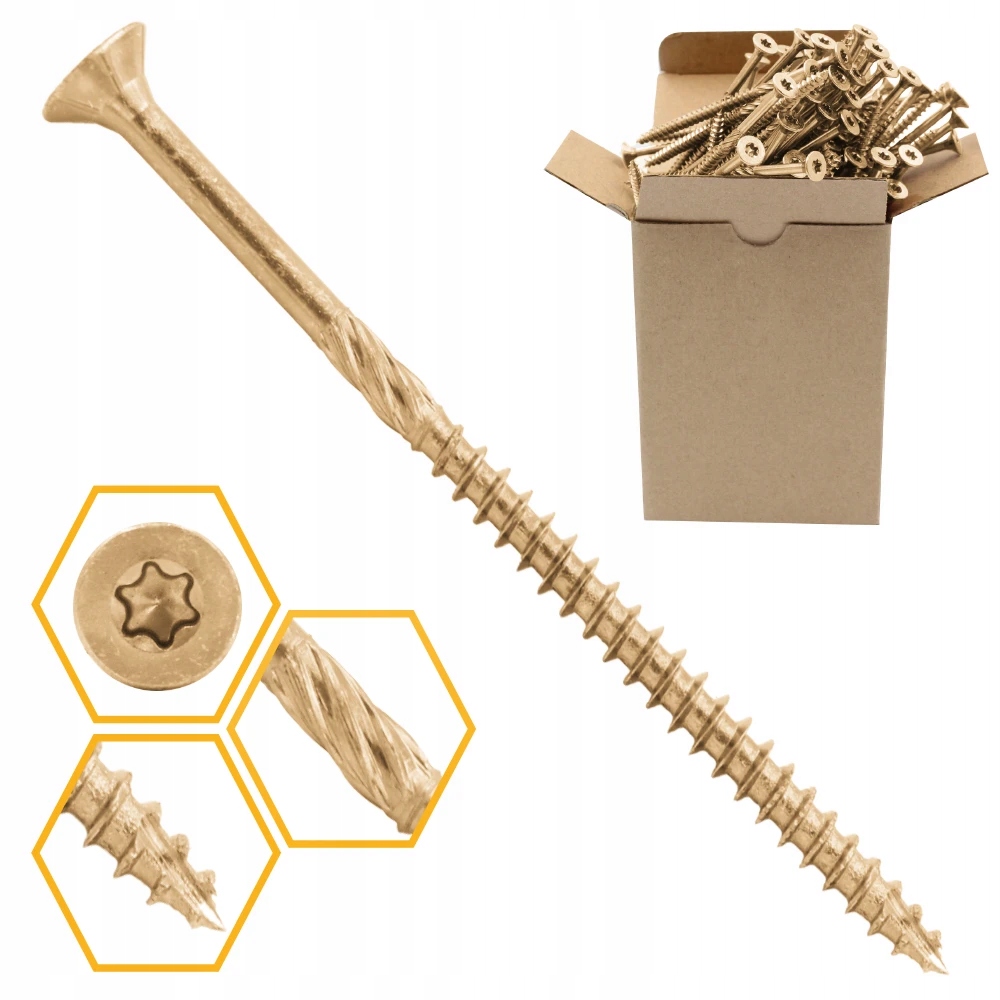

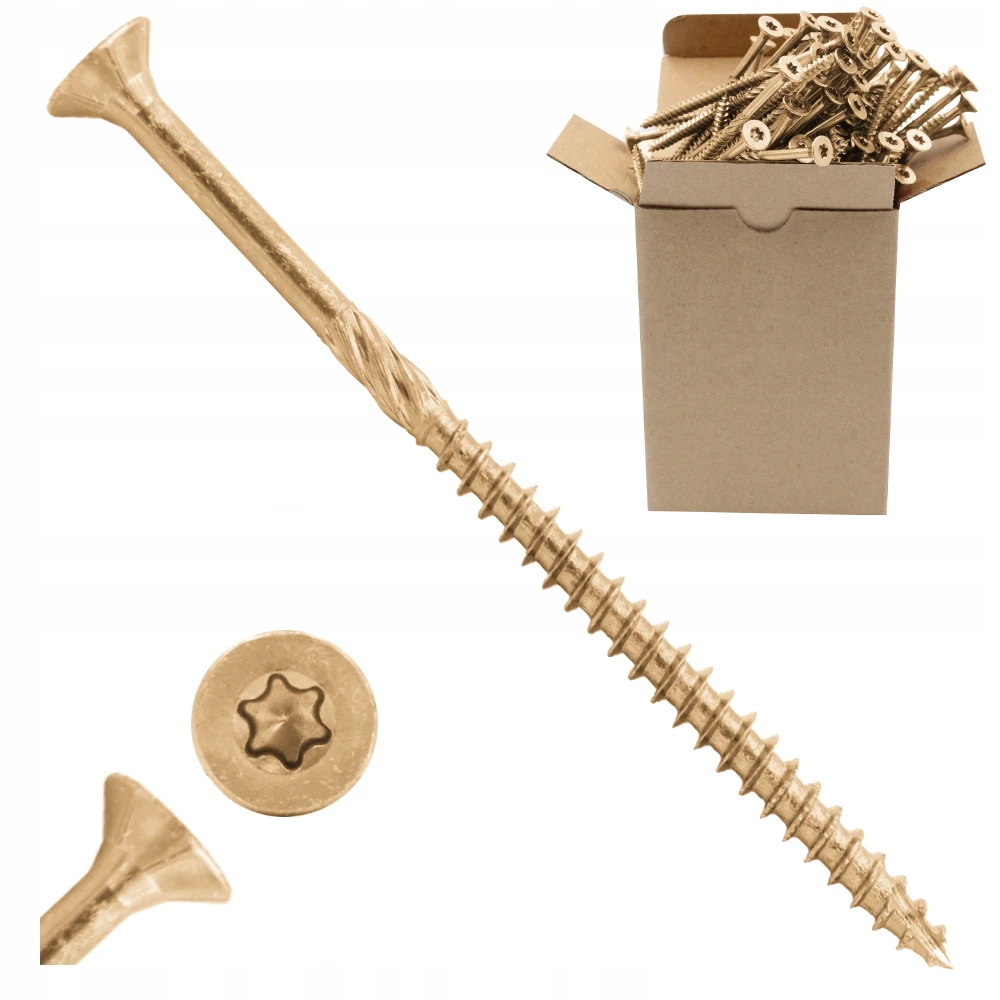

Vis Charpente Bois Azmet WT, 5 x 120 mm, Empreinte Torx, Tête Fraisée, Boîte 100 Pièces

➡️ Technical Parameters

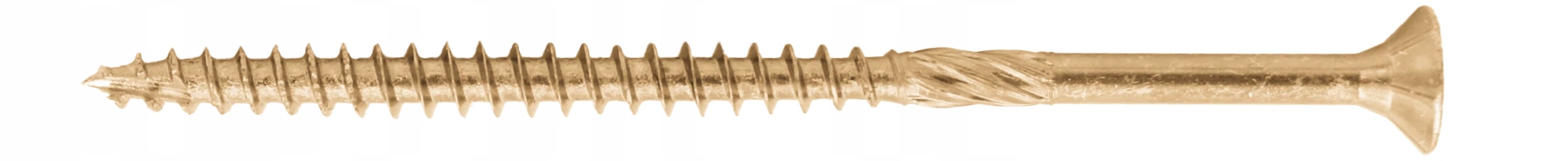

Dimensions of the screw (l x d) - 120 x 5mm

Diameter of the screw (dw) - 5mm

Length of the screw (Lw) - 120mm

Length of the working thread of the screw (lg) - 72mm

Diameter of the head of the screw (dh) - 9.5mm

Material - low carbon steel protected by galvanizing

Type of screw socket - TX25

➡️ Description

The cone screws with serrated threads are extremely necessary tools in construction or carpentry. Their unique design is characterized by a durable and secure installation in wood. The serrated thread is designed to allow better penetration and a better hold in the wood structure. The serrations on the thread cut the wood fibers during screwing, allowing the screw to penetrate deeper and hold more firmly than traditional screws. The design of the screw makes it relatively easy to screw in by hand or with the help of electric tools.

➡️ Features and Benefits

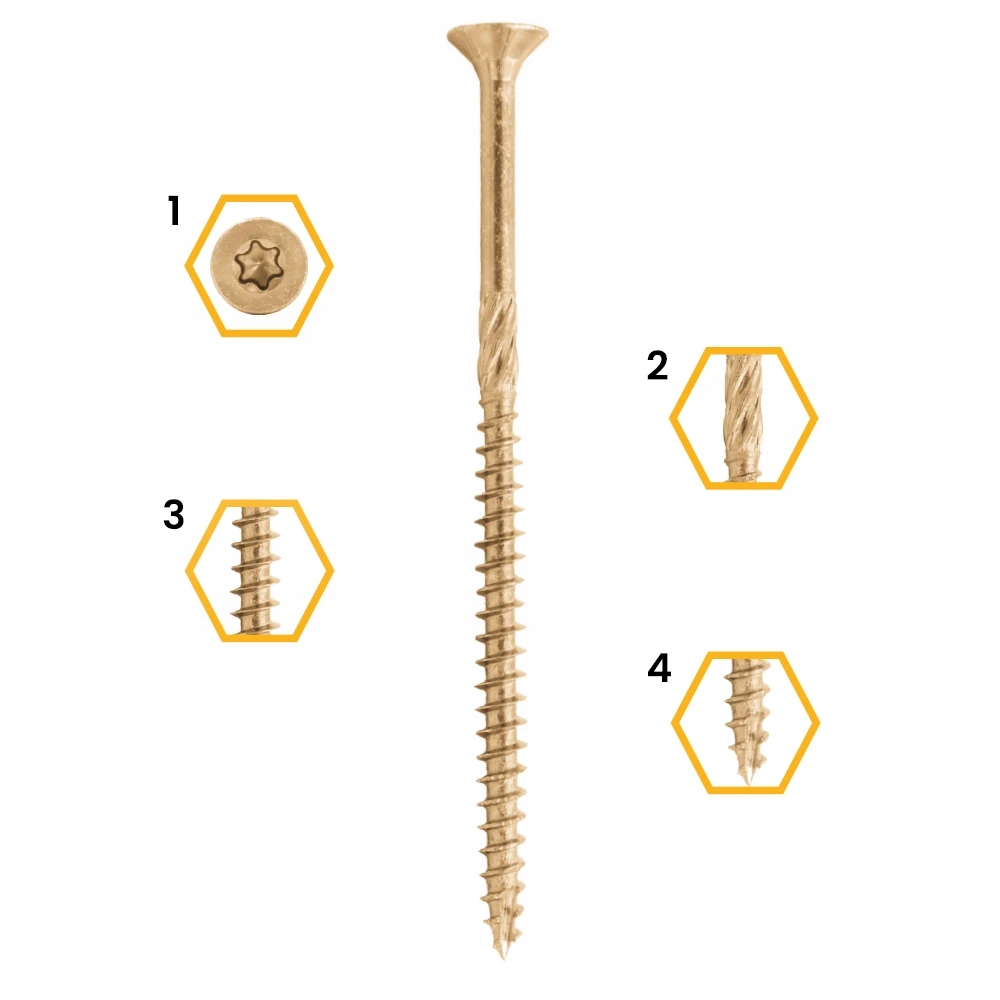

1. Cone head with TX socket

The cone head allows the screw to sink properly into the component being fixed. The TX socket ensures optimal torque transfer.

2. The cutter widens the hole, reduces the torque needed for screwing, and improves work comfort.

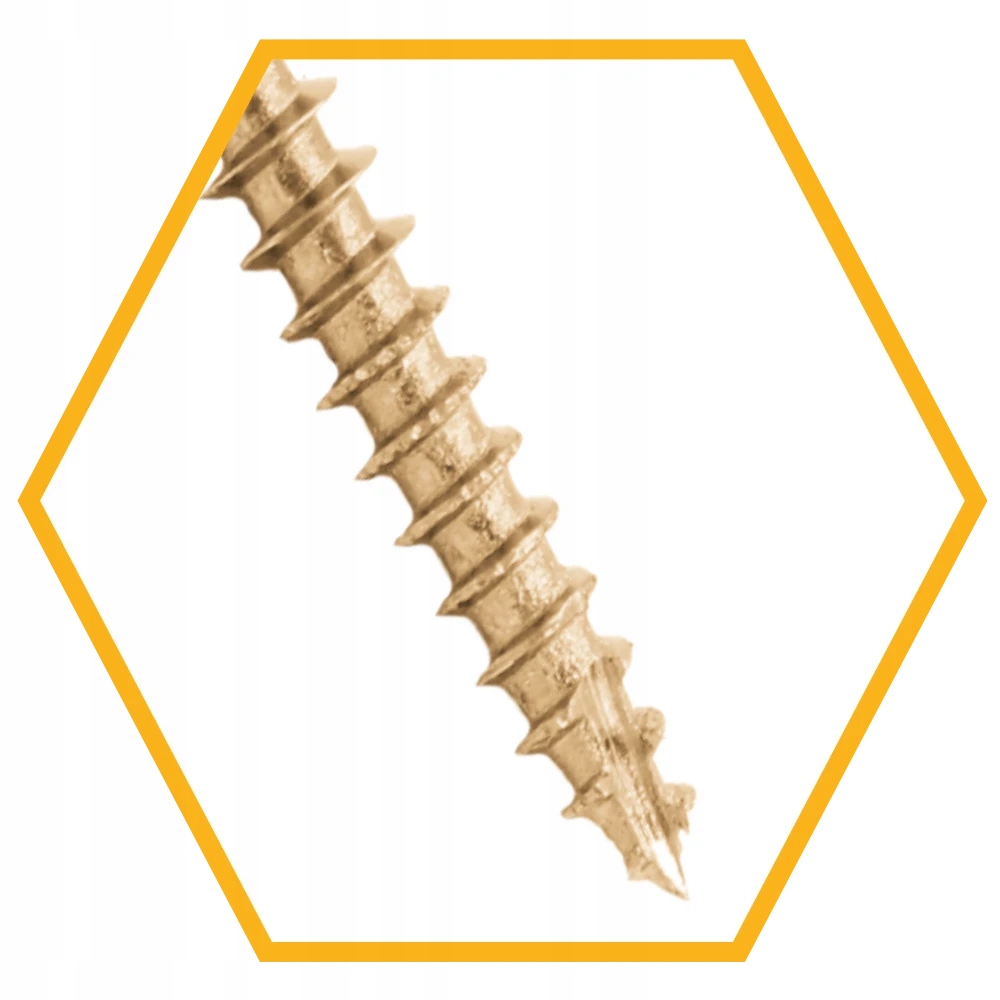

3. The notch of the cutter cuts the fibers and prevents the wood from splitting, which reduces the torque needed for screwing.

4. The bit with cutter allows comfortable screwing without pre-drilling.

➡️ Application

Assembly:

• Furniture
• Wood constructions
• Window frames
• Door frames

➡️ Mounting Method

Before mounting, it is advisable to choose the appropriate screw length, depending on the thickness of the components to be fixed and the minimum anchoring depth. The wood elements to be assembled must be free from defects (knots, cracks, stains, rot, construction and shape defects, mechanical damage). The screws must be screwed directly into the wooden support without pre-drilling. The screws have a serrated thread designed to allow them to penetrate and hold better in the wood structure. The serrations on the thread cut the wood fibers during screwing, which allows for deeper penetration and a firmer hold than traditional screws.

➡️ Certificates

• European certificate
• The screws have been manufactured in accordance with the PN-EN 14592-2008 standard.

This European standard specifies the requirements and testing methods for the materials, geometry, strength, stiffness, and durability (i.e., protection against corrosion) of fastening elements used in load-bearing wooden structures.

➡️ About the Manufacturer

Azmet was established in 1989 and has a well-established position in the market, enjoying the trust of many partners. The company provides the highest quality products. The company is constantly developing, expanding its offering to meet the needs of the most demanding customers.

➡️ Product

Azmet 100% original from the official Polish distributor.

We offer other Azmet products.
