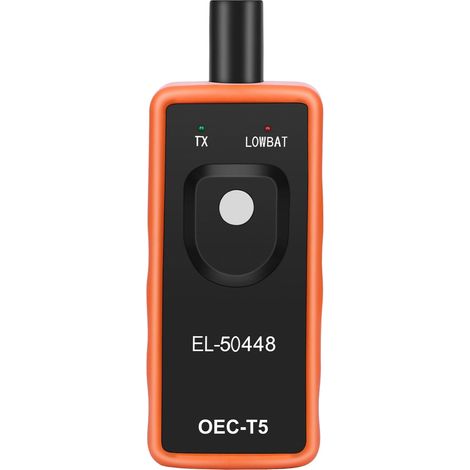

TPMS El-50448 Oec-t5 Opel : système surveillance pression pneus, outil réinitialisation

This is a tire pressure reset instrument, or a learning suggestion. After each tire rotation, tire replacement, body control module and tire pressure sensor replacement, the sensor reset procedure must be performed to ensure that the tire pressure value is obtained and displayed correctly. Operating steps:

1. Make sure that the car is in TPMS learning mode/mode.
2. Follow the vehicle maintenance procedure, hold the instrument in order (front left, front right, rear right, rear left), align it with the tire sidewall near the valve stem (gas filling inlet), and press the reset button.
3. At this time, the green LED light (TX light) will light up, indicating that the signal is being sent. When the car buzzer sounds, the matching is successful.
4. Match other tires in turn.

Specifications:

The compact design makes it portable and easy to carry. Check tire pressure in real time. Only certain designated diagnostic tools can be used to read the tire pressure sensors on 2012 and later models. It has diagnostic sensing function. It is universal and suitable for most cars. For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, the sensor relearn procedure must be performed after the tires have been rotated, the remote key receiver module has been replaced, or the tire pressure sensor has been replaced. This relearn procedure can be performed with the special tool EL- 5 0 4 4

1. This procedure is also applicable to 2014 GM models.

Package includes:

1 * Tire Pressure Reset Tool
