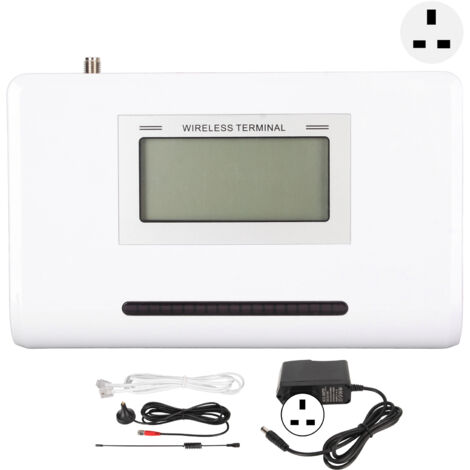

Terminal GSM Fixe avec Écran 4G Quadri-Bande, Signal Fort, Identification Appelant, Port RJ11, Alimentation 100‑240V, Prise UK

1、With Screen: GSM caller comes with a screen so you can clearly see the data, reverse polarity signals, and can be connected to billing devices or use computer billing devices. 2、Support Voice Service: Use this terminal to make local, national and international calls by connecting to a regular wired desk phone and a standard SIM card. 3、Strong Signal Reception: GSM ID dialer is easy to install, simple to operate, strong signal reception, clear call settings, long service life and stable performance. 4、Multi Group IP Setting: Fully automatic IP function, multi IP setting, using GSM 4G cell phone SIM card, no change of original dialing habit, easy to use. 5、Widely Used: GSM caller is suitable for remote villages, mountainous areas, houses with weak signals, public telephone stores, offices, telemarketing, ships and other mobile places.

Item Type: Fixed Wireless Terminal
Material: ABS
Voltage: 100-240V
Product Size: LxWxH, Approx. 16.2 x 10 x 3.8cm / 6.4 x 3.94 x 1.5in ( Manual Measurement, Slight Error May Exist)
Installation: No need to invest in ground wired line, support 4G/GSM cell phone SIM card. Easy installation
Voice Services: Support International and Domestic, Local, Fixed/Mobile Voice Services
Operation: Do Not Change the Original Dialing Habits, and the Operation Habits of Ordinary Telephone Landlines Are the Same
Antipodal Signal: With Antipodal Signal, Can Be Connected to the Fare Register or Use a Computer Fare Register.
Watchdog: Inbuilt Watchdog Circuit on Duty. Automatically Detects the Running Status of the Device, and Restarts Automatically when a Fault Occurs
No Error: DTMF Transmission Mode, the Caller ID Error is 0
Communication Voltage: Standard Communication Voltage, Which Can Be Connected to the PABX
IP Function: Automatic IP Function, Multiple Groups of IP Settings
Calling Party: Calling Party IP Prefix of Fixed Long Distance Calling, Such As 17951, 17911, and 193, etc.
Permission Setting: Permission Setting of Incoming Call of International, National, and Local Calls
Code Preset: Preset Local Area Code, Local Number Segment, and Forbidden Number or Number Segment
Encryption Settings: Such As PIN, PUK Encryption Machine Card Locking Function
LED Lights: Display Signal, Standby State, Working State and Other Information
Caller ID: Yes
Interface form: RJ11
Support network: (Different countries use different frequencies, EC25 EU for Europe, EC25 AF for the United States, EC25 AU for Australia. (Please confirm the frequency of use in your area before purchase.)
EC25 EU:
TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
EC25 AF:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
EC25 AU:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Recording Function: None
Signal Sensitivity: <-104DBM
Transmit Power: <2W
Antenna Power: >1.5db
Power Supply: 5V 1A
Equipment Power: <5W
RJ11 Standby Voltage: DC 40 to 48V
RJ11 Working Voltage: DC 8 to 12V
RJ11 Dial Tone Frequency: 450HZ
RJ11 Feed Current: 20MA to 40mA
RJ11 Reversed Polarity: Supported
RJ11 Call: DTMF
Working Environment Temperature: Minus 20℃ to 50℃
Operating Environment Relative Humidity: 10 to 90%

1 x Fixed Wireless Terminal

1 x Power Plug

1 x Antenna

1 x Antenna Receiver

1 x Phone Line

1 x User Manual
