Système d'alarme voiture 12V universel avec démarrage/arrêt bouton et protection anti-vol

Welcome to our shop! This product is a car alarm system with various features to ensure your vehicle's safety. Here are the key features:

1. Sound and light alarm: This system has an emergency alarm function that triggers a loud horn and flashing lights in case of theft or unauthorized access.

2. LED flashing: After the acousto-optic alarm is activated, the LED lights will automatically flash, providing a visual deterrent to potential thieves.

3. Secret lock function: The engine will be automatically locked 15 seconds after the vehicle stops and shuts down, adding an extra layer of security.

4. One-key start and flameout: This system allows for convenient starting and shutting down of the engine with just one key.

5. Nighttime starting indicator: To assist you in finding the starting button in the dark, the indicator light on the button will illuminate for 2 seconds after you step on the brake, ensuring easy access.

Specification:

- Condition: 100% Brand New

- Working voltage: DC=12V (24V power supply is not supported)

- Standby current: 8mA (can standby for up to 2 months continuously)

- Package Size: 23 * 15.5 * 9.5cm / 9.1 * 6.1 * 3.7in

Product Function:

1. Sound-light alarm: Activated by pressing the set button, this feature triggers an anti-theft alert with a loud horn, flashing lights, and engine shutdown in case of unauthorized access or impact.

2. Mute anti-theft: Pressing the mute button activates the anti-theft alert without sound.

3. Warning release: The release button unlocks the door and deactivates the alarm system.

4. Emergency alarm: If the side door is triggered, the horn will alarm for 30 seconds, and the car cannot be started.

5. Remote control rear door: If your car has a rear door motor, pressing the release button for 2 seconds will automatically open the rear door.

6. Central door lock automation: The system automatically locks the doors 15 seconds after driving and unlocks them when the car stops and turns off. You can also manually lock and unlock the doors.

7. Car search: Pressing the mute button flashes the direction lights for 15 seconds, making it easier to locate your car. Pressing the set button for 2 seconds activates the alarm and flashes the lights for car search.

8. Mayday/overtaking: Pressing the "find car" button triggers the horn to sound and the lights to flash for emergency situations.

9. Trigger memory: The system remembers when it has been triggered, indicated by two horn beeps.

10. Automatic reply: If the door is not opened within 25 seconds after deactivating the alarm, the system will automatically revert to the alarm state and relock the doors.

11. Emergency call (anti-robbery): By pressing the mute button twice within 30 seconds, the system enters an anti-robbery state with flashing lights.

12. Prompt setting anti-theft: After stopping the car, the direction lights flash three times after 10 seconds, reminding you to activate the anti-theft system.

13. Power off memory: After a power outage, the system will revert to the previous alarm state when power is restored.

14. Warning light: The LED flashes during the alarm, and stays on when triggered by vibration.

15. Emergency relief: In the anti-theft state, opening the door or turning the key 10 times will deactivate the alarm.

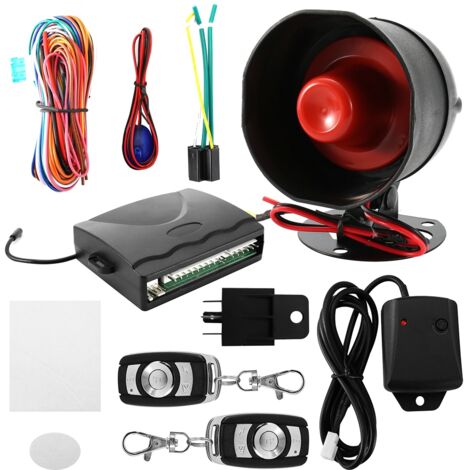

Package List:

- 1 * Main Unit

- 1 * Horn

- 1 * Vibration Sensor

- 1 * Detection Line

- 1 * Disconnect Relay

- 1 * LED Indicator Light

- 2 * Intelligent remote control

- 1 * Glue Slice

Installation Note:

1. If your vehicle has a steering wheel lock, unlock it in the ACC gear before installation to prevent power consumption.

2. For vehicles with an anti-theft chip, remove the chip from the original vehicle and place it in a scan-accessible area to ensure successful startup.

3. When installing the base of the start button, be cautious of interference with the original car's anti-theft chip. Choose alternative areas or use padding for proper placement.

4. Connect the output wires accordingly, ensuring proper connection and power supply.

5. For vehicles with only 4 output wires, follow the specified connections for ACC, ON, ignition starting line, and fire line.

6. For vehicles with 6 output wires, determine the function of the sixth wire by testing its power supply in different key positions (ACC, ON, start).

7. Ensure a secure and proper ground connection to avoid starting difficulties or indicator light issues.
