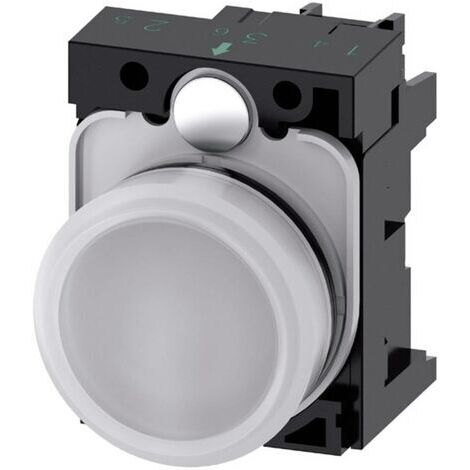

Siemens 3SU1102-6AA60-1AA0 Voyant lumineux plat blanc 24 V/AC, 24 V/DC 1 pc(s)

Informations techniques

Classe d'efficacité énergétique 2021 : non pertinent
Connexion (composants) : raccord à vis
Couleur : blanc
Diamètre de montage : 22 mm
Dimension produit, Ø : 29.45 mm
Dimensions produit, hauteur : 40 mm
Dimensions produit, largeur : 30 mm
Indice de protection : IP66, IP67, IP69/IP69K
Modèle (général) : Plastique
Spécificités de l'interrupteur/bouton : plat
Température (max.) : +70 °C
Température (min.) : -25 °C
Tension de fonctionnement : 24 V/AC, 24 V/DC

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Several colors, different voltage variants. Note: Complete unit, delivery includes holders and modules. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
