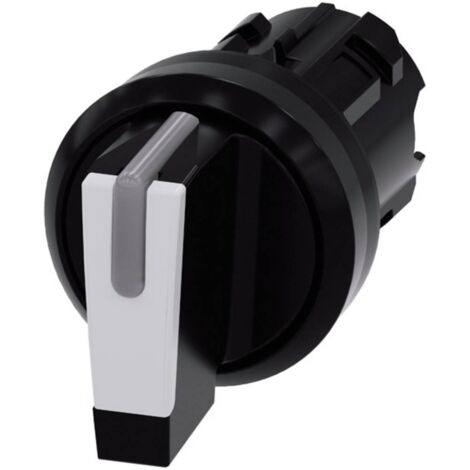

Siemens 3SU10022BL600AA0 3SU1002-2BL60-0AA0 Commutateur à manette collerette plastique noir, blanc 2 x 45 ° 1 pc(s)

Informations techniques

Angle de commutation : 2 x 45 °
Connexion (composants) : élément de contact externe, élément LED externe
Couleur : noir, blanc
Couleur d'éclairage (ampoule LED) : blanc
Diamètre de montage : 22 mm
Dimensions produit, hauteur : 32.3 mm
Dimensions produit, largeur : 32.3 mm
Durée de vie (mécanique) : 1 000 000
Fonctions (interrupteur/bouton) : à accrochage
Forme (type) : rond
Indice de protection : IP66, IP67, IP69K
Motif d'impression : flèche
Position de commutation : 1 x On/Off/On
Spécificités de l'interrupteur/bouton : collerette plastique
Température (max.) : +70 °C
Température (min.) : -25 °C
Type d'éclairage : symbole en forme de flèche

Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h Selector switches SIRIUS ACT for switching and controlling electrical loads. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation. Note: Single device, please order holders and modules separately. SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
