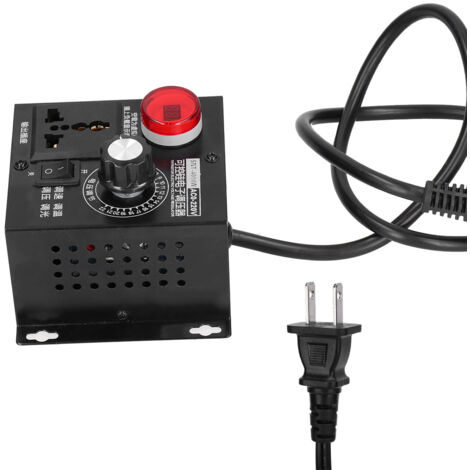

Régulateur de tension 4000W variateur haute puissance thyristor AC110V/220V prise US

32,99€
Produit similaire livré par
Socla – Réducteur de pression mâle/mâle DN 3/4' 20mm – Bronze insensible au tartre – Pression réglable 1 à 5,5 bar – Norme NF
Socla – Réducteur de pression mâle/mâle DN 3/4' 20mm – Bronze insensible au tartre – Pression réglable 1 à 5,5 bar – Norme NF
154,94 €154

Ces articles peuvent vous intéresser !

SmartSolar Victron MPPT 100/50VICTRON
10 options

SmartSolar Victron MPPT 100/50

58

Comparer à des articles similaires

Souvent achetés ensemble

Informations produit

Description

1、With a peak voltage absorption circuit, it effectively protects the high-power SCR anti-surge, anti-spike, RC absorption multiple protection.

2、Original imported chip SCR, all‑aluminum heat sink, high‑temperature circuit board.

3、Built‑in accurate resistance, high voltage capacitor, stable output, no lag and delay.

4、Use multifunctional industrial sockets, thick copper parts, thicker parts inside the copper parts, high current, good contact and safety.

5、Compulsory certification 3C power cord, thick wire, large current, strong twisting and no deformation, low‑quality plug wire thin and there are safety hazards 6、With stepless variable speed adjustment, free control adjustment, no gear limit

Item Type: AC Voltage Regulator

Material: Cold rolled steel, aluminum alloy, thyristor, PCB

Uses: High-power thyristor voltage regulation, speed regulation, temperature regulation, and dimming applications. Household appliances, industrial electrical appliances, scientific test equipment, electrical equipment for factories, schools, etc.

Item

Parameter

Output voltage

0-220V adjustable (Voltmeter does not work when the output voltage is lower than 5V)

Limit power

4000W (adapt to 2000W-3000W resistive load)

Regulating range

0-220V steplessly adjustable (under load condition) step-down to 0V, step-up 10V

Rated current

9A

Limit current

18A

Overload protection switch

Yes

Output power indicator

Yes

Thyristor model

STMicroelectronics, Thyristor: BTA41-600B/800B

Size: Approx.Precautions And Instructions for Use:

1. When the machine is empty, the measured output voltage is a virtual voltage, and a load above 20W must be connected to measure the correct output voltage

2. Input AC power, the output is also AC, not DC.

3. The 4000W mentioned above refers to the limit power when working in a resistive load. The inductive load is 1/3 of the resistive load. The resistive load refers to the tungsten filament lamp, heating wire, etc., and the inductive load refers to the series motor. And so on, there are circuit board electronic products used with caution.

4. The metal shell of this product must be safely grounded

6cm / 2.4in

10cm / 3.9in

9cm / 3.5in

11.5cm / 4.5in

Adjustable equipment: motor class: fans, exhaust fans, ceiling fans, snail fans, and other fans without capacitors. Heating category: electric heating wire, electric heating fan, kettle, electric heating pot, heating rod, etc. Dimming category: tungsten lamps. Power tools: angle grinder, electric screwdriver, hand drill, chainsaw, etc.

Does not support the regulation of equipment: with circuit board electronic products are not supported, single-phase motors, washing machine motors, dual-value capacitor motors, asynchronous motors, pumps, negative pressure fans, centrifugal fans.

1 x

AC Voltage Regulator
