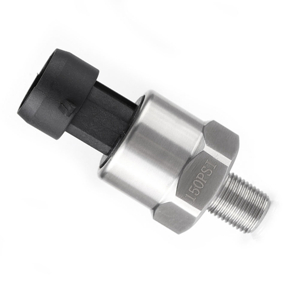

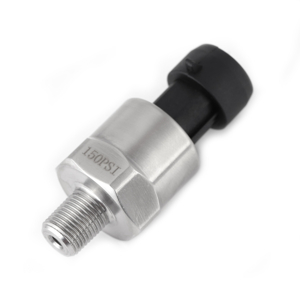

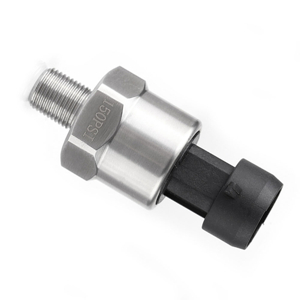

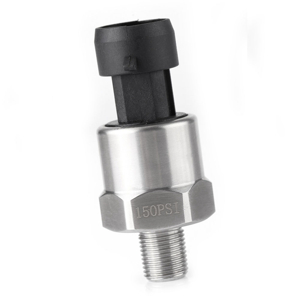

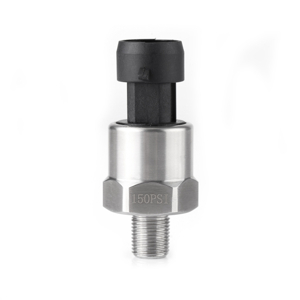

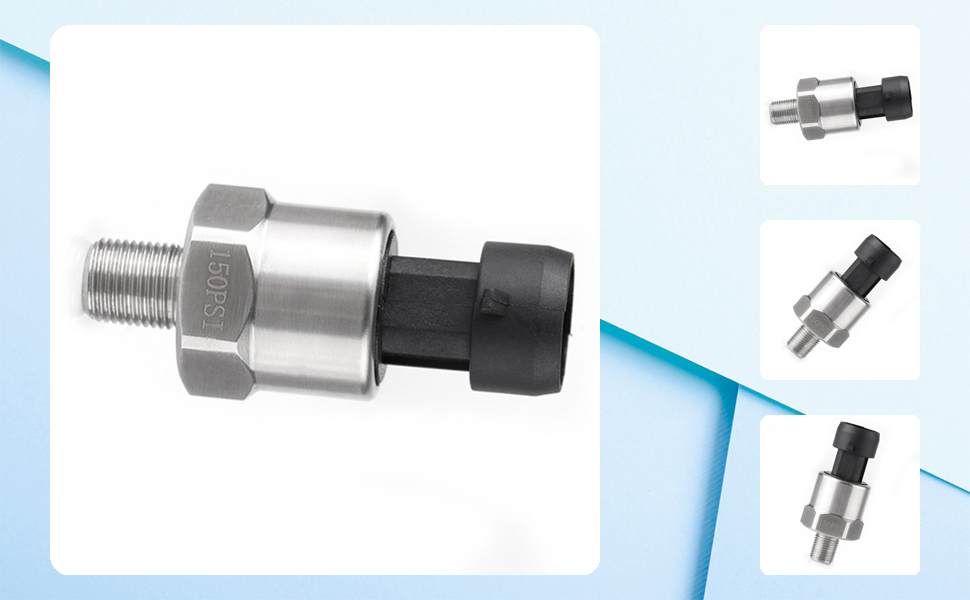

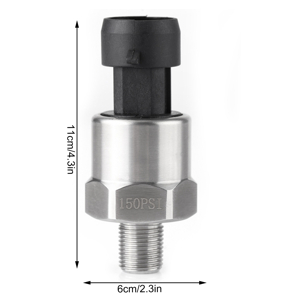

Pressure Transducer, 1/8" NPT Thread Stainless Steel Pressure Sensor for Oil Fuel Air Water(150PSI)

Product Description

Pressure Transducer, 1/8" NPT Thread Stainless Steel Pressure Sensor for Oil Fuel Air Water(150PSI)

[Easy to Use]: The pressure transducer sensor is light weight and small size, convenient to install and operate

[Stable Performance]: The pressure transducer adopts precision compensation technology and sensitive components, which is stable and

[Wide Application]: The pressure transducer sensor works for oil, fuel,, gas, water, air pressure, can be used in oil tank, gas tank, tank etc

Pressure transducer works for oil, fuel,, gas, water, air pressure, can be used in oil tank, gas tank, tank etc.

Specifications:

Material: Stainless steel

Voltage: DC 5V

Pressure: 30 psi, 100 psi, 150 psi (Optional)

Accuracy: within 2% of reading (full scale).

Wiring: Red for +5V; Black for ground; Blue for signal output.

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8"-27 NPT.

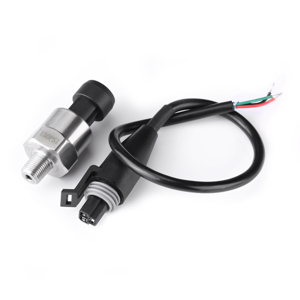

Wiring Connector: Water sealed. Mating connector is included.

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40℃~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance:≤(supply power-6.5V/0.02A)Ω

Long-term Stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃

Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock:≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time:≤1ms

Insulation Resistance: >100mΩ500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1

Package Includes:

1 x Pressure
