Informations produit
Description
Code ErreBi: 23096
Code Producteur: NLT4FX
Producteur: Neutrik
Vendu au pièce

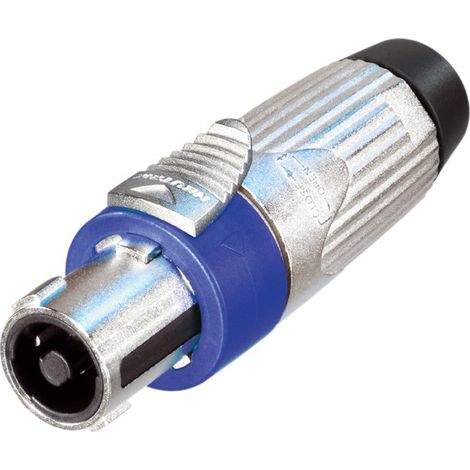

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
Robust and durable all metal housing
Sealing ring provides weatherproof IP54 rating in mated condition
Reinforced metal quick lock system for ease and precise locking
Extra large solder contacts for up to 6 mm² (AWG 10) wires
Mate with all available speakON products
Product
Title: NLT4FX
Connection Type: speakON
Gender: female
Electrical
Contact resistance: < 2 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GO
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.: 9 - 16 mm
Cable retention: = 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: Solder contacts
Locking device: Quick Lock (latch)
Material
Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Strain relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Protection class: IP 54 (mated condition)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Type de produit: Connecteur
Serie: Connecteur de haut parleurs
Ampérage: 30A
Matériel: PA6 (Polyamide 6)
Couleur: Métallique
Température de fonctionnement: -20°C a +80°C
Inflammabilité: 94-HB
Voltage: 250V
Matériel de contact: Laiton
Montage: Sur câble
Genre: Femelle
Nombre de pôles: 4
Orientation: 180°
Plaquage du contact: Argent
Code Producteur: NLT4FX
Producteur: Neutrik
Vendu au pièce
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.
Features & Benefits
Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
Robust and durable all metal housing
Sealing ring provides weatherproof IP54 rating in mated condition
Reinforced metal quick lock system for ease and precise locking
Extra large solder contacts for up to 6 mm² (AWG 10) wires
Mate with all available speakON products
Product
Title: NLT4FX
Connection Type: speakON
Gender: female
Electrical
Contact resistance: < 2 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 10 GO
Rated current per contact: 40 A rms continuous
Rated current per contact: 50 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D.: 9 - 16 mm
Cable retention: = 220 N (subject to cable O.D. and material)
Lifetime: > 5000 mating cycles
Wiresize: 6 mm²
Wiresize: 10 AWG
Wiring: Solder contacts
Locking device: Quick Lock (latch)
Material
Contact plating: 4 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6 30 % GR)
Locking element: Zinc diecast (ZnAl4Cu1)
Shell: Zinc diecast (ZnAl4Cu1)
Strain relief: Polyacetal (POM)
Environmental
Flammability: UL 94 HB
Protection class: IP 54 (mated condition)
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Scheda Tecnica
Type de produit: Connecteur
Serie: Connecteur de haut parleurs
Ampérage: 30A
Matériel: PA6 (Polyamide 6)
Couleur: Métallique
Température de fonctionnement: -20°C a +80°C
Inflammabilité: 94-HB
Voltage: 250V
Matériel de contact: Laiton
Montage: Sur câble
Genre: Femelle
Nombre de pôles: 4
Orientation: 180°
Plaquage du contact: Argent
Caractéristiques
- MarqueNEUTRIK
- Poids78 g
- Tension électrique250 V
- MatièresPolyamide (Pa)
- Quantité par pack1
