Informations produit
Description
Code ErreBi: 64584
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Features:

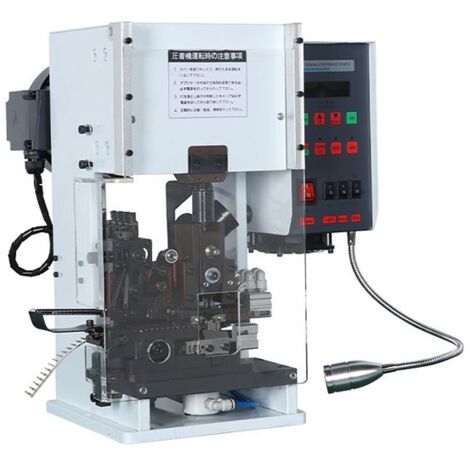

1. EW-50A is specifically designed for the application of wire stripping and crimping, the stripping function can be turned off by operator if it is not necessary.
2. The pneumatic components from famous brand ensure the efficiency and stability during the stripping process.
3. User-friendly and simple control panel.
Technical data:
Model: RBEW50A2
Cable section: 36-16 AWG
Stripping length: 1-10 mm
Length accuracy: 0.002*L (mm)
Stroke: 30mm
Crimping force: 2T
Puissance : 750 W
Opening height mini applicator: 215 mm
Compressed air connection: 0.3 - 0.4 MPa
Weight: 80 Kg
Scheda Tecnica
Type de produit: Machine de sertissage des embouts isolés
Watts: 750W
Voltage/Fréquence: AC: 110-220V, 50/60Hz
Dimensions: 530x400x830 (L x W x H) mm
Section de câble AWG: 36 - 16 AWG
Force de sertissage: 20 KN (2T)
Longueur de coupe: 1 - 10 mm
Pression d'air: 0.3 - 0.4 MPa
Productivité: 1500 pz/h
Coup de presse: 20 mm
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Features:
1. EW-50A is specifically designed for the application of wire stripping and crimping, the stripping function can be turned off by operator if it is not necessary.
2. The pneumatic components from famous brand ensure the efficiency and stability during the stripping process.
3. User-friendly and simple control panel.
Technical data:
Model: RBEW50A2
Cable section: 36-16 AWG
Stripping length: 1-10 mm
Length accuracy: 0.002*L (mm)
Stroke: 30mm
Crimping force: 2T
Puissance : 750 W
Opening height mini applicator: 215 mm
Compressed air connection: 0.3 - 0.4 MPa
Weight: 80 Kg
Scheda Tecnica
Type de produit: Machine de sertissage des embouts isolés
Watts: 750W
Voltage/Fréquence: AC: 110-220V, 50/60Hz
Dimensions: 530x400x830 (L x W x H) mm
Section de câble AWG: 36 - 16 AWG
Force de sertissage: 20 KN (2T)
Longueur de coupe: 1 - 10 mm
Pression d'air: 0.3 - 0.4 MPa
Productivité: 1500 pz/h
Coup de presse: 20 mm
