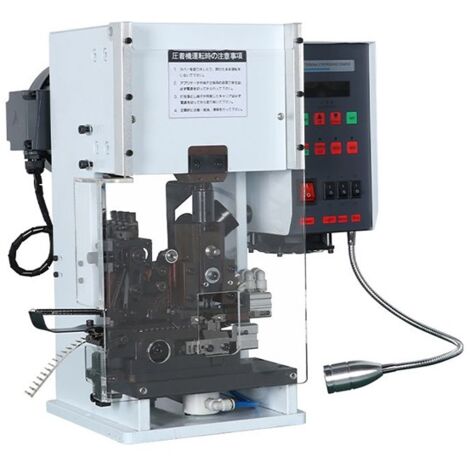

Machine semi-automatique pour dénuder et sertir les cosses avec section de rubanage latéral 26-16 AWG
15 € offerts dès 250 €
avec le code
avec le code
Vous achetez pour votre entreprise ?
+10% offert sur votre 1ère commande
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Dewalt – Perceuse à percussion Brushless XR 18V 90Nm – Moteur Brushless haute performance – 2 vitesses mécaniques – Système Anti-Rotation – Édition limitée McLaren
129,00 €
5
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 64585
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Characteristics:
1. Wire stripper and crimping machine all in one
2. High stability and ultra quiet
3. Designed with automatic skinning department, automatic forward and automatic return function.
4. The stripping part adopts pneumatic components, can quickly complete the stripping operation efficiently and stably.
Technical data:
Model: RBEW50A3
Cable section: 26-16AWG
Stripping length: 1-10mm
Stroke: 30mm
Crimping force: 3T
Motor power: 1100W
Machine power: 1500W
Air pressure: 0.3-0.4 mpa
Power: 220V/110V/50HZ/60HZ
Weight: 120Kg
Dimension: 500*450*1000 mm
Scheda Tecnica
Type de produit: Machine à sertir les bornes
Watts: 1100W
Voltage/Fréquence: AC: 110-220V, 50/60Hz
Dimensions: 500x450x1000 (L x W x H)
Section de câble AWG: 26 - 16 AWG
Force de sertissage: 30 KN (3T)
Longueur de dénudage côté 1: 1 - 10 mm
Matériau de la lame: l'acier au tungstène
Pression d'air: 0.3 - 0.4 MPa
Coup de presse: 30mm
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Characteristics:
1. Wire stripper and crimping machine all in one
2. High stability and ultra quiet
3. Designed with automatic skinning department, automatic forward and automatic return function.
4. The stripping part adopts pneumatic components, can quickly complete the stripping operation efficiently and stably.
Technical data:
Model: RBEW50A3
Cable section: 26-16AWG
Stripping length: 1-10mm
Stroke: 30mm
Crimping force: 3T
Motor power: 1100W
Machine power: 1500W
Air pressure: 0.3-0.4 mpa
Power: 220V/110V/50HZ/60HZ
Weight: 120Kg
Dimension: 500*450*1000 mm
Scheda Tecnica
Type de produit: Machine à sertir les bornes
Watts: 1100W
Voltage/Fréquence: AC: 110-220V, 50/60Hz
Dimensions: 500x450x1000 (L x W x H)
Section de câble AWG: 26 - 16 AWG
Force de sertissage: 30 KN (3T)
Longueur de dénudage côté 1: 1 - 10 mm
Matériau de la lame: l'acier au tungstène
Pression d'air: 0.3 - 0.4 MPa
Coup de presse: 30mm
Caractéristiques
- MarqueERREBI GROUP
- Longueur50 cm
- Fonction coupe-câble intégréeOui
- MatièresAcier
- Protection électriqueOui
- Type de pince à dénuderAutomatique
- Réf. ManoManoME88070639
- MMID435565245946
- Réf. fabricantRBEW50A3
