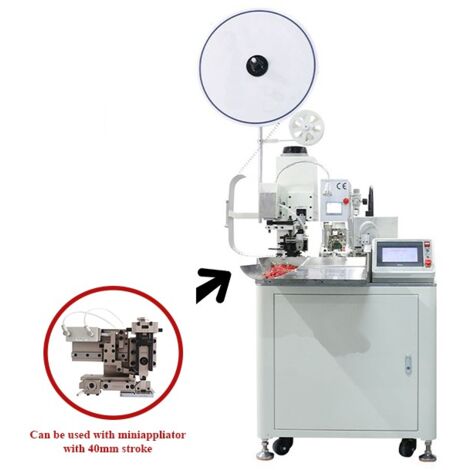

Machine de découpe et de dénudage, sertissage d'un côté pour cosses isolées, avec dispositif de torsion des brins
Produit similaire livré par
Pince à dénuder automatique - STANLEY
21,61 €
130
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 64595
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Technical data:
Model: RBEW22TF240
Cable section: 28-14 AWG
Cut length: 50-9999mm (set 1mm unit)
Cut precision: ±1 (l+0.002*L) mm, L=cut length
Stripping length: 1.5-1.0mm
Crimping force: 2.0T
Power: 220V/110V/50/60HZ
Productivity: 3000pcs/hour
Compressed air: 4-6kgf
External dimensions: 700mm*800mm*1500mm
Weight: 348 Kg
Function: Both ends cutting stripping, single end sealing
Detection unit: Wire/Terminal loss; Wire tangling; Low air pressure
Stroke: 40mm
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
REMARQUES : AU MOMENT DE L'ACHAT, PRÉCISEZ LE TYPE DE TERMINAL QUE VOUS ALLEZ APPLIQUER SUR LE MINI APPLICATEUR
Vendu au pièce
Technical data:
Model: RBEW22TF240
Cable section: 28-14 AWG
Cut length: 50-9999mm (set 1mm unit)
Cut precision: ±1 (l+0.002*L) mm, L=cut length
Stripping length: 1.5-1.0mm
Crimping force: 2.0T
Power: 220V/110V/50/60HZ
Productivity: 3000pcs/hour
Compressed air: 4-6kgf
External dimensions: 700mm*800mm*1500mm
Weight: 348 Kg
Function: Both ends cutting stripping, single end sealing
Detection unit: Wire/Terminal loss; Wire tangling; Low air pressure
Stroke: 40mm
Caractéristiques
- MarqueERREBI GROUP
- Longueur70 cm
- MatièresMétal
- Garantie2 an(s)
- Type de pince à dénuderAutomatique
