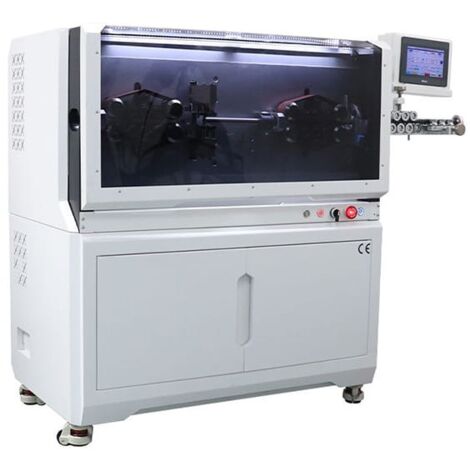

Machine automatique pour couper et dénuder les câbles unipolaires et multipolaires
Vous achetez pour votre entreprise ?
+10% offert sur votre 1ère commande
Tarifs négociés HT jusqu'à -20%
Passer à un compte proProduit similaire livré par
Makita – Découpeuse 36V 2 x 18V Li-Ion 230 mm – Capacité de coupe 88 mm – Moteur sans charbon – Système d'alimentation en eau intégré
470,90 €
7
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 65731
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
Vendu au pièce
Technical data
Model: RBEW05H+
Conductor section: 2.5 - 120 mm2
Cable: single core cable, multi core cable, sheathed cable, PVC cable etc.
Cutting length: 1-999,999.9 mm
Cutting length tolerance: < 0.002 * L (L = cutting length)
Maximum diameter of the guide tube: 27 mm
Productivity: 2000 pcs/h (single core cable)
900 pcs/h (multi-conductor cable)
Blade material: Steel
Display mode: 7 inch touch screen
Driving Mode: Servo motor cutting with 24 roller driving system
Feeding mode: Tape feeding with pressure stripping function
Power supply: 110, 220 V (50 - 60 Hz)
Power: 1.1 kW
Air pressure: 0.5 - 0.8 MPa
Weight: 260 kg
Dimensions: 1020*590*1440 mm
Remarks: Customized options by sending samples
DÉLAIS DE LIVRAISON DES ARTICLES NON DISPONIBLES : 70 JOURS.
POUR LES LIVRAISONS URGENTES SOUS 3 SEMAINES CONTACTEZ-NOUS EN PRIVÉ
Vendu au pièce
Technical data
Model: RBEW05H+
Conductor section: 2.5 - 120 mm2
Cable: single core cable, multi core cable, sheathed cable, PVC cable etc.
Cutting length: 1-999,999.9 mm
Cutting length tolerance: < 0.002 * L (L = cutting length)
Maximum diameter of the guide tube: 27 mm
Productivity: 2000 pcs/h (single core cable)
900 pcs/h (multi-conductor cable)
Blade material: Steel
Display mode: 7 inch touch screen
Driving Mode: Servo motor cutting with 24 roller driving system
Feeding mode: Tape feeding with pressure stripping function
Power supply: 110, 220 V (50 - 60 Hz)
Power: 1.1 kW
Air pressure: 0.5 - 0.8 MPa
Weight: 260 kg
Dimensions: 1020*590*1440 mm
Remarks: Customized options by sending samples
Caractéristiques
- MarqueERREBI GROUP
- MatièresAcier
- Poids260 kg
- Réf. ManoManoME88070672
- MMID530788022185
- Réf. fabricantRBEW05H+
