Jauge D'épaisseur Numérique À Ultrasons 1.5～200mm 0.06-8inch Mesure de Précision
Vous achetez pour votre entreprise ?
+10% offert sur votre 1ère commande
Tarifs négociés HT jusqu'à -20%
Vendu par SDAFC
Informations produit
Description
-

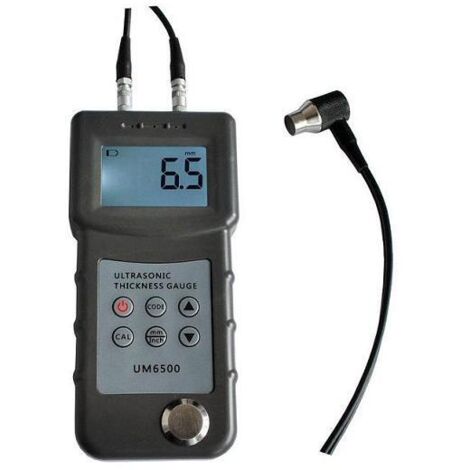

- The UM6500 ultrasonic thickness gauge is a low-power, low limit pocket sized measuring instrument that can measure various materials with good ultrasonic conductivity.
This instrument can accurately measure various plates and processed parts, monitor various pipelines and pressure vessels in production equipment, and monitor their thinning degree after corrosion during use. Widely used in various fields such as petroleum, chemical, power plant, metallurgy, shipbuilding, aviation, aerospace, machine manufacturing, pressure vessels, chemical equipment boilers, oil storage tanks, etc.
Measurable materials: steel, cast steel, aluminum, brass, zinc, quartz glass, polyethylene, gray cast iron, ductile iron, ceramics, plastics, and more than ten other materials
Usage environment: Operating temperature: 0-40 ℃ Humidity: ≤ 90% RH. There is no strong vibration, strong magnetic field, corrosive medium, or severe dust in the surrounding environment.
Measurement range (metric/imperial): 1.5-200mm 0.06-8inch Resolution: 0.1mm Accuracy: ± (0.5% n+0.2) Power supply: 4 No. 5 batteries
Large screen LCD digital display with high brightness backlight, convenient for use in low light environments; Coupling status prompt function for free conversion between metric and imperial systems; Low battery indicator function; Automatic shutdown and power-saving function.
Standard configuration:
Host 1
5M Ø 8 sensor 1
Coupling agent 1
Instruction manual 1
Portable Box 1
Calibration block 1 (on the host)
Caractéristiques
- MarqueMIMIY
- Quantité par pack1
- Alimentation électriquePiles
- MatièresABS
- Type de mesureUltrasons
- Réf. ManoManoME213077913
- MMID893115573572
- Réf. fabricantHD228-260422011
