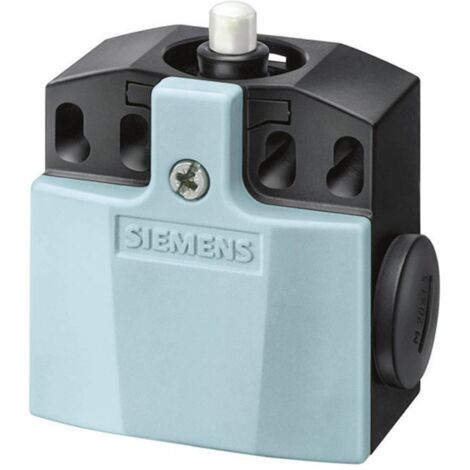

Siemens 3SE52420CC05 3SE5242-0CC05 Interrupteur de fin de course 240 V/AC 1.5 A poussoir à rappel IP67 1 pc(s)
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Informations techniques
Connexion (composants) : raccord à vis
Courant de commutation (max.) : 1.5 A
Dimensions produit, hauteur : 53 mm
Dimensions produit, largeur : 50 mm
Dimensions produit, profondeur : 33 mm
Fonctions (interrupteur/bouton) : à rappel
Indice de protection : IP67
Matériau : plastique
Ouverture contact : Contact à ressort
Taille du filetage : M20
Tension de commutation : 240 V/AC
Type d'actionnement : poussoir
Type de contact (LOV) : 1 NO (T), 2 NF (R)
position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC quick action contacts, rounded plunger Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment. The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available. Safety is a SIRIUS business.
Configuration requise
- null
- null
Caractéristiques
- MarqueSIEMENS
- Longueur5 cm
- Largeur5 cm
- Hauteur5.3 cm
- Tension électrique240 V
Impact environnemental
- OrigineFabriqué en Allemagne
