Interrupteur de Détection de Mouvement Infrarouge 360° avec Temporisateur pour Plafonnier LED

1、Infrared PIR Motion Sensor: It can detect human movement by detecting infrared ray emitted by human body.

2、Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the light during the daytime or strong light environment, or you can choose to turn on the light during the any light environment.

3、360 Degrees Cone Angle Detecting Range: High and stable sensitivity, effectively save energy and improve efficiency.

4、Adjustable Time Delay: intelligent sensing, it will automatically close after a delay after the person leaves. After it is turned on within the delay period, if there is no human activity, there is a time for delaying the work for a certain period of tim

5、Wide Applications: Widely used on the motion-activated lighting, corridors, bathrooms, basements, warehouses, garages and other places, automatic exhaust ventilation fan and other electrical appliances and other functions. Temperature Compensation: Built

Description:

This switch with PIR Infrared Motion sensor

detector, can be used in corridors, bathrooms, basements, warehouses, garages

and other places to achieve automatic control functions. High and stable

sensitivity, effectively save energy and money for you.

Features:

Infrared PIR Motion Sensor: It can detect

human movement by detecting infrared ray emitted by human body.

Intelligent Brightness Sensor: It adopts

photosensitive control, it will not turn on the light during the daytime or

strong light environment, or you can choose to turn on the light during the any

light environment.

360 Degrees Cone Angle Detecting Range: High

and stable sensitivity, effectively save energy and improve efficiency.

Adjustable Time Delay: intelligent sensing,

it will automatically close after a delay after the person leaves. After it is

turned on within the delay period, if there is no human activity, there is a

time for delaying the work for a certain period of time and adjusting the delay

time within the appropriate range.

Wide Applications: Widely used on the

motion-activated lighting, corridors, bathrooms, basements, warehouses, garages

and other places, automatic exhaust ventilation fan and other electrical

appliances and other functions.

Temperature Compensation: Built-in

temperature compensation chip, reducing the impact sensing distance by the

temperature.

Specifications:

Product model number: TDL-9958R

Functional Description : Relay Control Load

Operating voltage: 12V

Working temperature: -10 °C ~ +40 °C

Static power consumption: 0.05W

Load power: 100W

Load capacity: all kinds of lamps, all

kinds of electrical appliances

Output Mode: Inductive Output

Light control range: 5Lux ~ 500Lux ± 20%

(adjustable sensitivity)

Delay range: 30~350s, ± 30% (adjustable

delay)

Induction mode: passive

Sensing angle: 360 degree cone angle

Sensing distance: 5-7 m

Installation method: suction point

installation/ Ceiling installation

Size: 89*89*40mm/3.5*3.5*1.6inch

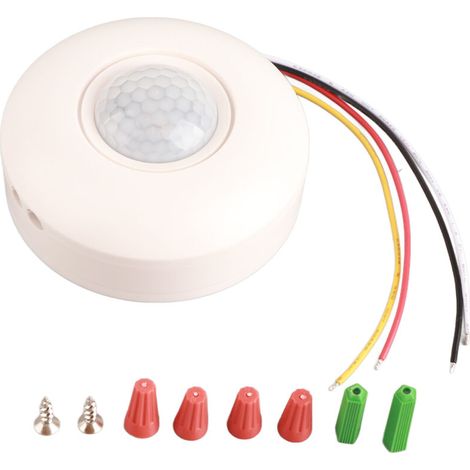

Package List:

1 * Infrared Motion Sensor Switch

1 * Accessories

Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
