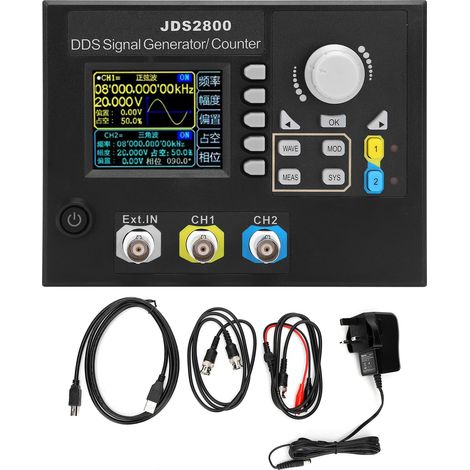

Générateur de Signaux DDS JDS2800 15MHz, Double Canal, Écran LCD 2.4 Pouces, Alimentation AC100-240V avec Prise UK

1、Adopting 2.4‑inch high‑definition color LCD display, smooth operation and quick response speed.

2、With silicone shortcut keys, it feels comfortable and simplifies the operation steps.

3、The pulse width and pulse cycle time of the pulse waves can be digitally adjusted accurately.

4、It adopts high‑quality flame‑retardant shell, which is beautiful and easy to integrate into equipment such as experiment bench.

5、Dual channels with equal performance can simultaneously output the same or different function signals or arbitrary wavesform signals. 6、Widely used in scientific research and technical engineering, electronic instrument testing and maintenance, school experiment teaching, electronic design competition. 7、All parameters can be adjusted independently, and the phase difference between the two channels is continuously adjustable from 0-359.9 degrees. 8、Provide upper computer software and communication protocol to facilitate customer secondary development, with function of drawing arbitrary waveforms. 9、Use sine waves, square waves, sawtooth waves, or arbitrary waves to generate pulse train, the number of pulse period is continuously adjustable between 0-1048575.

Condition: 100% Brand New

Item Type: Signal Generator

Material: Silicone, ABS (Flame Retardant)

Model: JDS2800-15MHz

Frequency Characteristics:

Sine Waves Frequency Range: 0-15MHz

Square Waves Frequency Range: 0-15MHz

Triangular Waves Frequency Range: 0-15MHz

Pulse Waves Frequency Range: 0-6MHz

TTL Digital Waves Frequency Range: 0-6MHz

Arbitrary Waves Frequency Range: 0-6MHz

Pulse Width Adjustment Range: 100nS-4000S

Square Waves Rise Time: ≤25ns

Minimum Frequency Resolution: 0.01μHz (0.00000001)

Frequency Accuracy: ±20ppm

Frequency Stability: ±1ppm/3 Hours

Waves Characteristics:

Waveform Types: Sine waves, square waves, pulse waves (adjustable duty cycle, pulse width and cycle time can be accurately adjusted), triangular waves, partial sine waves, CMOS waves, DC level (set the DC amplitude by adjusting the offset), half waves, full waves, positive staircase waves, inverse staircase waves, noise waves, exponential rise, exponential fall, multisonic waves, Sinker pulse, Lorentz pulse, and 60 user-defined waveforms

Waves Length: 2048 Points

Waveform Sampling Rate: 266MSa/S

Waveform Vertical Resolution: 14 Bits

Sine Waves:

Harmonic Suppression: ≥45dBc(<1MHz); ≥40dBc(1 MHz~20MHz)

Total Harmonic Distortion: <0.8% (20Hz~20kHz, 0dBm)

Square Waves And Pulse Waves: Overshoot≤5%

Pulse Waves Duty Cycle Adjustment Range: 0.1%-99.9%

Partial Sine Waves Duty Cycle Adjustment Range: 0.1%-99.9%

Sawtooth Waves Linearity: ≥98% (0.01Hz-10kHz)

Output Characteristics:

Amplitude Resolution: 1mV

Amplitude Stability: ±0.5%/5 Hours

Amplitude Flatness: ±5% (<10MHz); ±10% (>10MHz)

Waves Output:

Output Impedance: 50Ω± 10% (Typical)

Protection: All signal output terminals can work within 60 under load short-circuit conditions

DC Offset:

Offset Adjustment Range: Offset≤10-Amplitude/2

Offset Resolution: 0.01 V

Phase Characteristics:

Phase Adjustment Range: 0-359.9°

Phase Resolution: 0.1°

TTL/CMOS Output:

Low Level: <0.3V

High Level: 1V-10V

Level Rise/Fall Time: <20ns

External Measurement Function:

Frequency Counter Function:

Frequency Measurement Range: 1Hz-100MHz

Measurement Accuracy: Continuous adjustment of gate time 0.01s-10s

Counter Function:

Counting Range: 0-4294967295

Coupling Mode: DC and AC Coupling Modes

Counting Method: Manual

Input Signal Voltage Range: 2Vpp-20Vpp

Pulse Width Measurement: 0.01us Resolution, Maximum Measurable 20s

Period Measurement: 0.01us Resolution, Maximum Measurable 20s

Sweep Function:

Sweep Channel: CH1 or CH2

Frequency Sweep Type: Linear Sweep, Logarithmic Sweep

Sweep Time: 0.1s-999.9s

Setting Range: Arbitrarily set between the starting point (0.01Hz) and the maximum output frequency of the corresponding model at the end point

Sweep Direction: Forward, Reverse And Round Trip

Burst Function:

Number of Pulses: 1-1048575

Burst Mode: Manual Trigger, CH2 Trigger, External Trigger (AC), External Trigger (DC)

General Technical Specifications:

Display Type: 2.4in TFT Color LCD Display

Storage And Loading:

Quantity: 100 Groups

Location: 00 - 99 (The default storage location parameter of 00 is called when the machine is turned on)

Arbitrary Waveform: Quantity: 60 groups from 1 to 60 (the default is 15 groups at startup)

Interface:

Interface Mode: Using USB to serial interface

Expansion Interface: Serial port with TTL level mode, convenient for users to develop

Communication Rate: Using Standard 115200bps

Communication Protocol: Using commands line mode, the protocol is open

Voltage:

Input: AC100-240V (50/60Hz)

Output: DC5V±0.5V

Environmental Conditions: Temperature: 0-40 ℃; Humidity: <80%

1 x Signal Generator

1 x Power Adapter

1 x USB Cable

1 x Signal Connection Cable

1 x English Manual

1 x CD

1 x BNC Cable
