Garde-corps escalier bois hêtre massif avec tubes noirs, rambarde sur mesure

Garde-corps escalier bois hêtre massif avec tubes noirs, rambarde sur mesure

➡️ Product Overview

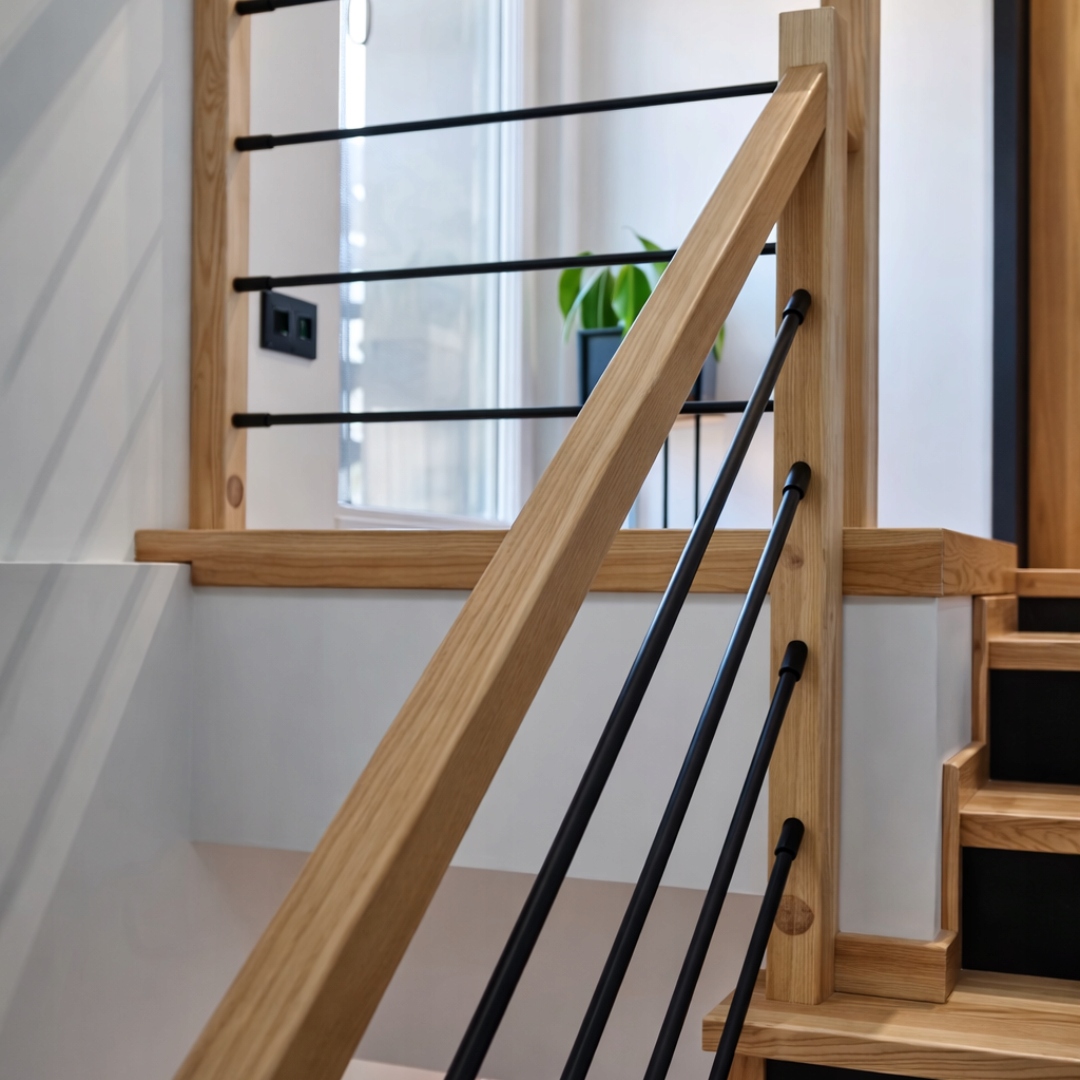

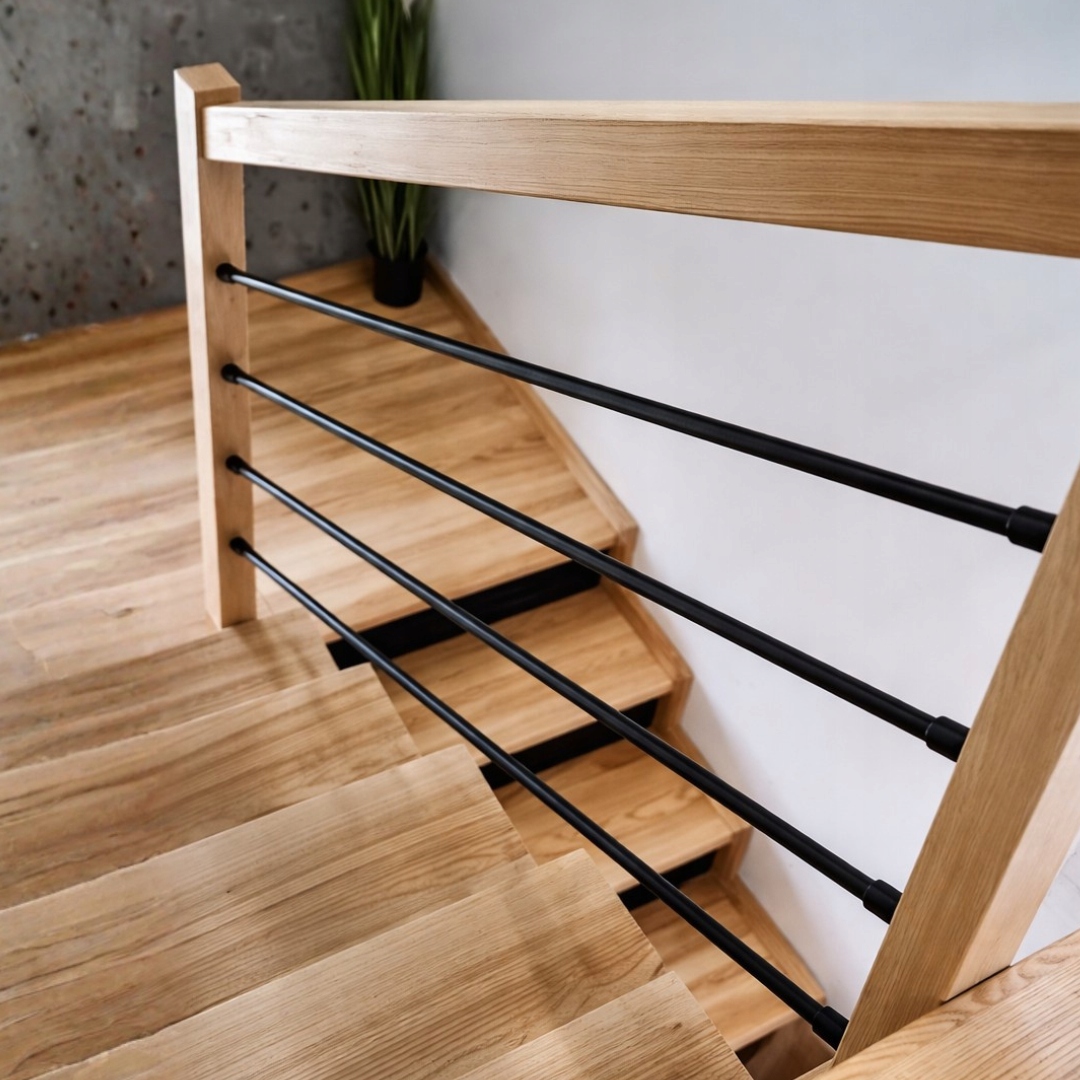

Escalier Balustrade en bois de hêtre avec tubes noirs sur mesure. The offer concerns the balustrade with the filling of 4 black tubes fi 16mm side mounting with steel options.

Modern balustrade en bois de hêtre avec le remplissage de 4 tubes noirs fi 16 en standard. The price concerns 1 meter of railing. The construction is based on axial supports, which replace the drilling of holes for the tubes in the posts and handrails - making the installation quick, clean, and simple.

➡️ Technical Specifications

Material: wood beech

Filling: black steel tubes fi16/1.5mm

Number of tubes: 4 pcs / 1m

Height of the balustrade posts: the total height of the balustrade posts, including the steel sleeve, is 130cm

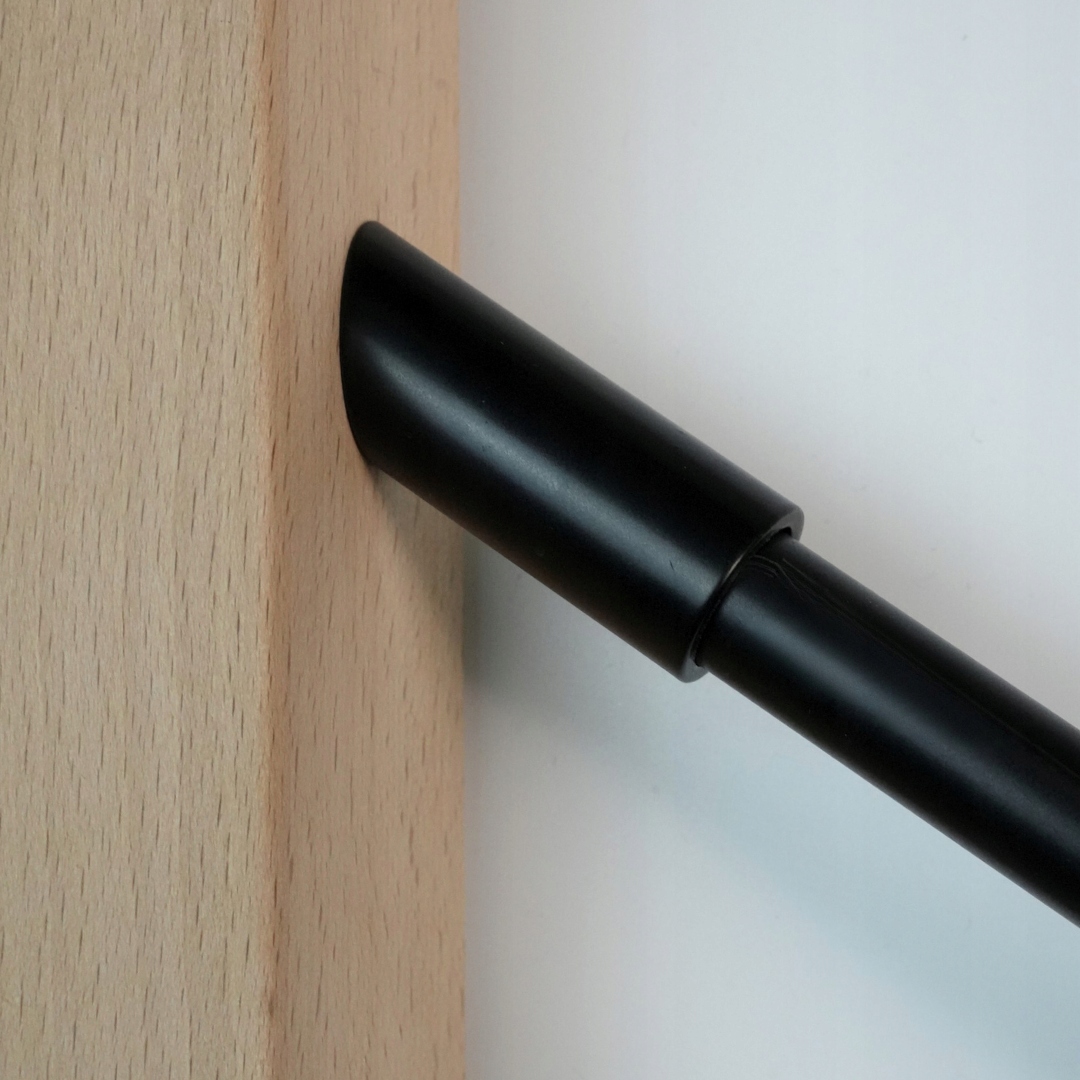

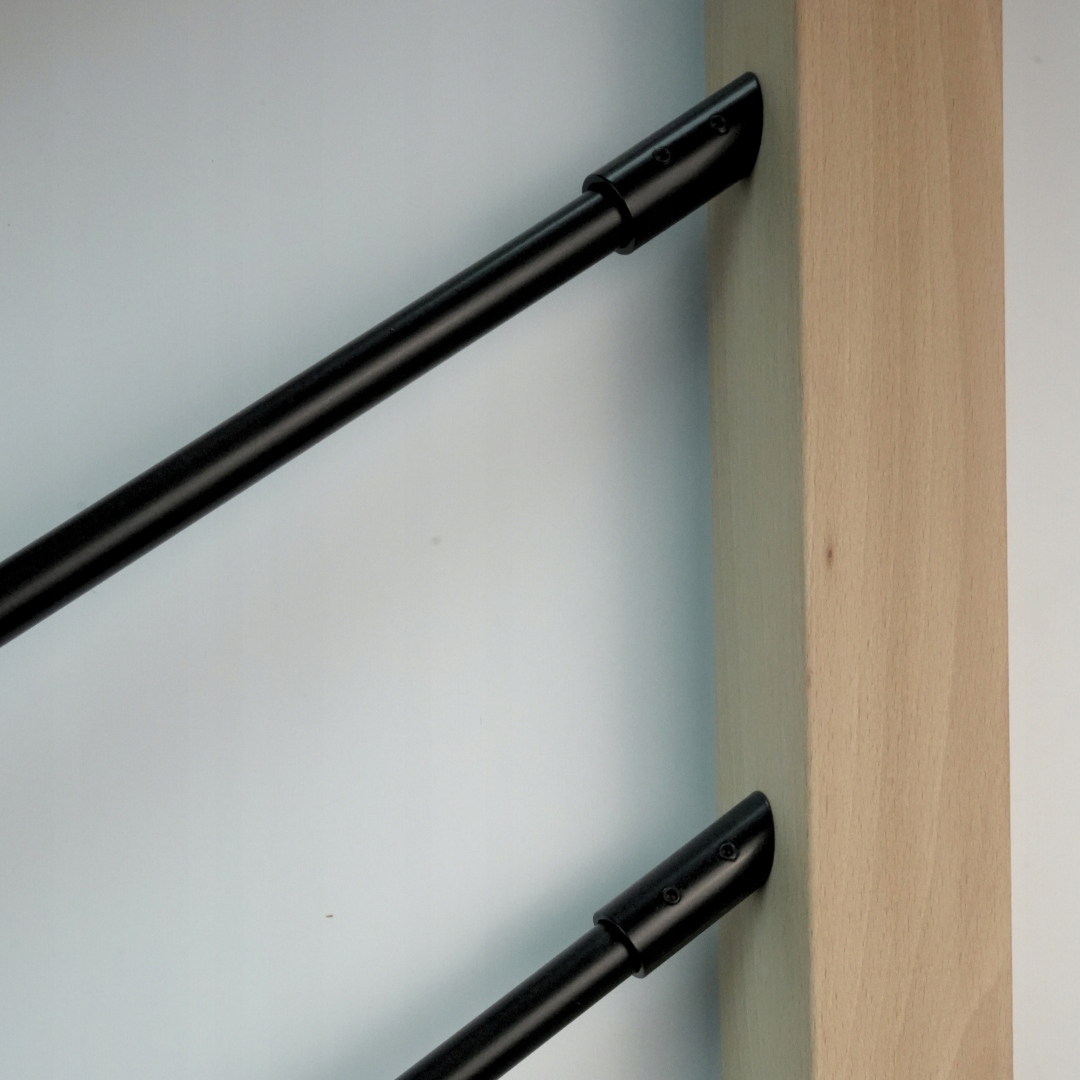

System: axial brackets (no drilling of holes for the tubes in the wood)

Railing fastening method: lateral with steel sleeve (direct ground attachment or without steel sleeve available in another auction)

➡️ Advantages of the Installation Method

This balustrade uses axial fastenings, which completely replace the traditional drilling of holes for the tubes in the posts and railings. This is a significant difference compared to older solutions that required precise marking and drilling of holes in the wood for each tube.

Installation is:

✅ Faster - less work and fewer steps

✅ Cleaner - no longer necessary to drill multiple holes in the wood

✅ Simpler - lower risk of measurement errors and misalignment

✅ More aesthetic - elements are placed uniformly and neatly.

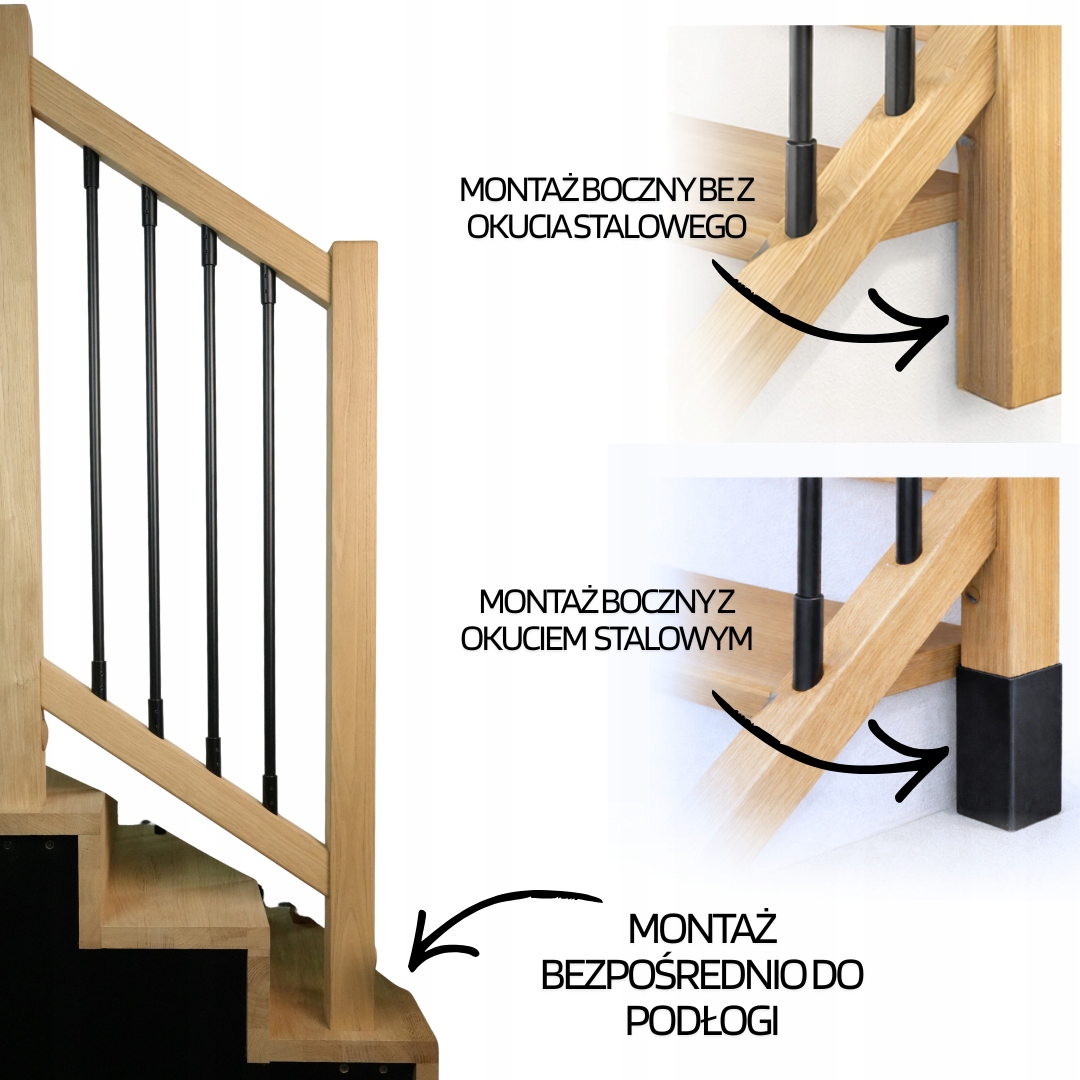

➡️ Railing Installation Options

✅ 1) Direct attachment to the ground (on the ground)

Posts are fixed from the top - to the step / ground / ceiling. This is the most commonly chosen, simple, and universal solution that ensures a stable structure.

✅ 2) Lateral fastening with or without brackets

Posts are fixed on the side of the structure (for example, on the side of a staircase, slab, or landing). This variant is ideal when you want to maximize the surface of the steps and "clean" the upper line of the staircase.

Auction number with direct ground attachment - 18315907059

Auction number with lateral attachment without bracket - 18316267505

Steel tube fi 16mm wall 1.5mm powder coated - length 100cm.

➡️ Steel Tube Details

Steel tube fi 16mm - robust material with a wall thickness of 1.5mm for durability and strength.

➡️ Powder Coating

Powder coating - polyester paint for a durable and aesthetic finish with high resistance to damage.

➡️ Technical Characteristics

Tube diameter: 16mm

Wall thickness: 1.5mm

Tube length: 100cm

Powder coating: polyester paint

Color: black.

➡️ Installation Video Link

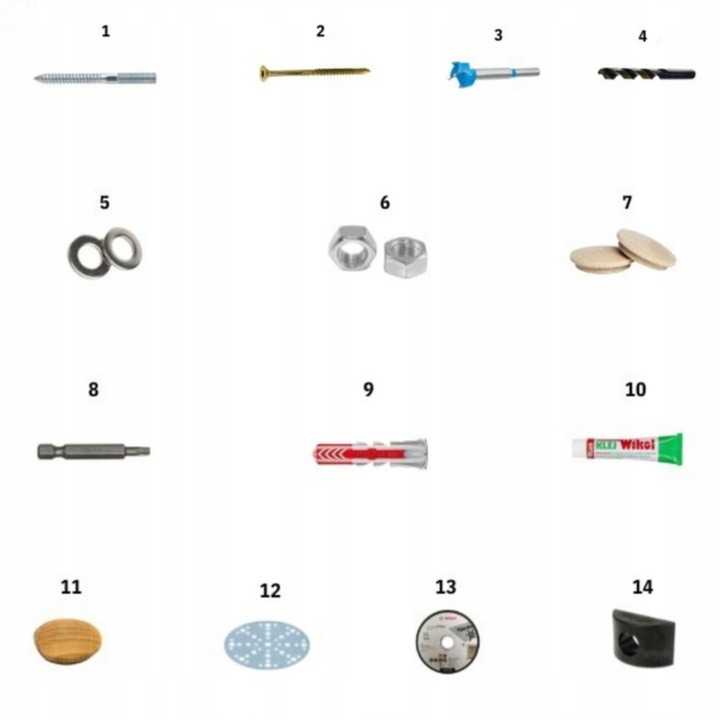

✅ Assembly Kit

• Wood screws M10X160
• Torx wood screws 5x80
• Wood cutter Fi 15mm
• Drill bit 3.5mm
• Washer OCYNK M1 DIN 125
• Hexagonal nut OCYNK M10
• Wood caps fi 40
• Torx T25 to 50mm 1/4"
• Duopower Fischer mounting axis 12x60
• Mounting glue Wikol
• Wood caps fi 15
• P120 abrasive disk
• Saw blade for cutting steel

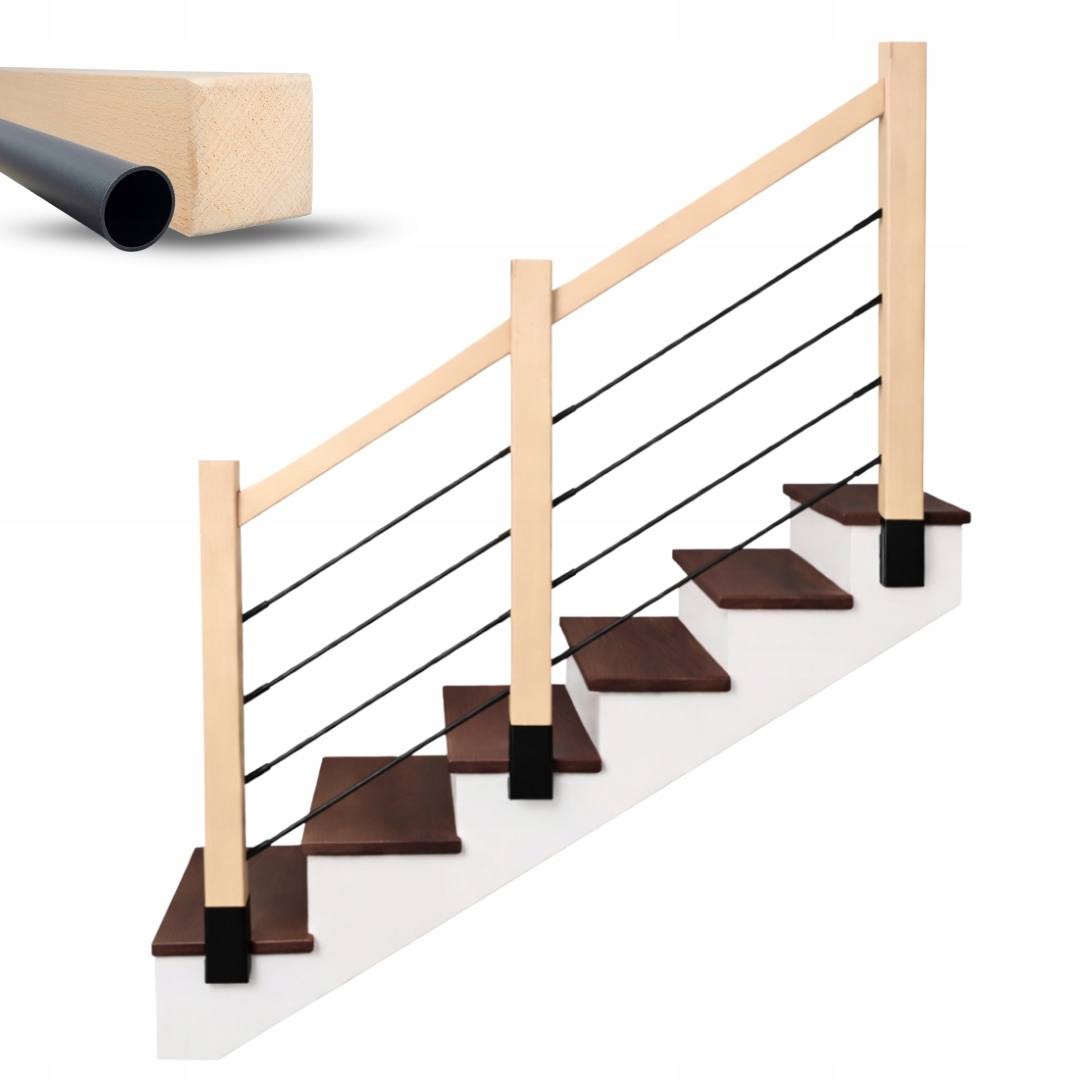

✅ Railing Set

• Wooden posts (1300X60X60mm)
• Steel tubes with a diameter of 16mm/1.5mm
• Wooden handrails (60X40mm)
• End caps
• Mounting elements for railings
• Complete installation system for railings
• Instruction manual
• Assembly video
