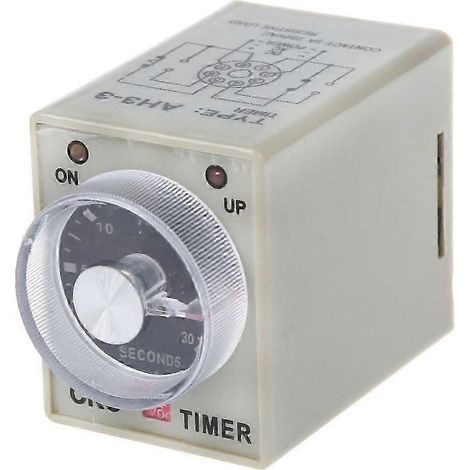

DC 12V 0-30 Seconds 30s Electric Delay Timer Timing Relay DPDT 8P w Base
Dont éco-participation : 0,01 € TTC
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
'/%3E%3C/svg%3E)
Siemens – Programmateur horaire synchrone 3 modules 16A 230V – Interrupteur sans réserve de marche – Compatible tableaux électriques – IP20
62,90 €
133
Vendu par LinzGain Sarl et 1 autre marchand
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Description
Product Name: Time Relay w Base.
Type: AH3-3.
Coil Voltage: 12V DC.
Contact Type: DPDT.
Contact: 5A 250VAC Resistive Load.
Time Range: 0-30 Seconds.
Number of Terminals: 8.
Mount Rail Type: DIN Rail.
Mount Hole Diameter: 4mm / 0.157".
Mount Hole Distance: 33mm / 1.3" (Center to Center).
Size (Approx.): 55 x 40 x 87mm / 2.2" x 1.6" x 3.4" (L*W*H).
Color: As Picture Shown.
Net Weight: 118g.
On delay, plus timing.
With transparent time setting knob for setting time easily, 8 pin solder terminal for installation.
Time Delay Relay used in industrial automation system and mechanical equipment to delay component.
Relay is a kind of automatic electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it will transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degree, it will resume to former state and make the controlled circuit back to the former state.
Features LED indicator show and output status.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.
Product Specifications
● Product Type: Time relay with base.
● Model: AH3-3.
● Coil Voltage: 12V DC.
● Contact Configuration: DPDT (Double Pole Double Throw).
● Contact Rating: 5A at 250VAC (resistive load).
● Time Range: 0-30 seconds (adjustable).
● Terminals: 8-pin solder terminal.
● Mounting: DIN rail mount with 4mm hole diameter, 33mm center-to-center spacing.
● Dimensions: Approx. 55mm x 40mm x 87mm (L x W x H).
● Weight: 118g.
● Features: Transparent time setting knob for easy adjustment; LED indicator for power and output status; on-delay timing function.
● Applications: Industrial automation systems, mechanical equipment, delay control circuits.
Packing List
● 1 x Time Relay.
● 1 x Base.
General Description
This AH3-3 time relay with base is designed for industrial automation and mechanical equipment, providing adjustable on-delay timing from 0 to 30 seconds.
It operates on a 12V DC coil and features DPDT contacts rated at 5A 250VAC for resistive loads.
The relay includes a transparent time-setting knob for easy adjustment, an LED indicator for status monitoring, and 8-pin solder terminals for secure installation.
It mounts on a standard DIN rail, making it suitable for control panels and automation systems.
Product Name: Time Relay w Base.
Type: AH3-3.
Coil Voltage: 12V DC.
Contact Type: DPDT.
Contact: 5A 250VAC Resistive Load.
Time Range: 0-30 Seconds.
Number of Terminals: 8.
Mount Rail Type: DIN Rail.
Mount Hole Diameter: 4mm / 0.157".
Mount Hole Distance: 33mm / 1.3" (Center to Center).
Size (Approx.): 55 x 40 x 87mm / 2.2" x 1.6" x 3.4" (L*W*H).
Color: As Picture Shown.
Net Weight: 118g.
On delay, plus timing.
With transparent time setting knob for setting time easily, 8 pin solder terminal for installation.
Time Delay Relay used in industrial automation system and mechanical equipment to delay component.
Relay is a kind of automatic electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it will transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degree, it will resume to former state and make the controlled circuit back to the former state.
Features LED indicator show and output status.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.
Product Specifications
● Product Type: Time relay with base.
● Model: AH3-3.
● Coil Voltage: 12V DC.
● Contact Configuration: DPDT (Double Pole Double Throw).
● Contact Rating: 5A at 250VAC (resistive load).
● Time Range: 0-30 seconds (adjustable).
● Terminals: 8-pin solder terminal.
● Mounting: DIN rail mount with 4mm hole diameter, 33mm center-to-center spacing.
● Dimensions: Approx. 55mm x 40mm x 87mm (L x W x H).
● Weight: 118g.
● Features: Transparent time setting knob for easy adjustment; LED indicator for power and output status; on-delay timing function.
● Applications: Industrial automation systems, mechanical equipment, delay control circuits.
Packing List
● 1 x Time Relay.
● 1 x Base.
General Description
This AH3-3 time relay with base is designed for industrial automation and mechanical equipment, providing adjustable on-delay timing from 0 to 30 seconds.
It operates on a 12V DC coil and features DPDT contacts rated at 5A 250VAC for resistive loads.
The relay includes a transparent time-setting knob for easy adjustment, an LED indicator for status monitoring, and 8-pin solder terminals for secure installation.
It mounts on a standard DIN rail, making it suitable for control panels and automation systems.
Caractéristiques
- MarqueSNQ
- Réf. ManoManoME237485964
- MMID148590993843
- Réf. fabricantmano-lwl-012952
- EAN6133656706492
