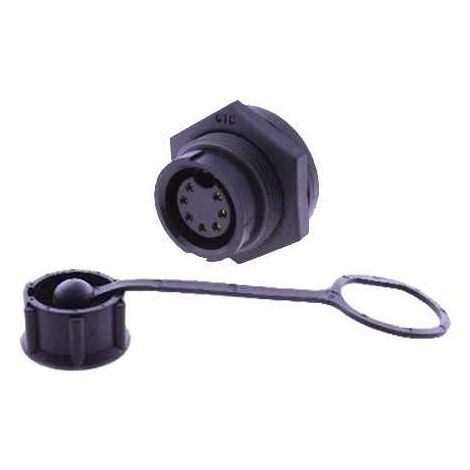

Connecteur Circulaire C3 Femelle 7 Voies pour Panneau
Produit similaire livré par
'/%3E%3C/svg%3E)
Memkey 60 pièces Connecteurs électriques avec levier de commande,30pcs 2 entrées, 20pcs 3 entrées,10pcs 5 entrées
15,99 €17
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 21539
Code Producteur: GT153200-02070
Producteur: GT CONTACT
Vendu au pièce
The Waterproof Circular Connector has designed for a wide range of applications. This series is basically applied to wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, marine, automation machine and IPC/Military NB. The waterproof technology is guaranteed for the product has been tested in a 1M depth water environment for 30 minutes.
Apart from the material to make waterproof circular connector, we also focus on the process of producing. With a strict monitoring system, we are confident in providing our customers the best product. In order to make the customers feel satisfying, we also provided customized as well as the blueprints discussion services. If you are interested in our products and the services, please feel free and contact with us for our waterproof circular connector today!
Current Rating: 5.0A
AWG Gauge: 20 AWG ~ 24 AWG
Temperature Range: -40°C / +105°C
IP Rating: IP 67
Material
Female Housing: PA66
Female Contacts: Copper Alloy, Au Plating
Panel Hex Nut: PA66
Panel Gasket: Silicone
Glue: Epoxy
Technical Data
Insulation Resistance : DC500V±10%, test for 1 minute and the insulation resistance should be more than100Mohm
Dielectric Withstanding Voltage : 1500 V AC contact-to-contact, for 1 minute.
Contact Resistance: 10mohm at 10mA Max.
Durability: 4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock: 5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test: Under 1 M water for 30 minutes.
Scheda Tecnica
Type de produit: Connecteur
Ampérage: 5A
Matériel: PA66 (Polyamide 66, Nylon 66)
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -40°C à +105°C
Voltage: 500V
Matériel de contact: Alliage de cuivre
Câble range: 24 - 20 AWG
Genre: Femelle
Nombre de pôles: 7
Plaquage du contact: Or
Code Producteur: GT153200-02070
Producteur: GT CONTACT
Vendu au pièce
The Waterproof Circular Connector has designed for a wide range of applications. This series is basically applied to wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, marine, automation machine and IPC/Military NB. The waterproof technology is guaranteed for the product has been tested in a 1M depth water environment for 30 minutes.
Apart from the material to make waterproof circular connector, we also focus on the process of producing. With a strict monitoring system, we are confident in providing our customers the best product. In order to make the customers feel satisfying, we also provided customized as well as the blueprints discussion services. If you are interested in our products and the services, please feel free and contact with us for our waterproof circular connector today!
Current Rating: 5.0A
AWG Gauge: 20 AWG ~ 24 AWG
Temperature Range: -40°C / +105°C
IP Rating: IP 67
Material
Female Housing: PA66
Female Contacts: Copper Alloy, Au Plating
Panel Hex Nut: PA66
Panel Gasket: Silicone
Glue: Epoxy
Technical Data
Insulation Resistance : DC500V±10%, test for 1 minute and the insulation resistance should be more than100Mohm
Dielectric Withstanding Voltage : 1500 V AC contact-to-contact, for 1 minute.
Contact Resistance: 10mohm at 10mA Max.
Durability: 4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock: 5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test: Under 1 M water for 30 minutes.
Scheda Tecnica
Type de produit: Connecteur
Ampérage: 5A
Matériel: PA66 (Polyamide 66, Nylon 66)
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -40°C à +105°C
Voltage: 500V
Matériel de contact: Alliage de cuivre
Câble range: 24 - 20 AWG
Genre: Femelle
Nombre de pôles: 7
Plaquage du contact: Or
Caractéristiques
- MarqueERREBI GROUP
- Longueur100 cm
- Tension électrique500 V
- Intensité courant5 A
- MatièresPolyamide (Pa)
