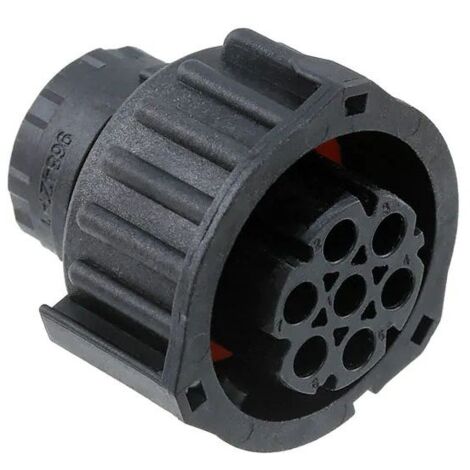

Connecteur circulaire male à 7 voies 1,5MM BU-STE KPL
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 57644
Code Producteur: 967650-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal
Configuration features
Number of positions: 7
Electrical characteristics:
Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48
Characteristics of the body
Body material: PBT GF
Cable exit angle: 180 °, 90 °
Main product color: black
Contact characteristics
Diameter of the coupling pin: 1.5 mm [.059 in]
Housing features
Centerline (pitch): 11.4 mm [.449 in]
Dimensions:
Product height: 32.8 mm [1,291 in]
Product length: 32.8 mm [1,291 in]
Product width: 31 mm [1.22 in]
Terms of use:
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]
UL flammability classification: UL 94HB
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Matériel: NBR (Caoutchouc Nitrile)
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -40°C à +120°C
Dimensions: 32.8x32.8x31.0 (L x W x H)
Inflammabilité: 94-HB
Voltage: 48V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 7
Pas: 11.40 mm
Orientation: 180°
Code Producteur: 967650-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: wire to wire
Main lock function: on the terminal
Configuration features
Number of positions: 7
Electrical characteristics:
Operating voltage (VDC): 48
Nominal voltage architecture (V): 12, 24, 42, 48
Characteristics of the body
Body material: PBT GF
Cable exit angle: 180 °, 90 °
Main product color: black
Contact characteristics
Diameter of the coupling pin: 1.5 mm [.059 in]
Housing features
Centerline (pitch): 11.4 mm [.449 in]
Dimensions:
Product height: 32.8 mm [1,291 in]
Product length: 32.8 mm [1,291 in]
Product width: 31 mm [1.22 in]
Terms of use:
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248
Operating temperature range: -40 - 120 ° C [-40 - 248 ° F]
UL flammability classification: UL 94HB
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Matériel: NBR (Caoutchouc Nitrile)
Couleur: Noir
Protection IP: IP67
Température de fonctionnement: -40°C à +120°C
Dimensions: 32.8x32.8x31.0 (L x W x H)
Inflammabilité: 94-HB
Voltage: 48V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 7
Pas: 11.40 mm
Orientation: 180°
Caractéristiques
- MarqueTE CONNECTIVITY
- Hauteur3.28 cm
- Longueur3.28 cm
- MatièresNitrile
- Poids12 g
- Quantité par pack1
- Tension électrique48 V
- Type de cable audio & vidéoCoaxial
- Type de port connectiqueConnexion
- Réf. ManoManoME43380102
- MMID577852937928
- Réf. fabricant967650-1
