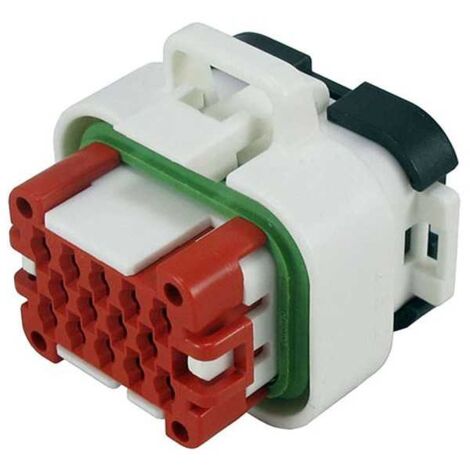

Connecteur AmpSeal mâle 14 Voies blanc
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 57112
Code Producteur: 776273-2
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 14
Number of lines: 3
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180 °
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: AmpSeal
Ampérage: 17A
Matériel: Plastique
Couleur: Blanc
Protection IP: IP67
Température de fonctionnement: -40°C à +125°C
Dimensions: 35.40x33.60x34.60 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 14
Nombre de rangées: 3
Pas: 4.00 mm
Orientation: 180°
Code Producteur: 776273-2
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 14
Number of lines: 3
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180 °
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: AmpSeal
Ampérage: 17A
Matériel: Plastique
Couleur: Blanc
Protection IP: IP67
Température de fonctionnement: -40°C à +125°C
Dimensions: 35.40x33.60x34.60 (L x W x H)
Inflammabilité: 94V-0
Voltage: 250V
Montage: Sur câble
Genre: Mâle
Nombre de pôles: 14
Nombre de rangées: 3
Pas: 4.00 mm
Orientation: 180°
Caractéristiques
- MarqueTE CONNECTIVITY
- Hauteur3.46 cm
- Indice de protectionIP67
- Intensité courant17 A
- Longueur2.74 cm
- MatièresPlastique
- Poids20 g
- Quantité par pack1
- Tension électrique250 V
- Type de cable audio & vidéoCoaxial
- Type de port connectiqueConnexion
- Réf. ManoManoME40888032
- MMID977200557113
- Réf. fabricant776273-2
