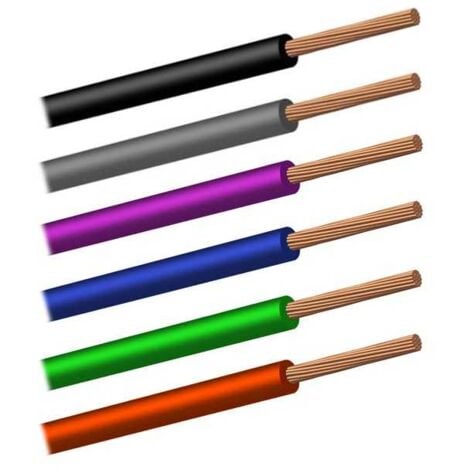

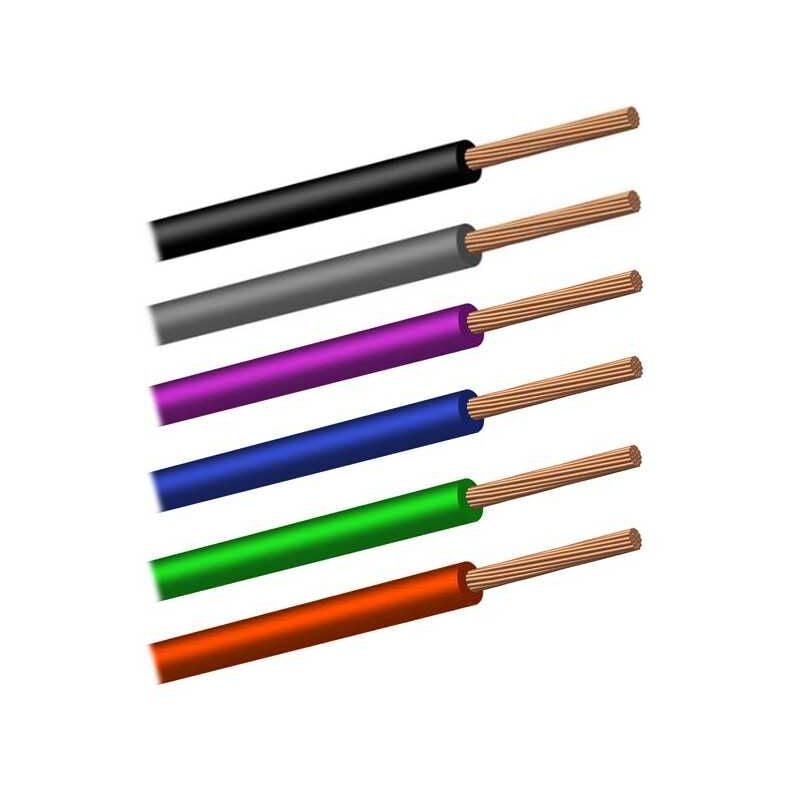

Câble Fil Unipolaire N07V-K sec. 6,00 mmq Brun

Code ErreBi: 18001
Vendu au mètre

Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)

Scheda Tecnica

Type de produit: Câble H07V-K
Couleur: Marron
Diamètre externe: 4.60 mm
Voltage: 750V
Température de fonctionnement min.: -10°C
Température de fonctionnement max.: +70°C
Matériau d'isolation: PVC
Conducteur (matériel): Cuivre Electrolytique
Section de câble mmq: 6.00 mmq
Blindage: Non
Test de tension: 2500V
Type d'emploi: Câblage Interne
Résistance du conducteur: <= 3.3 Ohm/Km
