Capteur de pression en acier inoxydable 200 PSI pour transmetteur

Bienvenue dans notre boutique !

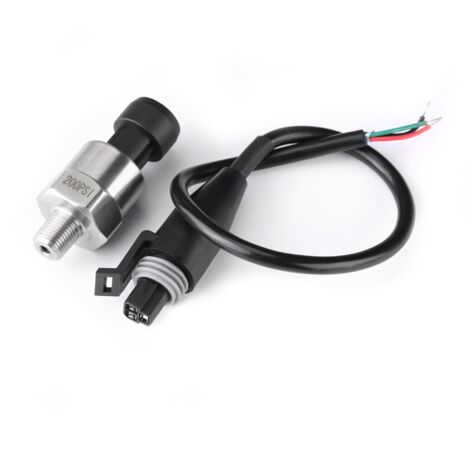

This listing is for a high-precision stainless steel pressure transducer, an advanced electronic sensor offering superior performance compared to traditional mechanical gauges. It features a compact, lightweight design for easy installation and operation, complete surge voltage protection, and is suitable for measuring the pressure of oil, fuel, diesel, gas, water, and air in applications like tanks and pressurized systems.
The sensor is constructed from durable stainless steel, operates on a standard DC 5V supply, and features a 1/8" NPT thread for secure mounting. It provides a reliable 0.5V to 4.5V linear voltage output signal. We offer multiple pressure range models to suit your specific needs, each delivered with its attached cable.
**Available Models & Detailed Specifications:**
**30 psi Range:** *
**Pressure Input:** 0-30 psi *
**Output:** 0.5V (0 psi), 2.5V (15 psi), 4.5V (30 psi) *
**Accuracy:** ≤ ±2% Full Scale (FS) *
**Thread:** 1/8"-27 NPT *
**Wiring:** Red (+5V), Black (Ground), Blue (Signal Output)
**100 psi Range:** *
**Pressure Input:** 0-100 psi *
**Output:** 0.5V (0 psi), 2.5V (50 psi), 4.5V (100 psi) *
**Accuracy:** ≤ ±2% Full Scale (FS) *
**Thread:** 1/8"-27 NPT *
**Wiring:** Red (+5V), Black (Ground), Blue (Signal Output)
**150 psi Range:** *
**Pressure Input:** 0-150 psi *
**Output:** 0.5V (0 psi), 2.5V (75 psi), 4.5V (150 psi) *
**Accuracy:** ±0.5% FS *
**Thread:** 1/8" NPT *
**Wiring:** Red (+5V), Black (Ground), Green (Signal Output) *
**Overload Capacity:** 2-4x Rated Pressure *
**Working Temperature:** -40°C to +120°C *
**Compensation Temperature:** 0°C to +80°C *
**Protection Class:** IP67 *
**Long-term Stability:** < 0.1% FS/year *
**Response Time:** ≤ 1ms *
**Explosion-proof Class:** Exia IIC T6
**200 psi Range:** *
**Pressure Input:** 0-200 psi *
**Output:** 0.5V (0 psi), 2.5V (100 psi), 4.5V (200 psi) *
**Accuracy:** ±1% FS *
**Thread:** 1/8"-27 NPT *
**Wiring:** Red (IN+), Black (GND), Green (OUT) *
**Working Temperature:** -40°C to +125°C *
**Overload Capacity:** 2x Rated Pressure *
**Long-term Stability:** ±0.2% FS/year
**300 psi Range:** *
**Pressure Input:** 0-300 psi *
**Output:** 0.5V (0 psi), 2.5V (150 psi), 4.5V (300 psi) *
**Accuracy:** ±0.5% FS *
**Thread:** 1/8" NPT *
**Wiring:** Red (+5V), Black (Ground), Green (Signal Output) *
**Overload Capacity:** 2-4x Rated Pressure *
**Working Temperature:** -40°C to +120°C *
**Protection Class:** IP67 *
**Long-term Stability:** < 0.1% FS/year *
**Response Time:** ≤ 1ms
**500 psi Range (Gauge Pressure):** *
**Pressure Input:** 0-500 psi *
**Output:** 0.5V (0 psi), 2.5V (250 psi), 4.5V (500 psi) *
**Accuracy:** ±1% FS *
**Thread:** 1/8" NPT *
**Wiring:** Red (+5V), Black (Ground), Yellow/Green (Signal Output) *
**Overload Capacity:** 2-4x Rated Pressure *
**Working Temperature:** -40°C to +120°C *
**Protection Class:** IP67 *
**Long-term Stability:** < 0.1% FS/year *
**Response Time:** ≤ 1ms
**Common Key Specifications (for 150, 300, 500 psi models):** *
**Pressure Medium:** Oil, gas, water compatible with 316L stainless steel. *
**Load Resistance:** ≤ (Supply Voltage - 6.5V) / 0.02A Ω *
**Temperature Effect (Typical):** 0.02% FS/°C (Zero & Sensitivity) *
**Shock Resistance:** 1000g *
**Insulation Resistance:** >100 MΩ at 500VDC *
**Electromagnetic Compatibility:** Meets EN50051-1 standards.
**Package Includes:** *
1 x Pressure Transducer Sensor (with attached cable).
