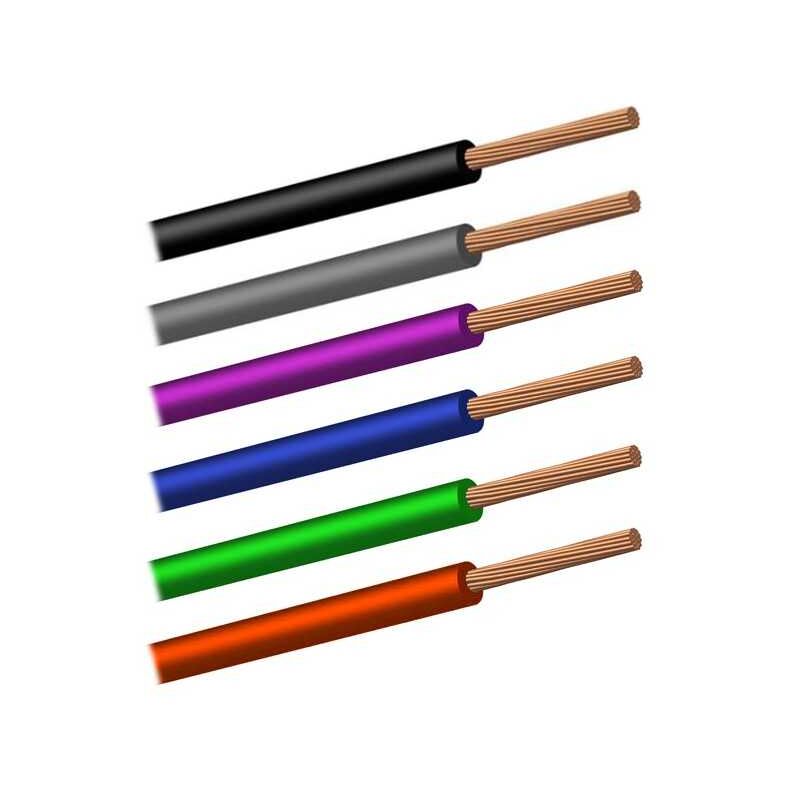

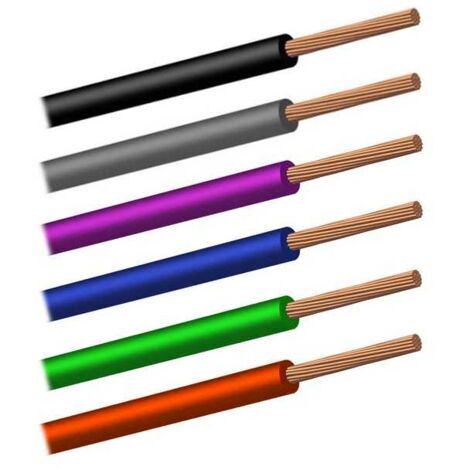

Câble Fil Unipolaire H07Z-K sec. 4 mmq Brun

Code ErreBi: 18365
Vendu au mètre

Flexible (H07Z-K) single-core cable for fixed laying with low emission of smoke and toxic corrosive gases.

Conductor
Plain copper flexible wire, class 5 (H07Z-K)

Insulation
LS0H rubber compound, EI5 quality
LS0H = Low Smoke Zero Halogen

Cores colour
All single colours and yellow/green combination allowed

TECHNICAL CHARACTERISTICS
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 90°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 250°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter (H07Z-K)

Use and installation
For environments containing large number of people when is needed protection against emission of smoke and toxic corrosive gases in case of fire, like schools, offices, theaters, subways, hospitals, worship places, shopping centers and places of public entertainment. Allowed for voltages up to 1000 V a.c. and 750 V d.c., for fixed and protected laying inside lighting devices and switch/control systems. Suitable for running inside visible or recessed ducts, only for signal or control circuits. Avoid skin contact if operating at high temperatures. (ref. CEI 20-40, HD 516)

EN 50525-3-41 - CEI 20-107/3-41 Construction and specifications
CEI EN 60332-1-2 Flame propagation
CEI EN 50267-2-1 - CEI EN 50267-2-2 Gas emission
CEI EN 60684-2
CEI EN 61034-2 Smoke emission
2014/35/UE Low Voltage Directive
2011/65/CE RoHS Directive

Scheda Tecnica

Type de produit: Câble H07Z-K
Couleur: Marron
Voltage: 750V
Température de fonctionnement min.: -30°C
Température de fonctionnement max.: +90°C
Matériau d'isolation: LS0H (Low Smoke Zero Halogen)
Conducteur (matériel): Cuivre rouge
Section de câble mmq: 4.00 mmq
Test de tension: 1000V
Type d'emploi: Câblage Interne
Résistance du conducteur: <= 4.95 Ohm/Km
