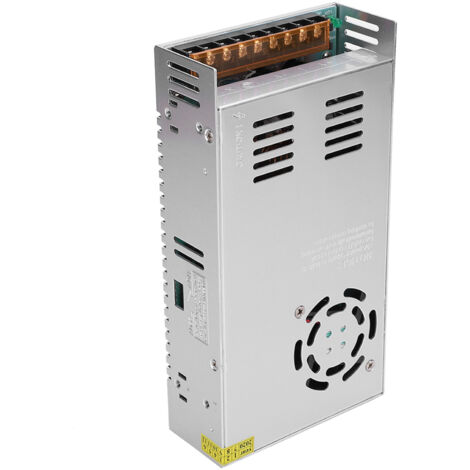

Adaptateur d'alimentation 500W 24V 20.8A pour imprimante 3D et bandeaux LED

Bienvenue dans notre boutique !

This high-performance switching power supply delivers a stable DC 24V output and is engineered for reliability and safety. It features high efficiency, low DC ripple, and excellent insulation with high dielectric strength. Constructed from durable aluminum alloy, it is built to last with a long service life and can operate effectively in low-temperature environments. For your peace of mind, every unit undergoes a rigorous 100% full-load burn-in test and includes comprehensive protection against short circuits, overloads, and overvoltage.

The connection terminals are clearly marked: L and N for AC input, GND for DC output negative (-), and V for DC output positive (+). The output voltage is adjustable via the +V/ADJ terminal. This power supply meets major international safety certifications including CCC, FCC, and CE.

It operates within a temperature range of 0~40°C (32~104°F), can be stored from -20~60°C (-4~140°F), and handles environmental humidity from 0~95% non-condensing. Its versatile design makes it ideal for a wide array of applications such as industrial automation, LED displays and light bars, CCTV systems, audio equipment, computer engineering, and 3D printers.

Available in multiple models to suit your power requirements, each unit comes ready for use. Please refer to the detailed specifications below to select the perfect model for your project.

**Product Specifications:**

*

**Model:** S-48-24 *

**Input Voltage:** AC 100-240V *

**Output:** DC 24V, 2A *

**Power:** 48W *

**Dimensions:** 85 x 58 x 33 mm / 3.3 x 2.3 x 1.3 in *

**Cooling:** Natural

*

**Model:** S-60-24 *

**Input Voltage:** AC 100-240V *

**Output:** DC 24V, 2.5A *

**Power:** 60W *

**Dimensions:** 110 x 78 x 36 mm / 4.3 x 3.1 x 1.4 in *

**Cooling:** Natural

*

**Model:** S-72-24 *

**Input Voltage:** AC 100-240V *

**Output:** DC 24V, 3A *

**Power:** 72W *

**Dimensions:** 110 x 78 x 36 mm / 4.3 x 3.1 x 1.4 in *

**Cooling:** Natural

*

**Model:** S-100-24 *

**Input Voltage:** AC 100-240V *

**Output:** DC 24V, 4.2A *

**Power:** 100W *

**Dimensions:** 129 x 99 x 40 mm / 5.1 x 3.9 x 1.6 in *

**Cooling:** Natural

*

**Model:** S-120-24 *

**Input Voltage:** AC 100-240V *

**Output:** DC 24V, 5A *

**Power:** 120W *

**Dimensions:** 129 x 99 x 40 mm / 5.1 x 3.9 x 1.6 in *

**Cooling:** Natural

*

**Model:** S-150-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 6.25A *

**Power:** 150W *

**Dimensions:** 199 x 98 x 42 mm / 7.8 x 3.9 x 1.7 in *

**Cooling:** Natural

*

**Model:** S-240-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 10A *

**Power:** 240W *

**Dimensions:** 200 x 110 x 50 mm / 7.9 x 4.3 x 2.0 in *

**Cooling:** Natural

*

**Model:** S-360-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 15A *

**Power:** 360W *

**Dimensions:** 215 x 113 x 50 mm / 8.5 x 4.4 x 2.0 in *

**Cooling:** Fan

*

**Model:** S-480-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 20A *

**Power:** 480W *

**Dimensions:** 215 x 113 x 50 mm / 8.5 x 4.4 x 2.0 in *

**Cooling:** Fan

*

**Model:** S-500-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 20.8A *

**Power:** 500W *

**Dimensions:** 215 x 113 x 50 mm / 8.5 x 4.4 x 2.0 in *

**Cooling:** Fan

*

**Model:** S-600-24 *

**Input Voltage:** AC 110/220V ±15% *

**Output:** DC 24V, 25A *

**Power:** 600W *

**Dimensions:** 220 x 115 x 50 mm / 8.7 x 4.5 x 2.0 in *

**Cooling:** Fan

*

**Model:** S-720-24 *

**Input Voltage:** AC 170-250V *

**Output:** DC 24V, 30A *

**Power:** 720W *

**Dimensions:** 242 x 124 x 65 mm / 9.5 x 4.9 x 2.6 in *

**Cooling:** Fan

*

**Model:** S-800-24 *

**Input Voltage:** AC 170-250V *

**Output:** DC 24V, 33.3A *

**Power:** 800W *

**Dimensions:** 242 x 124 x 65 mm / 9.5 x 4.9 x 2.6 in *

**Cooling:** Fan

*

**Model:** S-1000-24 *

**Input Voltage:** AC 170-250V *

**Output:** DC 24V *

**Power:** 1000W *

**Cooling:** Fan

You will receive one (1) switching power supply unit of the model you select.
