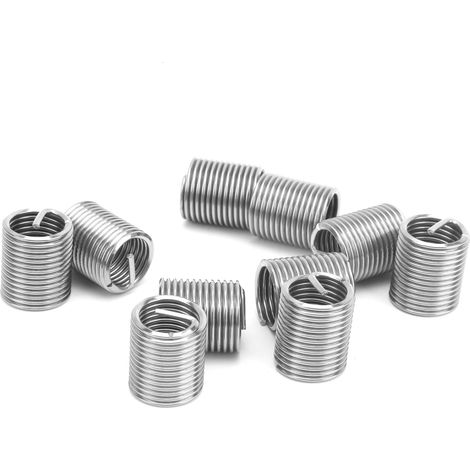

10pcs M162 Wire Thread Insert Thread Protection Sleeve Thread Repair 2D

1、Forming a high‑strength, wear‑resistant, high‑accuracy standard female thread when you fit the wire screw set in the screw hole of the workpiece of aluminum alloy and other materials 2、Repairing the threaded hole in a cost‑effective manner. When a thread error occurs or a damaged female threaded hole is repaired, threaded insert can be used as a repair method 3、These inserts can be used to convert between metric and inch thread holes, very convenient and fast 4、Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, which is a new type of female threaded fasteners. Made of high‑strength, high‑accuracy diamond‑shaped cross‑section steel wire 5、Applied to low‑strength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc. can improve thread strength and wear resistance significantlyItem Type: Thread Inserts Material: SUS304 Model: M16x2 Thread Specification: M16x2 (mm) Outside Diameter Before Installation: Approx. 18.8 ~ 19.4mm / 0.7 ~ 0.8in Diameter of Drilling Drill Bit for Installation: Approx. 16.5mm / 0.6in 1D/2D/3D: Length After Installation: Approx. 16mm / 0.6in 32mm / 1.3in 48mm / 1.9in Number of Turns Before Installation: 6.3/13.7/21.2Thread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.How to Use: 1. Drilling Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert. 2. Tapping Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts. 3. Installation Put the wire screw sleeve into the installation wrench (figure 5 on the right), insert the wire screw sleeve installation tail handle into the guide rod groove of the installation wrench, and turn the handle of the installation wrench to screw the wire screw sleeve into the screw hole. For installation of M14x2 or more phase thread thread inserts, you can use the "T" type slotting simple tool to install; Note: During the installation and screwing process of the thread inserts, there should be no pressing in the vertical direction to prevent jumping teeth. The correct method is slowly screw in the direction of thread rotation. 4. Remove the handle (break off the mounting handle) Use a breaker to break the mounting handle. Use about 200g of coconut to hit the breaker instantly, and the handle can be removed. Do not use the mounting wrench to rotate in the opposite direction. Do not break the mounting handle. This situation is very easy. As a result, the tail shank was broken and the wire was pulled out. 5. Unscrew When installation problems occur during the installation of the wire thread insert (such as jumping teeth), the thread insert needs to be removed, and a special sleeve remover should be used to remove the wire thread insert. 10 x Thread Inserts
