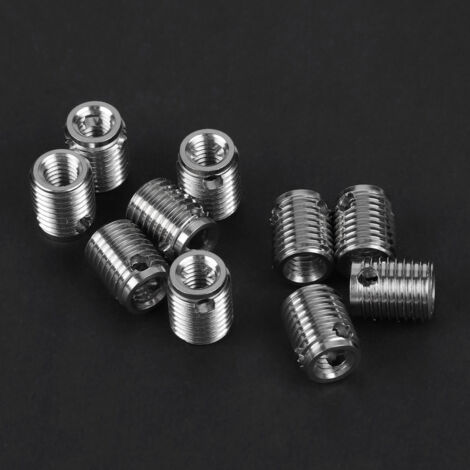

10 pièces inserts filetés auto-taraudeurs en acier inoxydable SUS303 avec 3 trous pour fixation

16,99€

Ces articles peuvent vous intéresser !

Comparer à des articles similaires

Informations produit

Description

1、These self tapping thread inserts can be installed directly and do not need you to tap a thread first.

2、They are used in low strength materials, can avoid thread damage and get a good connection performance, to enhance connection strength and improve connection.

3、Used for parts that requires frequent removing, it can greatly improve service life and wear-resistance of screw thread.

4、It can prevent screw from getting loose,especially used for products requiring high coefficient of insurance.

5、Easy to maintenance, install a thread insert into a damage screw hole, then the screw hole can be used as normal, in order to avoid workpiece loss.

Steel thread inserts can effectively

improve screw connection, greatly improving the reliability. Used in

all kinds of low strength materials, thread inserts can largely improve

the wear resistance performance of screw connection, and avoid thread

damage.

Features:

These self tapping thread inserts can be installed directly and do not need you to tap a thread first.

They are used in low strength materials, can avoid thread damage and get a good connection

performance, to enhance connection strength and improve connection.

Used for parts that requires frequent removing, it can greatly improve service life and wear-resistance of screw thread.

It can prevent screw from getting loose, especially used for products requiring high coefficient of insurance.

Easy

to maintenance, install a thread insert into a damage screw hole, then

the screw hole can be used as normal, in order to avoid workpiece loss.

Specification:

Product Model: 308 type

Material: Stainless steel SUS303

N.O.(Optional)

Inner Size

Outer Size

Length(mm)

Drilling Diameter(mm)

Min. Drilling Depth(mm)

Quantity

Weight

Aluminum Alloy

Cast Iron

#1

M3*0.5

M5*0.6

6

4.6-4.7

4.7-4.8

8

10pcs

5g / 0.2oz

#2

M4*0.7

M6.5*0.8

8

6.0-6.1

6.1-6.2

10

10pcs

11g / 0.4oz

#3

M5*0.8

M8*1.0

10

7.4-7.5

7.6-7.7

13

10pcs

19g / 0.7oz

#4

M6*1.0

M10*1.25

12

9.3-9.4

9.5-9.6

15

10pcs

37g / 1.3oz

#5

M8*1.25

M12*1.5

14

11.1-11.3

11.3-11.5

18

10pcs

54g / 1.9oz

#6

M10*1.5

Package list:

10 * Threaded Inserts

Caractéristiques

  • Marque
    RDTD
  • Réf. ManoMano
    ME211192924
  • MMID
    448414850461
  • Réf. fabricant
    LHL0409-YM13824
  • EAN
    1252968639559
