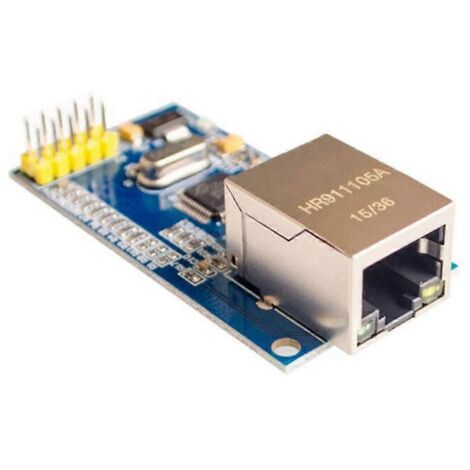

W5500 Ethernet Network Module Hardware Tcp/Ip 51/Stm32--
Dont éco-participation : 0,10 € TTC
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Dewalt – Affleureuse défonceuse Brushless 18V – Moteur électronique à vitesse variable – Pince 8mm – Vitesse 16 000 à 25 500 trs/min – Coffret Tstak
400,17 €
121
Vendu par Oflab GmbH et 1 autre marchand
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
and high quality!
Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, , IGMP, PPPoE
Supports 8 sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)
Material: PC + metal
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)
48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)
Chip type: W5500
Supports both 3.3V & 5V.
10BaseT/100BaseTX Ethernet PHY embedded
Supports automatic response (full duplex / half duplex mode)
Supports 8 sockets simultaneously
Internal 32Kbytes Memory for Tx/Rx Buffers
Power off mode: support
Network wake: support
SPI interface (SPI MODE 0, 3),convenient connection with MCU
Size: 55mm x 28mm
Color: Blue
Package Contents: 1 x SPI to Ethernet/TCP/IP W5500 Module
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Caractéristiques
- MarqueZEVE
- Hauteur1 cm
- Longueur1 cm
- Quantité par pack1
- Type de cable audio & vidéoRJ45
- Réf. ManoManoME213293339
- MMID153191061965
- Réf. fabricantZY0422[CJ]-13107
- EAN4714522757149
