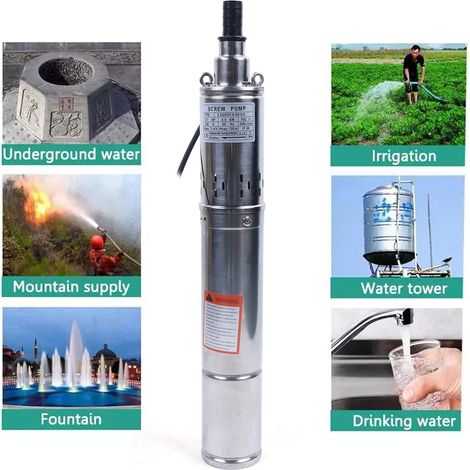

Pompe de Puits Profond 500W 100M Pompe Immergée en acier inoxydable - Débit de 2 m³/H

Description

Developed with superior craftsmanship and advanced technology, our deep well water pump is made of high-quality material that can withstand high pressure and long-term stable operation in harsh environments. It can provide a continuous and stable output of high head water. Equipped with a high-efficiency motor, it realizes low energy consumption and high-efficiency power conversion. It is designed to meet the diversified needs of various types of deep well water extraction, agricultural irrigation, industrial water supply, and fire-fighting water supply.

Key Features

Sturdy and Durable: The product is made of high-quality 304 stainless steel, using polishing technology, with high strength, wear resistance, excellent waterproof properties, and long service life.

High Efficiency: The 500 W all-copper motor pumps water quickly at 2,850 r/minutes, making it possible to pump up to 328.08 ft of groundwater in a short time, boosting your productivity.

Safe and Reliable: With an IP68 waterproof rating and an automatic pump stop for overheating protection, it prevents damage to the machine when it overheats, helping to extend its service life.

Good Sealing Performance: The standard thread and integrated structure provide it with excellent sealing performance, thus it can work efficiently and quietly.

Excellent Performance: It has a heavy-duty thermoplastic impeller that provides a high flow rate (439.94 gal/h) and high head (328.08 ft). The fixed rotor is made of steel strips with high silicon content and high dimensional accuracy. The built-in check valve, stainless steel screen, and sealed bearing effectively block and filter out contaminants for peace of mind.

Thoughtful Design: This product has a bottom suction design that allows it to maximize fluid absorption and eliminates the need for an induction sleeve.

Low Noise Operation: The high-quality motor enables this product to operate at a low noise level of 20 dB (the sound equivalent of a whisper), providing you with a quiet working environment.

Easy to Use: With a simple structure, you can easily use this machine. You only need to put the deep pump into the well water and then plug it in to pump out the water.

Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.

Details

Fixed Pull Rings: The two pairs of fixed pull rings near the water outlet allow you to fasten a rope to them for easy pulling out after using it.

Pagoda-shape Water Outlet: It is convenient for connecting pipes, saving time and labor.

Snap Ring Spring: The base adopts a high-precision steel snap ring spring, which is effective against compression, impact, and deformation.

High Toughness Oil Seal: It can protect the stable operation of the motor in a high water pressure environment.

Application

This product is suitable for extracting groundwater from deep wells, and can also be used in water-lifting projects of rivers, reservoirs, canals, and so on. It can be used for farmland irrigation, water for humans in mountainous areas, villages, homes, farms, campervans, cities, factories, and railways.

How to Install

1. Wrap the adapter with PTFE tape (not included).

2. Attach connector to outlet.

3. Secure the pump lifting rope (not included). Please note that the use of cables as lifting ropes is strictly prohibited!

4. Secure with clips (not included).

5. Installation is complete.

Specifications

Model: 3.5QGD1.8-50-0.5

Style: Modern

Color: Silver

Shape: Columnar

Material: 304 Stainless Steel

Process: Polishing

Power Source: Corded Electric

Plug Type: EU Standard

Assembly Required: Yes

Protection Level: IP 68

Voltage: 220-240V, 50HZ

Power: 0.7HP/0.5KW

Max. Head: 100m/328.08 ft

Max. Flow Rate: 2 m³/439.94 gal/h

Speed: 2850r/min

Cable Length: 15m/49.21 ft

Number of Impellers: 1

Noise: 20dB

Product Size(D*H): 8.7*58cm/3.5*22.8 in

Package Included

1* Deep Well Water Pump

Notes

1. Please note that the pump needs to be installed vertically. Use without water is prohibited.

2. Please note that the pumping speed is related to the depth at which the water pump enters the water, and the deeper the depth, the lower the speed.

3. Please note that this product is only suitable for pumping clear water, not oil, chemical raw materials, and other liquids.

4. Please note that for newly drilled wells with excessive particulate deposits, we recommend that you add a layer of gauze (not included) in front of the filter screen inlet.

5. Please note that the pump has a built-in check valve, however, this check valve is only used to prevent water from flowing back into the pump and rotating the impeller in the opposite direction, but if the pump is to be used in a pressure system, at least one external check valve is required in the piping.

6. Please note that touching is prohibited when the pump is in operation. Please do not swim or wash clothes in the water where the water pump is running to avoid electric shock. To prevent electric shock, lifting and pulling the cable is strictly prohibited. Disconnect the power supply when maintaining, moving, or cleaning the electric pump.

7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
