Pompe à diesel 12 V avec compteur automatique - Pompe à fioul auto-amorçante - 200 W 45 l/min - Pompe à huile électrique - Pistolet automatique - Pompe de transfert de carburant

Description

Do you still worry about how to transfer diesel safely? Our diesel transfer pump is a comprehensive device designed specifically for extracting and transporting diesel. It combines efficient transfer technology with user-friendly design, aiming to meet the needs of diesel management in various industrial, commercial, and personal applications. It has become an indispensable auxiliary tool for various diesel power equipment due to its high efficiency, safety, and ease of use. Choosing the appropriate diesel transfer pump can significantly improve operational efficiency and ensure a stable and safe supply.



Key Features

Durable & Sturdy: The cast iron oil suction pump, aluminum alloy oil gun's mouth, steel plate mounting bracket with spray paint, pure copper motor, and pure copper positive (red) and negative (black) pole clamps offer corrosion resistance, heat resistance, and wear resistance.



High Working Efficiency: It boasts a power of 200W, a max flow rate of 45L/Min, a max. lift of 32.8ft, a max. suction of 16.4ft, and a rotation speed of 3600r/min, providing you with strong working power and ensuring that your diesel transfer process can be completed quickly and easily.



High Accuracy: The 4-digit subtotal and 8-digit total flowmeter with a mechanical gear structure can display the detailed usage volume (accuracy error: ±1%). It also supports manual zeroing by rotating the flower-shaped knob on one side.



User-friendly Design: The 6.51-ft PVC oil inlet pipe with internal steel wire and the 13.51-ft rubber oil outlet pipe can easily realize long-distance diesel delivery without frequent movement. The oil gun comes with a fixed locking device, which can keep running without pressing the trigger with a hand all the time until refueling is complete, reducing hand fatigue.

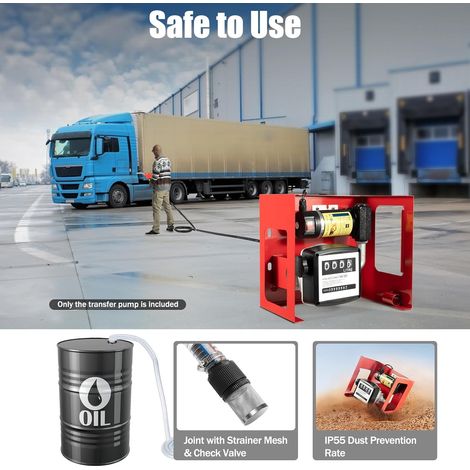

Safe to Use: The oil inlet pipe joint with strainer mesh and check valve effectively purifies diesel to prevent blockage and the risk of backflow. Also, the dustproof of IP55 can ensure machine safety during use and reduce the risk of accidents.



Compact & Portable: The bracket measures 13.38*12*9.44 inches with two large hollowed spaces on both sides, allowing you to take it to the place you need.



Complete Kit: The oil gun, oil inlet pipe, oil outlet pipe, and mounting bracket make it easy to pump the required diesel.



Customer Service: Communication is the best way to solve problems. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

Hanging Loop: It allows you to place the oil gun easily, saving space.



Red Switch: It can help you to turn on or off the oil suction pump easily when you use it or not.



Anti-slip Spring: It is on the oil gun mouth and can prevent the oil gun from slipping during use.



Application

It can be applied to pumping diesel or kerosene for automobiles, cargo ships, tractors, excavators, bulldozers, rollers, cement mixers, trucks, etc.



Specifications

Material: Cast Iron, Steel, Aluminum Alloy, PVC, Rubber, Pure Copper

Treatment: Spray Paint

Color: Red

Assembly Required: Yes

Instrument Unit: Liter

Readout: 4-digit Subtotal and 8-digit Total

Dustproof Rate: IP55

Power: 200W

Voltage: 12V

Accuracy Error: ± 1%

Rotation Speed: 3600r/min

Max. Flow Rate: 45L/Min/12GPM

Max. Lift: 10m/32.8ft

Max. Suction: 5m/16.4ft

Max. Operating Pressure: 50psi/3.5bar

Oil Inlet Interface: 3/4''

Oil Outlet Interface: 1''

Oil Inlet Pipe Length: 198.5cm/6.51ft

Oil Outlet Pipe Length: 412cm/13.51ft

Flowmeter Size: 15*14*6cm/5.9*5.51*2.36inch

Bracket Size: 34*30.5*24cm/13.38*12*9.44inch

Gross Weight: 12.85kg/28.32lbs

Net Weight: 11.85kg/26.12lbs

Package Size: 37*33*39cm/14.56*12.99*15.35inch



Package Included

1*Diesel Transfer Pump

1*Oil Inlet Pipe

1*Oil Outlet Pipe

1*Oil Gun

1*English Manual

All Accessories for Assembly



Notes

1. Please read the user manual carefully before use and pay special attention to the safety precautions included.

2. It can't be used for pumping gasoline, alcohol, high viscosity oils, etc.

3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
