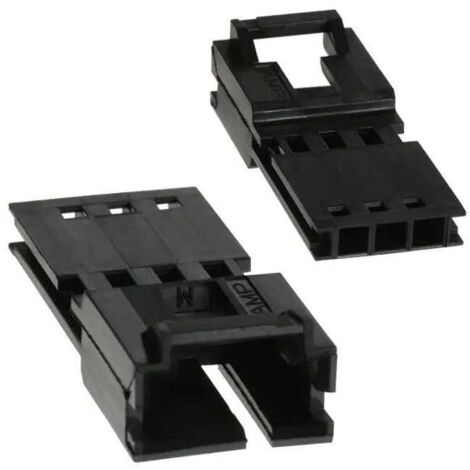

Modu MTE Connecteurs femelle 2 voies TE
Produit similaire livré par
Lot de 10 Connecteurs Électriques Étanches IP68 – Femelle 3 Broches – Pour Câble Extérieur, Prise de Courant et Raccord de Fil
13,10 €
3
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Informations produit
Description
Code ErreBi: 42587
Code Producteur: 103653-2
Producteur: TE Connectivity
Vendu au pièce
Characteristics of the product type
- Connector Product Type: Housing
- Connector and housing type: Plug
- Connector system: wire-to-board
- Sealable: No
- The connector and the contact end with: wire and cable
Configuration features:
- Number of positions: 3
- Number of lines: 1
Electrical characteristics:
- Operating voltage (VAC): 250
- Dielectric withstand voltage (max) (VACrms): 600
Contact characteristics:
- Contact base material: phosphor bronze
- Contact type: Pin
- Rated contact current (max) A (A): 3
- Contact layout: online
Termination functions:
- Wire and cable termination method: crimp, insulation displacement crimp (IDC)
Mechanical attack:
- Coupling retention type: snap hook
- Retention of coupling: with
- Connector Mounting Type: Cable Mount (Free Hanging)
Housing features:
- Housing material: Thermoplastic
- Centerline (pitch): 2.54 mm [.1 in]
- Housing color: black
Dimensions:
- Connector height: 6.6 mm [.26 in]
- Row-to-row spacing: 2.54 mm [.1 in]
- Connector depth: 10.03 mm [.39 in]
Terms of use:
- Operating temperature range: -65 - 105 ° C
UL flammability classification: UL 94V-0
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: Modu MTE
Ampérage: 13A
Matériel: Polyester
Couleur: Noir
Température de fonctionnement: -40°C à +105°C
Dimensions: 24,13x8,13x6,60 (L x W x H)
Inflammabilité: 94V-0
Montage: Sur câble
Genre: Femelle
Nombre de pôles: 3
Nombre de rangées: 1
Pas: 2.54 mm
Orientation: 180°
Code Producteur: 103653-2
Producteur: TE Connectivity
Vendu au pièce
Characteristics of the product type
- Connector Product Type: Housing
- Connector and housing type: Plug
- Connector system: wire-to-board
- Sealable: No
- The connector and the contact end with: wire and cable
Configuration features:
- Number of positions: 3
- Number of lines: 1
Electrical characteristics:
- Operating voltage (VAC): 250
- Dielectric withstand voltage (max) (VACrms): 600
Contact characteristics:
- Contact base material: phosphor bronze
- Contact type: Pin
- Rated contact current (max) A (A): 3
- Contact layout: online
Termination functions:
- Wire and cable termination method: crimp, insulation displacement crimp (IDC)
Mechanical attack:
- Coupling retention type: snap hook
- Retention of coupling: with
- Connector Mounting Type: Cable Mount (Free Hanging)
Housing features:
- Housing material: Thermoplastic
- Centerline (pitch): 2.54 mm [.1 in]
- Housing color: black
Dimensions:
- Connector height: 6.6 mm [.26 in]
- Row-to-row spacing: 2.54 mm [.1 in]
- Connector depth: 10.03 mm [.39 in]
Terms of use:
- Operating temperature range: -65 - 105 ° C
UL flammability classification: UL 94V-0
Scheda Tecnica
Type de produit: Corps du connecteur
Serie: Modu MTE
Ampérage: 13A
Matériel: Polyester
Couleur: Noir
Température de fonctionnement: -40°C à +105°C
Dimensions: 24,13x8,13x6,60 (L x W x H)
Inflammabilité: 94V-0
Montage: Sur câble
Genre: Femelle
Nombre de pôles: 3
Nombre de rangées: 1
Pas: 2.54 mm
Orientation: 180°
Caractéristiques
- MarqueERREBI GROUP
- Quantité par pack1
- CouleurNoir
- Intensité courant13 A
- Largeur8.13 mm
- Longueur24.13 mm
- MatièresPolyester
- Poids1 g
- Tension électrique250 V
- Type de raccordementFileté
- Type de terminaisonManchon isolé
- Réf. ManoManoME36139203
- MMID509375934436
- Réf. fabricant103653-2
