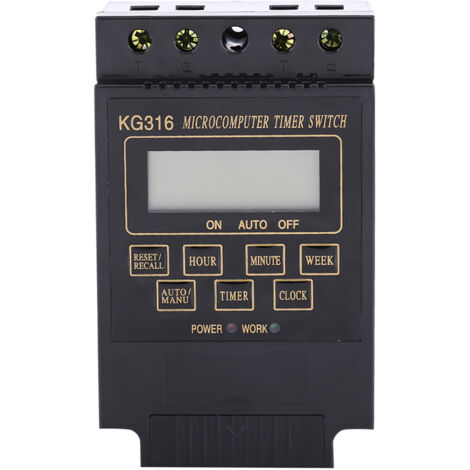

Minuteur Numérique LCD à Programmation Micro-ordinateur (AC220V) - Interrupteur Horloge

1、This timer switch could automatic turn on/off all kinds of electric equipment according to the time user set

2、The 110V timer switch has a inbuilt battery for storing data, and 220V timer switch uses 1 AA battery(not included)

3、Repeat programs with 10 ON and 10 OFF settings, and the timing bound is from 1 minutes to 168 hours

4、The time switch setting time can be cycled by days or week

5、The timer switch is great for controlling street lamps, neon lamps, production equipment, radio and television and many other industry or home appliances

Description:

This

timer switch could automatic turn on/off all kinds of electric

equipment according to the time user set. With high precision and strong

anti-interference ability, the timer switch is great for controlling

street lamps, neon lamps, production equipment, radio and television and

many other home appliances.

Features:

This

timer switch could automatic turn on/off all kinds of electric

equipment according to the time user set.

The 110V timer switch has a inbuilt battery for storing data, and 220V timer switch uses 1 AA battery(not included).

Repeat programs with 10 ON and 10 OFF settings, and the timing bound is from 1 minutes to 168 hours.

The time switch setting time can be cycled by days or week.

The timer switch is great for controlling

street lamps, neon lamps, production equipment, radio and television and

many other industry or home appliances.

Specifications:

Input Voltage: AC110V, AC220V(Optional)

Contact Voltage Rating: 180V to 240V

Switch Load Capacity: 10A(resistive), 10A(inductive)

Power: <1W

On/Off Operation: 10 on and 10 off(manual/auto)

Timing Bound: 1 min to 168 hours

Operation Temperature: -20℃ to 60℃

Humidity: <95%

Error: <0.5s/day

Battery(for 220V): 1 AA battery (not included)

Size: 120 x 74 x 51mm / 4.72 x 2.91 x 2"

Instruction:

NO. 1, Set Clock(present time):

Press and hold "CLOCK" button then press "WEEK",

"HOUR" and "MINUTE" buttons.

NO. 2, Set "1 on": Press "TIMER"

button and LCD displays "1 on" at the bottom left. Then press

"HOUR" and "MINUTE" buttons to set "1 on".

NO. 3, Set "1 off":

Continue to press "TIMER" button and LCD displays "1 off"

at the bottom left. Then press "HOUR" and "MINUTE" buttons

to set "1 off".

NO. 4, Continue to press the

"TIMER" button (LCD successively displays "2 on", "2

off", "3 on", "3 off"... ... "10 on",

"10 off") so you can set them all. If you only need "1 on",

"1 off", you must press the "TIMER" button (LCD

successively displays "2 on", "2 off", "3 on",

"3 off"... ... "10 on", "10 off") and press

"RESET/RECALL" button to set all other "on" and

"off" as "-- : --" instead of "00:00" (shown on

the LCD).

NO. 5, After setting, press

"CLOCK" button so LCD displays present time. Or if no button was

pressed in 30 seconds, it will automatically display present time.

NO. 6, When connected to circuit,

the red light indicates if the circuit is powered and the green light indicates

if the switch is closed.

NO. 7, Press the "AUTU/MANU"

to connect or disconnect circuit directly.Press "AUTU/MANU" button till the LCD displays

"off" at the bottom, and then press "AUTU/MANU" button

again to set back to "Auto".

NO. 8, Press "TIMER"

button, and then press "WEEK" to set which day or days each week you

need the switch to work such as (Mon, Wed, Fri) or (Tue, Thur, Sat), (Mon, Tue,

Wed) or (Thur, Fri, Sat), (Mon to Fri) and (Sat, Sun), etc.

Wiring:

Picture 1. Direct control wiring is for single-phase powered electrical appliances with lower power

consumption than load capacity of this switch.

Picture 2. Single phase expansion

wiring is for single-phase powered

electrical appliances with higher power consumption than load capacity of this

switch. You will need an alternating current contactor with more capacity than

the electric power consumption to expand capacity.

Picture 3. Three-phase wiring is

for three-phase electrical appliances, with a AC220V, 50Hz control contactor

coil voltage, you will need a external three-phase AC contactor.

Picture 4. Three-phase wiring is

for three-phase electrical appliances, with a AC380V, 50Hz control contactor

coil voltage, you will need a external three-phase AC contactor.

Package Includes:

1 x Timer Switch

Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
