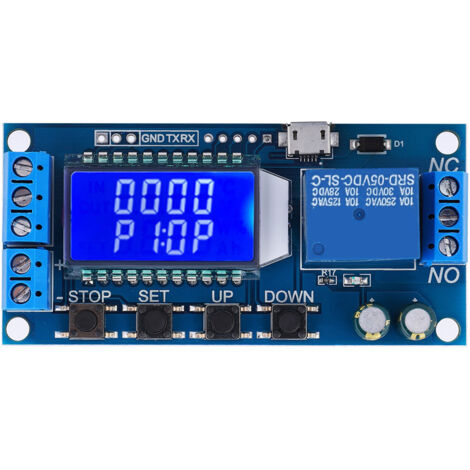

Minuterie à Relais Temporisé 5V 12V 24V avec Affichage LCD, Délai de 0.01s à 9999min pour Cycle ON/OFF

1、1. With LCD display screen, the current mode and parameters are clear at a glance.

2、2. Support high or low level trigger, switch quantity control, suitable for most applications.

3、3. Wide power supply voltage 6~30V, support micro USB 5.0V power supply, very convenient to use.

4、4. Support UART data upload and parameter setting.

5、5. One button emergency stop function (STOP button), with reverse connection protection.

Features:

1. With LCD display screen, the current mode and parameters are clear at a glance.

2. Support high or low level trigger, switch quantity control, suitable for most applications.

3. Wide power supply voltage 6~30V, support micro USB 5.0V power supply, very convenient to use.

4. Support UART data upload and parameter setting.

5. One button emergency stop function (STOP button), with reverse connection protection.

6. Add sleep mode, after enabling, no operation within 5 minutes, automatically turn off the LCD backlight, any buttons wakes up the screen.

7. Different 0P, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.

8. Automatically save all parameter settings when power failure.

9. Industrial grade circuit board, with optocoupler isolation to enhance anti-interference ability.

Specification:

Item Type: Delay Relay Module

Working Voltage: 6--30V

Timing Range: 0.01s-9999min continuously adjustable

Trigger Signal Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch)

Output Capability: Can control devices within 30V 5A or within 220V 5A

Quiescent Current: 15mA

Operating Current: 50mA

Service Life: >100,000 times

Working Temperature: -40~85°C

Size: 88x3.8x1.9cm / 3.15x1.5x0.75in

How to Choose Timing Range:

In the OP/CL parameter modification interface, short press the STOP button to select the timing range:

XXXX: Timing range is 1s~9999s

XXX.X: Timing range is 0.1s 999.9s

XX.XX: Timing range is 0.01s to 99.99s

X.X.X.X: Timing range is 1min to 9999min

Parameter Setting:

Parameter Description: OP: Conduction time, CL: Disconnection time, LOP: Cycle number (1-9999 times, ''----'' means infinite loop)

a) Enter the setting interface by long pressing the SET button;

b) First set the working mode, the working mode flashes reminder, set the working mode by short pressing the UP/DOWN button;

c) Short press the SET button to select the working mode and enter the system parameter settings;

d) In the system parameter setting interface, short press the SET button to switch the system parameters to be modified, short press / long press the UP / DOWN button to modify;

(Note: Short press SET in P-1~p-3, P-7 mode);

e) In the OP/CL parameter modification interface, press STOP to switch the timing unit (1s/0.1s/0.01s/1min);

f) All parameters are set, press and hold the SET button to save the parameter settings and exit the setting interface;

Working Mode Description:

P1: After the signal is triggered, the relay turns on the OP time, then turns off; in the OP time, the signal is triggered again.

P2: After the signal is triggered, the relay turns on the OP time and then turns off; in the OP time, the signal triggers the re-count

P3: After the signal is triggered, the relay turns on the OP time and then turns off; in the OP time, the signal triggers the reset again, the relay is disconnected, and the timing is stopped.

P4: After the trigger signal is given, the relay turns on the OP time after the relay is turned off, and the relay is turned off after the timing is completed;

P5: Give the trigger signal, after the relay turns on the OP time, the relay turns off the CL time, then loops the above action, the signal is given again in the cycle, the relay is disconnected, the timing is stopped; the number of cycles (LOP) can be set;

P6: no trigger signal is required after power-on, the relay turns on OP time, the relay turns off CL time, and the above action is cycled; the number of cycles (LOP) can be set;

P7: Signal hold function If there is a trigger signal, the timing is cleared, the relay remains on; when the signal disappears, the relay is turned off after timing OP; during the timing, there is a signal and the timing is cleared;

Additional Function:

a) Auto sleep function: In the running interface, press or hold the STOP button to activate or deactivate the auto sleep function (L-P select on to start the sleep function, off to turn off the sleep function);

b) Relay function selection: In the operation interface, the relay function is activated or deactivated by short pressing the STOP button, 'on' meets the conduction condition, the relay is normally turned on, and 'OFF' meets the conduction condition, and the relay is not turned on; 'OFF' In the state, the system flashes 'OUT';

c) Parameter view: In the running interface, short press the SET button to display the current parameter settings of the system, which does not affect the normal operation of the system;

d) Display content switching: In P-5 P-6 mode, switch the display content (run time/cycle number) by short pressing the DOWN button;

Package List:

1 x Delay Relay Module
