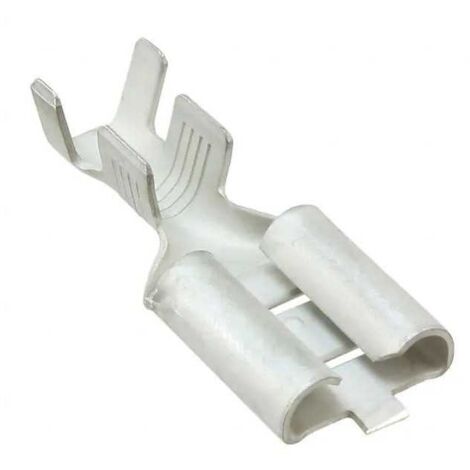

Fiche à sertir Femelle 10 - 7 AWG 9.53 x 1.19mm
Vous achetez pour votre entreprise ?
Tarifs négociés HT jusqu'à -20%
Produit similaire livré par
Oc-Pro – Cosse de batterie coupe circuit antivol – Installation facile sur borne négative – Pour véhicules de collection et camping-cars
13,45 €
203
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 15056
Code Producteur: 280223-2
Producteur: TE/Connectivity
Prix au 20 pièces
Remarque: Quantité 1 correspond à 20 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 60 pièces
Product Type Features
- Terminates To: Wire & Cable
- FASTON: Yes
- Insulated: No
- Wire/Cable Type: Discrete Wire
- Wire Stop: No
- Wire/Cable Composition: Stranded
Configuration Features
- Connection Capacity: Single
Body Features
- Fully Insulated: No
- Plating Material: Tin
- Plating Thickness(µm): 1
Contact Features
- Terminal & Splice Style: Receptacle
- Terminal Type: Receptacle
- Terminal Orientation: Straight
- Barrel Type: Open
- Contact Base Material: Brass
- Crimp Type: F-Crimp
Mechanical Attachment
- Wire Insulation Support: With
- Mating Retention Type: Dimple
Dimensions
- Wire Size?(AWG): 11 – 9
- Wire Size?(mm²): 4 – 6.63
- Mating Tab Width: 9.53 mm [ 0.375 in ]
- Mating Tab Thickness: 1.2 mm [ 0.047 in ]
- Accepts Wire Insulation Diameter Range : 3.81 – 5.08 mm [ 0.15 – 0.2 in ]
- Receptacle Stock Thickness: 0.51 mm [ 0.02 in]
- Wire Insulation Diameter (Max): 5.08 mm [ 0.2 in ]
- Overall Length: 27.2 mm [ 1.07 in ]
Industry Standards
- CSA Certified: Yes
- UL Rating: Listed
Scheda Tecnica
Type de produit: Borne Faston mâle et femelle
Matériel de contact: Laiton étamé
Montage: Sur câble
Câble range: 11 - 9 AWG
Genre: Femelle
Orientation: 180°
Plaquage du contact: étain
Isolement: Non
Mesurage: 9.53x1.19mm
Code Producteur: 280223-2
Producteur: TE/Connectivity
Prix au 20 pièces
Remarque: Quantité 1 correspond à 20 pièces
Exemple: Si vous achetez 3 quantités, vous recevrez 60 pièces
Product Type Features
- Terminates To: Wire & Cable
- FASTON: Yes
- Insulated: No
- Wire/Cable Type: Discrete Wire
- Wire Stop: No
- Wire/Cable Composition: Stranded
Configuration Features
- Connection Capacity: Single
Body Features
- Fully Insulated: No
- Plating Material: Tin
- Plating Thickness(µm): 1
Contact Features
- Terminal & Splice Style: Receptacle
- Terminal Type: Receptacle
- Terminal Orientation: Straight
- Barrel Type: Open
- Contact Base Material: Brass
- Crimp Type: F-Crimp
Mechanical Attachment
- Wire Insulation Support: With
- Mating Retention Type: Dimple
Dimensions
- Wire Size?(AWG): 11 – 9
- Wire Size?(mm²): 4 – 6.63
- Mating Tab Width: 9.53 mm [ 0.375 in ]
- Mating Tab Thickness: 1.2 mm [ 0.047 in ]
- Accepts Wire Insulation Diameter Range : 3.81 – 5.08 mm [ 0.15 – 0.2 in ]
- Receptacle Stock Thickness: 0.51 mm [ 0.02 in]
- Wire Insulation Diameter (Max): 5.08 mm [ 0.2 in ]
- Overall Length: 27.2 mm [ 1.07 in ]
Industry Standards
- CSA Certified: Yes
- UL Rating: Listed
Scheda Tecnica
Type de produit: Borne Faston mâle et femelle
Matériel de contact: Laiton étamé
Montage: Sur câble
Câble range: 11 - 9 AWG
Genre: Femelle
Orientation: 180°
Plaquage du contact: étain
Isolement: Non
Mesurage: 9.53x1.19mm
Caractéristiques
- MarqueTE CONNECTIVITY
- Quantité par pack20
- Configuration raccordFemelle
- CouleurGris clair
- Largeur9.5 mm
- Longueur27.2 mm
- MatièresLaiton
- Poids40 g
- Réf. ManoManoME4534419
- MMID952568519373
- Réf. fabricant280223-2
