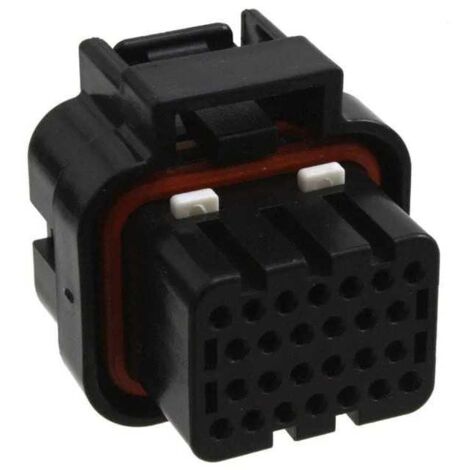

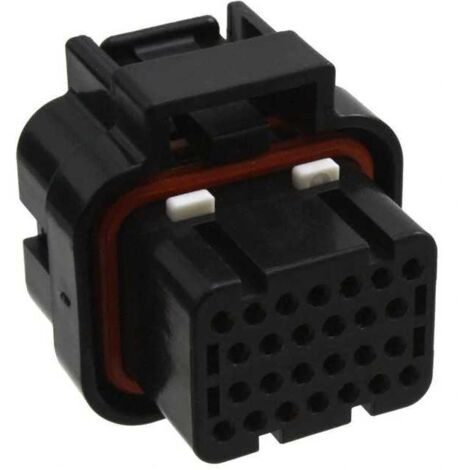

Connecteur Superseal 1.0 mâle 26 Voies Cod 2
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 57096
Code Producteur: Cross Reference 3-1437290-8
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Vendu au pièce
Product type characteristics
Connector and housing type: Housing for female terminals
Connector System: Wire to board, wire to device
Sealable : Yes
Hybrid connector : No
Primary locking feature : Integrated into housing
Configuration Features
Number of Positions : 26
Number of Rows : 4
Electrical Characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Rated voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Housing characteristics
Body material: PBT GF
Cable exit angle: 180
Primary product colour: Black
Contact characteristics
Coupling pin diameter: 1 mm [ .039 in ]
Mechanical connection
Type of mating alignment: Polarised
Strain Relief : No
End position guarantee : Yes
Mounting Characteristic : Without
Housing characteristics
Centerline (Pitch) : 3 mm [ .118 in ]
Dimensions
Row-to-row spacing : 3 mm [ .118 in ]
Product height: 34.55 mm [ 1.36 in ]
Product length: 32.15 mm [ 1.266 in ]
Product width: 32.2 mm [ 1.268 in ]
Operating conditions
Operating temperature (max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max.) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range (°C): -40 - 125, -40 - 125
Operating temperature range (°F): -40 - 257, -40 - 257
Industry standards
UL flammability rating: UL 94V-2
Degree of protection: JIS D0203
Code Producteur: Cross Reference 3-1437290-8
Producteur: Cross Reference TE/Connectivity
Remarque : l'article est une reproduction de l'original, veuillez nous contacter pour plus d'informations.
Vendu au pièce
Product type characteristics
Connector and housing type: Housing for female terminals
Connector System: Wire to board, wire to device
Sealable : Yes
Hybrid connector : No
Primary locking feature : Integrated into housing
Configuration Features
Number of Positions : 26
Number of Rows : 4
Electrical Characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Rated voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Housing characteristics
Body material: PBT GF
Cable exit angle: 180
Primary product colour: Black
Contact characteristics
Coupling pin diameter: 1 mm [ .039 in ]
Mechanical connection
Type of mating alignment: Polarised
Strain Relief : No
End position guarantee : Yes
Mounting Characteristic : Without
Housing characteristics
Centerline (Pitch) : 3 mm [ .118 in ]
Dimensions
Row-to-row spacing : 3 mm [ .118 in ]
Product height: 34.55 mm [ 1.36 in ]
Product length: 32.15 mm [ 1.266 in ]
Product width: 32.2 mm [ 1.268 in ]
Operating conditions
Operating temperature (max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max.) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range (°C): -40 - 125, -40 - 125
Operating temperature range (°F): -40 - 257, -40 - 257
Industry standards
UL flammability rating: UL 94V-2
Degree of protection: JIS D0203
Caractéristiques
- MarqueERREBI GROUP
- Hauteur3.45 cm
- Longueur3.22 cm
- Quantité par pack1
- Tension électrique250 V
- Type de port connectiqueConnexion
- Réf. ManoManoME49014179
- MMID957871185926
- Réf. fabricant3-1437290-8
