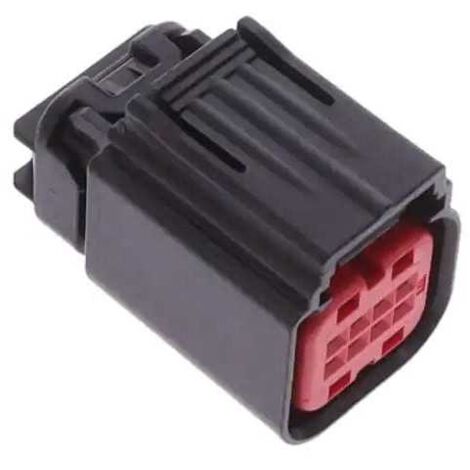

Connecteur Series Get.64 Mâle 2x4 Voies noir
Produit similaire livré par
Sjlerst – Adaptateur répartiteur RJ45 1 à 2 ports – Câble réseau CAT8 plaqué or – Connexion Ethernet pour bureau et domicile
10,45 €
81
Vendu par Errebi shop
Ces articles peuvent vous intéresser !
Comparer à des articles similaires
Souvent achetés ensemble
Informations produit
Description
Code ErreBi: 57903
Code Producteur: 1411001-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable to board, cable to device, cable to cable
Number of positions: 8
Number of lines: 2
Empty cavity position: 5
Characteristics of the body
Body material: PA GF
Cable exit angle: 180 °
Main product color: black
Housing features
Center line (pitch): 2.54mm
Dimensions
Product height: 19.6mm
Product length: 31.4mm
Product Width: 24.5mm
Terms of use
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range: -40 - 125 ° C [-40 - 257 ° F]
Degree of protection: IP67
Code Producteur: 1411001-1
Producteur: TE/Connectivity
Vendu au pièce
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable to board, cable to device, cable to cable
Number of positions: 8
Number of lines: 2
Empty cavity position: 5
Characteristics of the body
Body material: PA GF
Cable exit angle: 180 °
Main product color: black
Housing features
Center line (pitch): 2.54mm
Dimensions
Product height: 19.6mm
Product length: 31.4mm
Product Width: 24.5mm
Terms of use
Operating temperature (max) (° C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating temperature (max) (° F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating temperature range: -40 - 125 ° C [-40 - 257 ° F]
Degree of protection: IP67
Caractéristiques
- MarqueTE CONNECTIVITY
- Hauteur1.96 cm
- Indice de protectionIP67
- Longueur3.14 cm
- MatièresPolyamide (Pa)
- Nombre de pôle(s)8
- Poids7.1 g
- Quantité par pack1
- Type de cable audio & vidéoCoaxial
- Type de port connectiqueConnexion
- Réf. ManoManoME49014804
- MMID429722598841
- Réf. fabricant1411001-1
